Ignition Control Module: Locations

Distributor, Exploded View:

CENTRIFUGAL ADVANCE:
Located inside distributor, under breaker plate

DISTRIBUTOR:
Located on rear of cylinder head

Behind Center Console:

ELECTRONIC CONTROL UNIT (ECU):
Located under center of dash

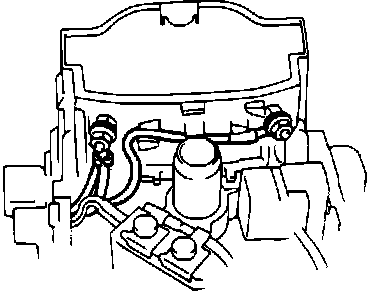

Igniter Assembly:

IGNITER:
Located inside the distributor

Ignition Coil:

IGNITION COIL:
Located inside the distributor

Pickup Coil Air Gap:

SIGNAL GENERATOR (PICKUP COILS):
Located inside distributor

SPARK PLUGS:
Located in side of cylinder head

Fig. 40a Connecting Tachometer:

TACHOMETER CONNECTOR:
Located near distributor

VACUUM ADVANCE CONTROLS:
Located on side of distributor
