Home >> Toyota >> 1989 >> Tercel Hatchback L4-1456cc 1.5L SOHC (3E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> System Diagram

System Diagram

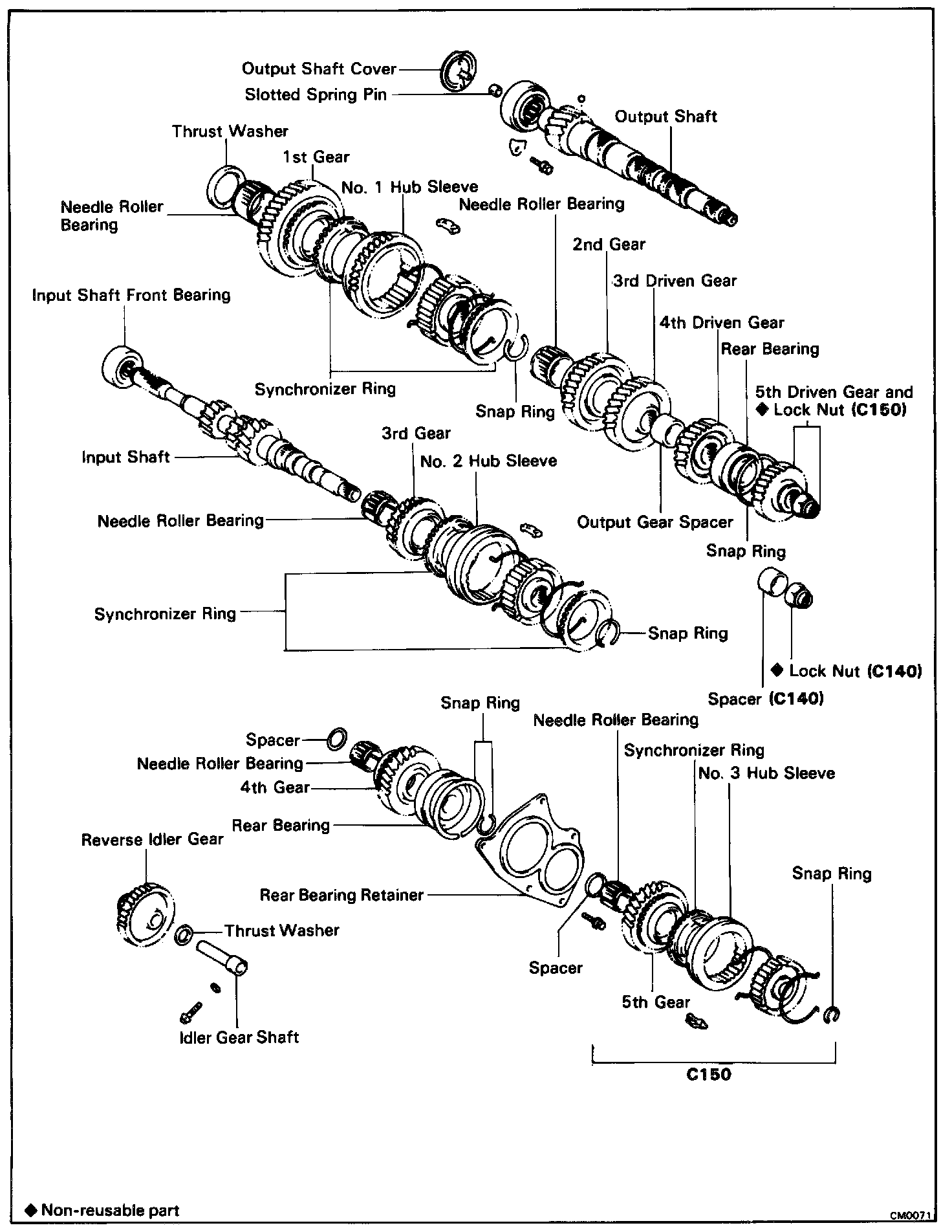

Part 1:

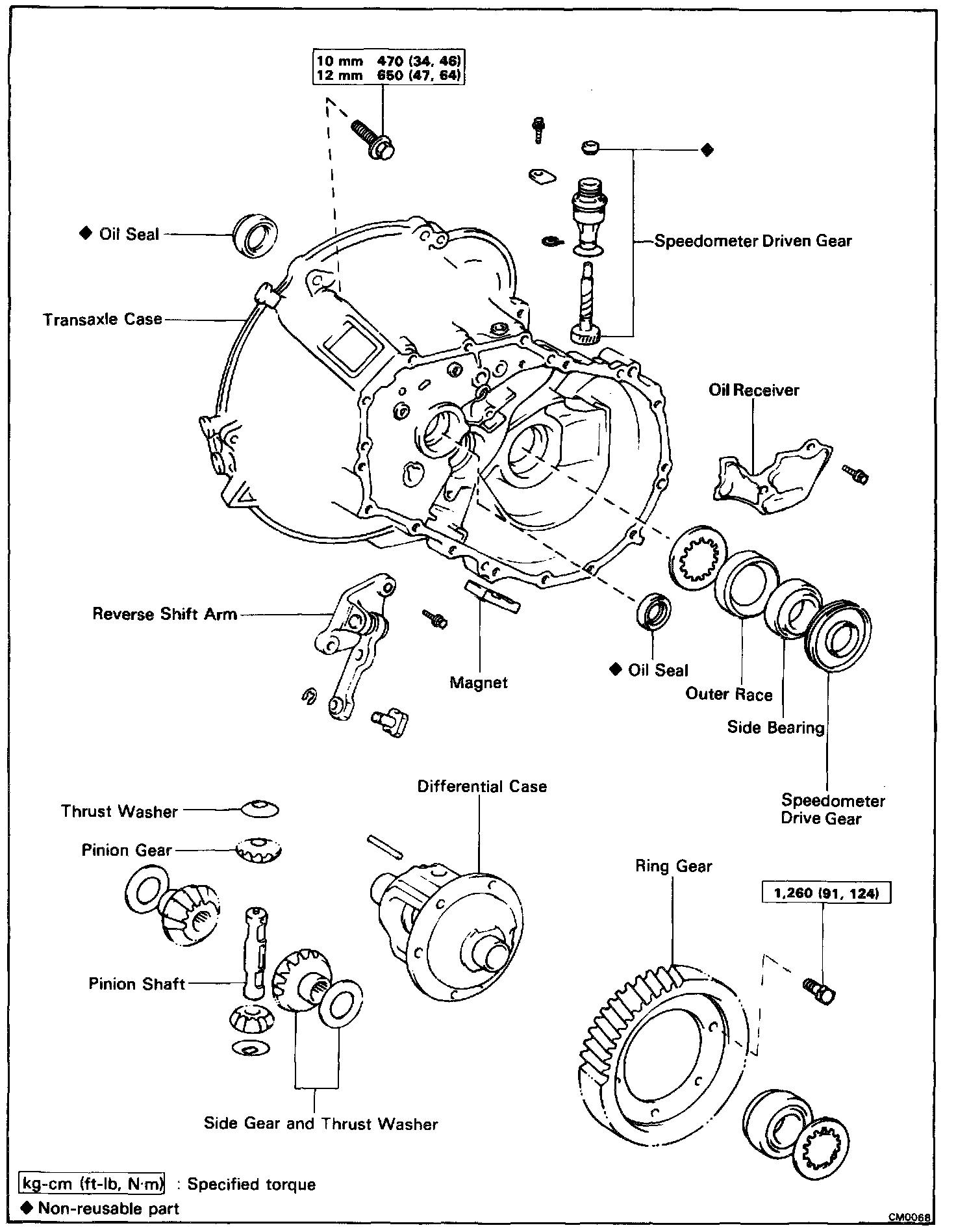

Part 2:

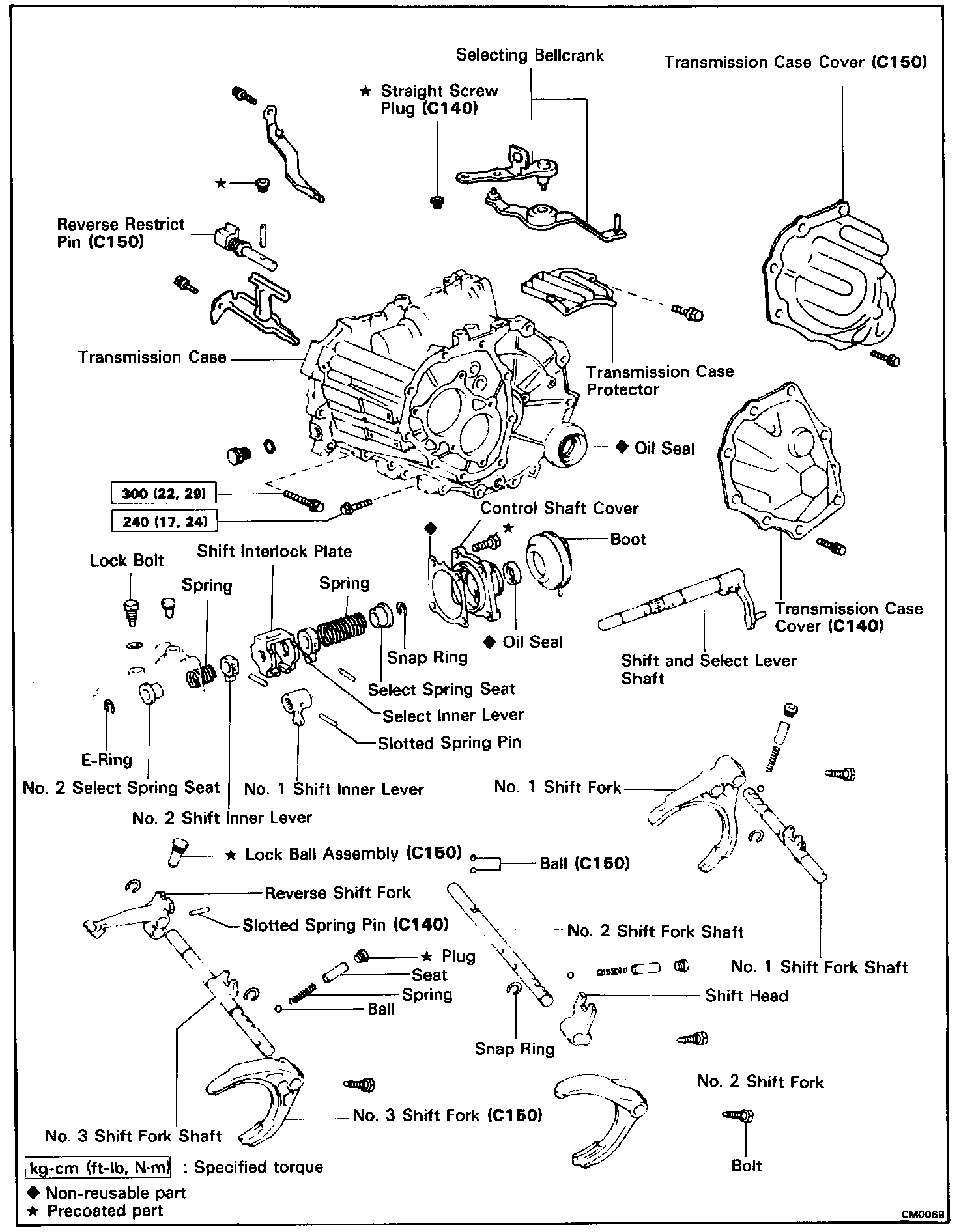

Part 3:
