Front Wiper & Washer Switch
Front Wiper & Washer Switch

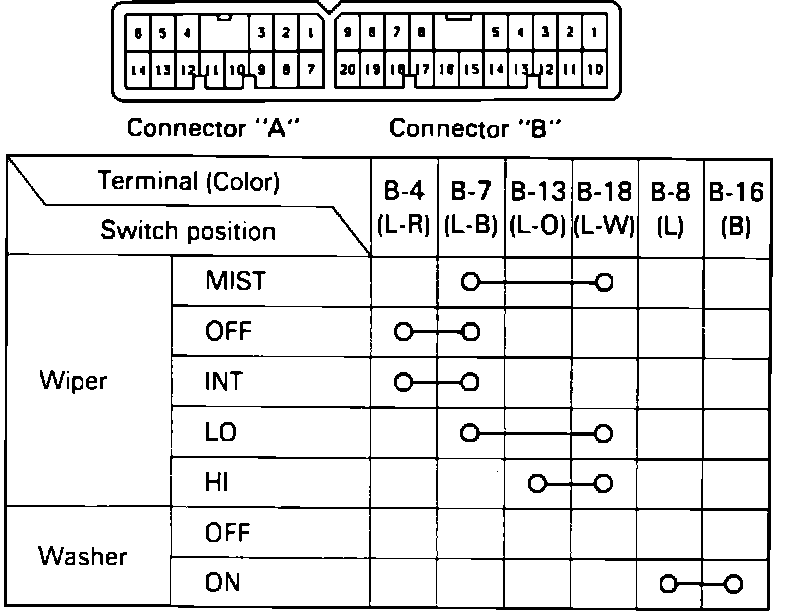

Fig. 1 Front Wiper & Washer Switch Inspection.:
1.
Using suitable ohmmeter, inspect continuity between terminals,
Fig. 1.
2.
If continuity is not as indicated, replace switch.
