Drivetrain - Front Axle Hub Bearing Knocking Noise
89toyota10REFERENCE SUSPENSION
NUMBER 004
DATE 10-06-89
MODEL AE9, EL3, SV2,
VV2
TITLE FRONT AXLE HUB BEARING
To reduce the possibility of a knocking noise from the front axle hub bearings when driving on rough roads at low speeds, the front axle hub bearing and steering knuckle nut have been changed.
REPAIR (INSTALLATION) PROCEDURE:
1) If a knocking noise is heard, replace the front axle hub bearing and the steering knuckle nut as a set (reference applicable repair manual for detailed information).
2) Tightening torque for the steering knuckle nut is:
203 ft.lb. (2,800 kg cm)

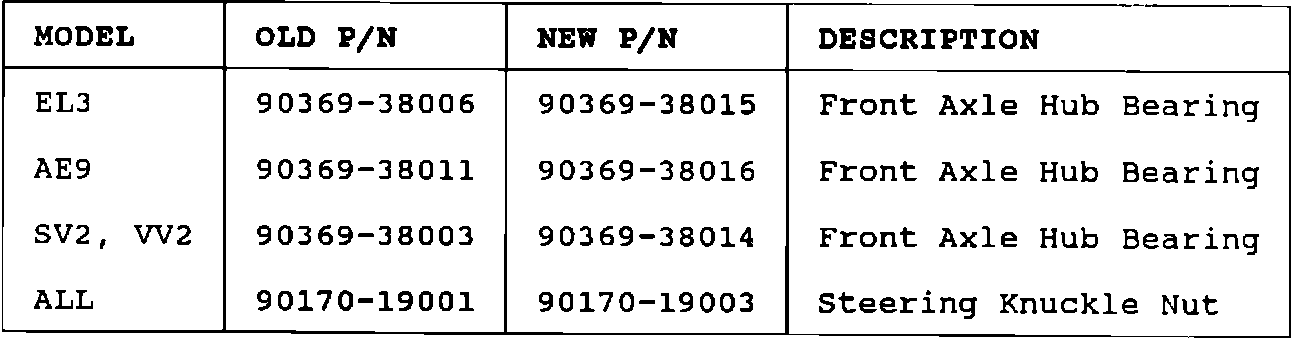

PART NUMBER INFORMATION:
Replace the front axle hub bearing and the steering knuckle nut as a set.
