Shifter M/T: Testing and Inspection

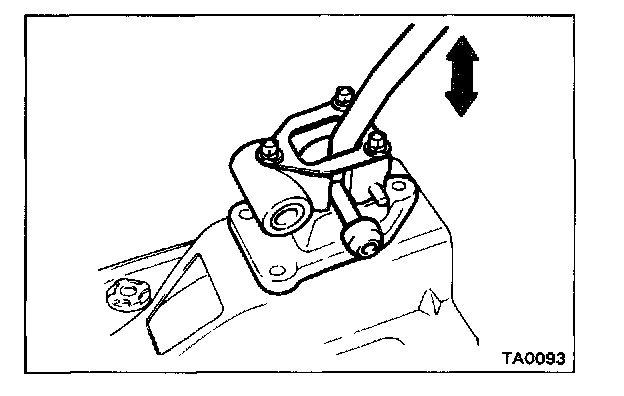

INSPECT SHIFT LEVER PLAY
Check that the shift lever vertical play.
Maximum play:
0.15 mm (0.0059 in.)
If the play is greater than maximum, replace the bushing.
