Manual Transmission/Transaxle: Description and Operation

- Transaxle types C50 and C52 are constant mesh synchronizers for forward gears, and a sliding mesh reverse gear.
- The input shaft is composed of the 1st and 2nd speed gears and the reverse drive gear, and the output shaft is composed of the drive gear (for use with the ring gear).
- The oil is as follows: API GL-4 or GL-5; SAE 75W-90 or 80W-90

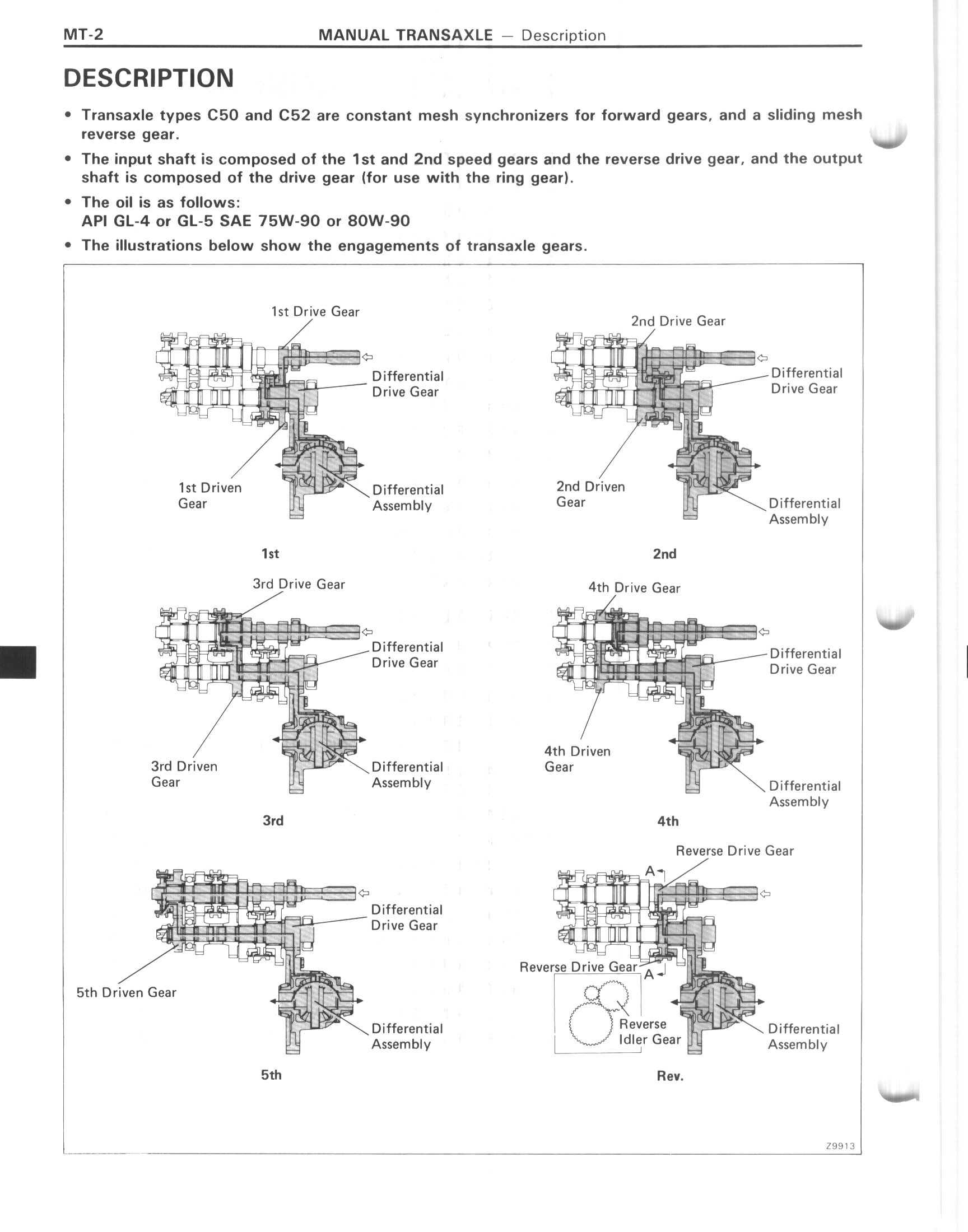

- The illustrations below show the engagements of transaxle gears.
