D/F Technical Data

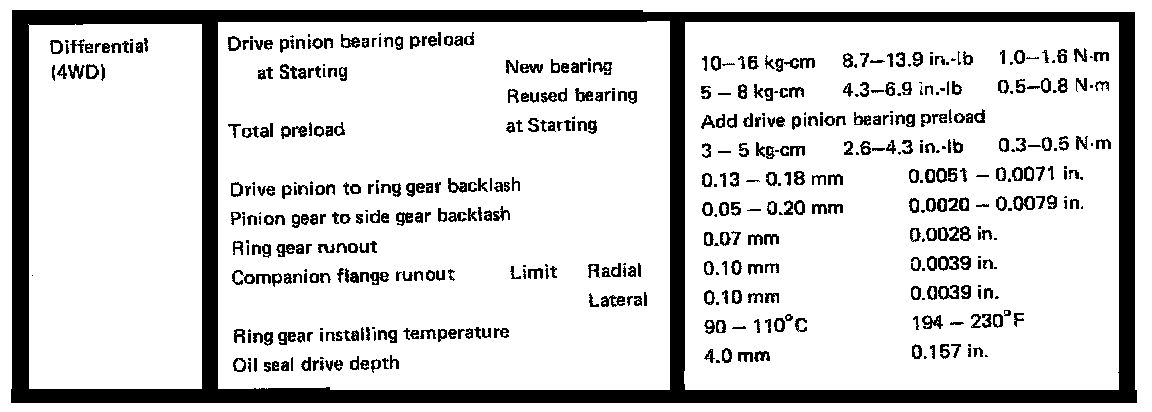

Rear Differential (4WD), Carrier Clearances:

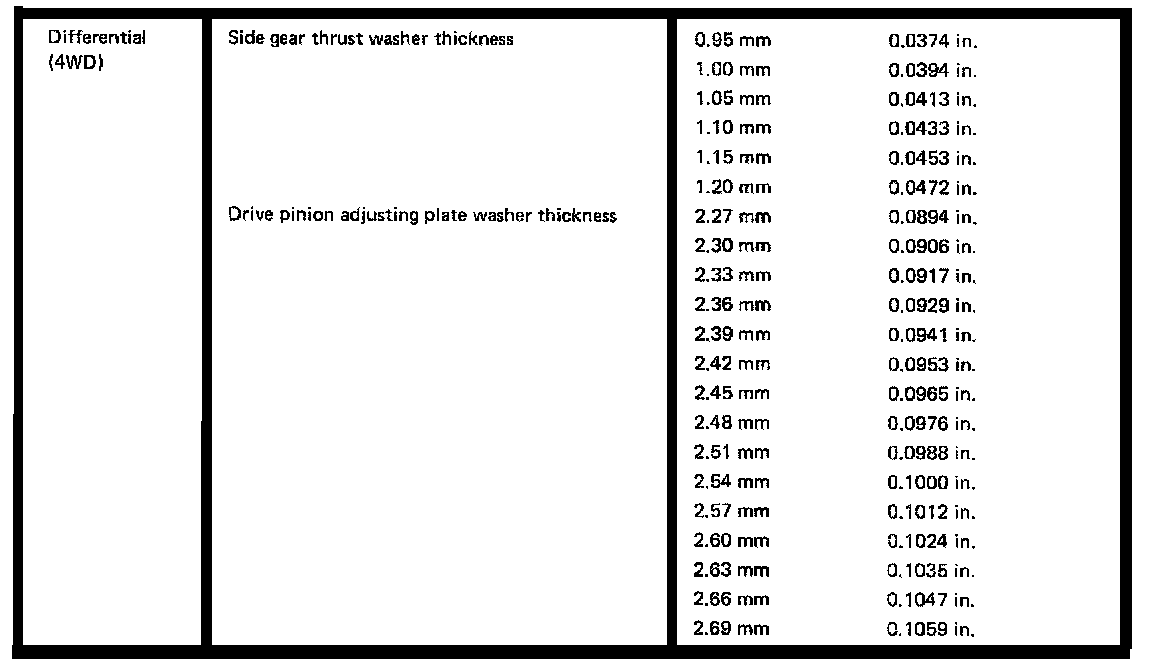

Rear Differential (4WD), Side Gear/Pinion Clearance:
