Torque Converter: Testing and Inspection
CLEAN TORQUE CONVERTERIf the transmission is contaminated, the torque converter and transmission cooler should be thoroughly flushed with ATF.
INSPECTION OF TORQUE CONVERTER
1. INSPECT ONE-WAY CLUTCH

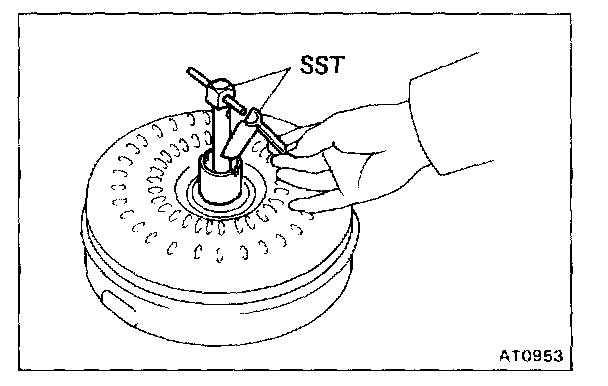

a. Insert SST in the inner race of the one-way clutch.
SST 09350 - 32014 (09351 - 32010)

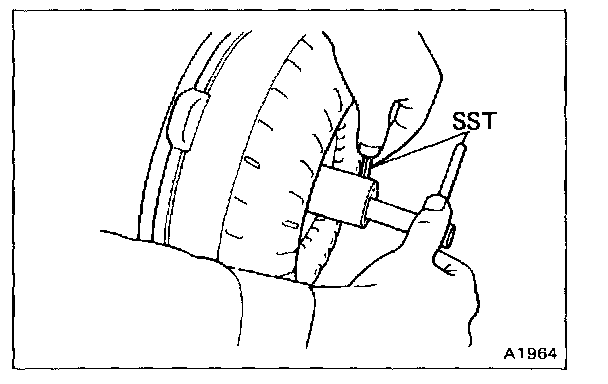

b. Install SST so that it fits in the notch of the converter hub and outer race of the one-way clutch.
SST 09350 - 32014 (09351 - 32020)
c. With the torque converter standing on its side, the clutch should lock when turned counterclockwise, and should rotate freely and smoothly clockwise.
If necessary, clean the converter and retest the clutch. Replace the converter if the clutch still fails the test.
2. MEASURE DRIVE PLATE RUNOUT AND INSPECT RING GEAR

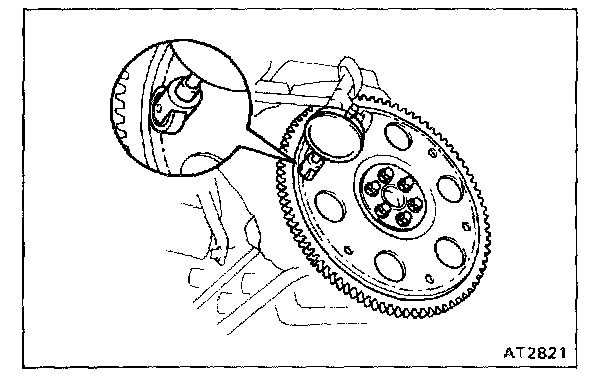

Set up a dial indicator and measure the drive plate runout. If runout exceeds 0.20 mm (0.0079 in.) or if the ring gear is damaged, replace the drive plate. if installing a new drive plate, note the orientation of the spacers and tighten the bolts.
Torque: 650 kg-cm (47 ft-lb, 64 N.m)
3. MEASURE TORQUE CONVERTER SLEEVE RUNOUT

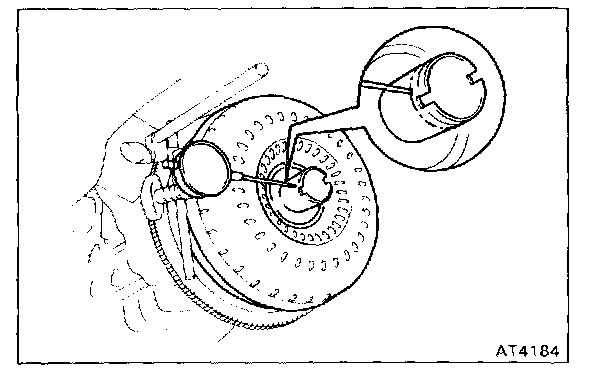

a. Temporarily mount the torque converter to the drive plate. Set up a dial indicator.
If runout exceeds 0.30 mm (0.0118 in.), try to correct it by reorienting the installation of the converter. If excessive runout cannot be corrected, replace the torque converter.
NOTE: Mark the position of the converter to ensure correct installation.
b. Remove the torque converter from the drive plate.
