Neutral Start Switch
INSPECT NEUTRAL START SWITCH

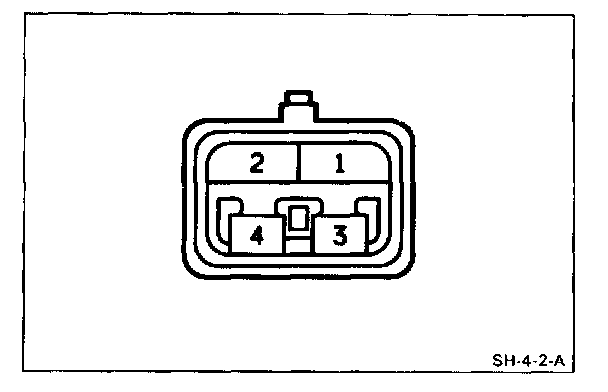

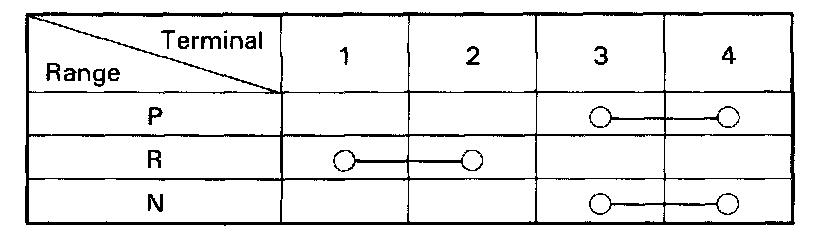

Using an ohmmeter, check the continuity of the terminals for each switch position shown in the table below.
If not, replace the switch.
