A/T - Counter Gear Noise

89toyota02

VOLUME TRANSMISSION &
REFERENCE CLUTCH
NUMBER 001

10 DATE 03-10-89
MODEL AE8 #, AE9 #, EL31
(FF)



TITLE: A130 SERIES A/TM COUNTER GEAR NOISE


To reduce Counter Gear noise on EL and AE models equipped with A130- series A/TM a new style counter Gear Kit has been made available.

New Style Counter Gear Design:

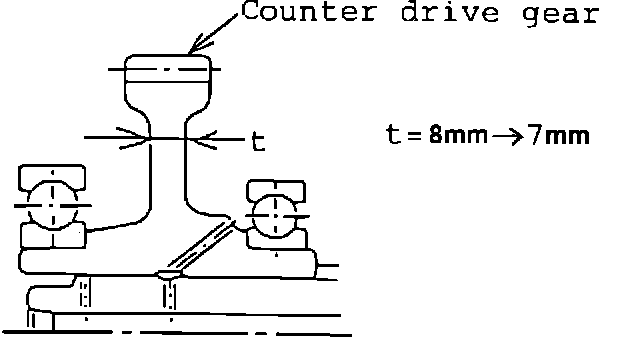

The thickness of the Counter Drive Gear has been decreased from 8 mm to 7 mm. (See Illustration)
Production Effective:

Trans. Number Production Date
A13 # L-HJ53728 September 7, 1988

Part Number Information:

Previous Part No. New Part No. Part Name
35097-12020 35097-12040* Counter Gear Kit
41231-12020 Same Spacer, Bearing
Refer to applicable Micro-fiche Gasket
90179-20004 Same Nut

* New parts are interchangeable with previous parts.
