A/T - Underdrive Gear Unit Part Standardization

89toyota10

TRANSMISSION &

REFERENCE CLUTCH
NUMBER 020
DATE 10-06-89
MODEL AE9#, AW1# with
A24# SERIES A/TM
TITLE A24# SERIES A/TM UNDERDRIVE GEAR UNIT

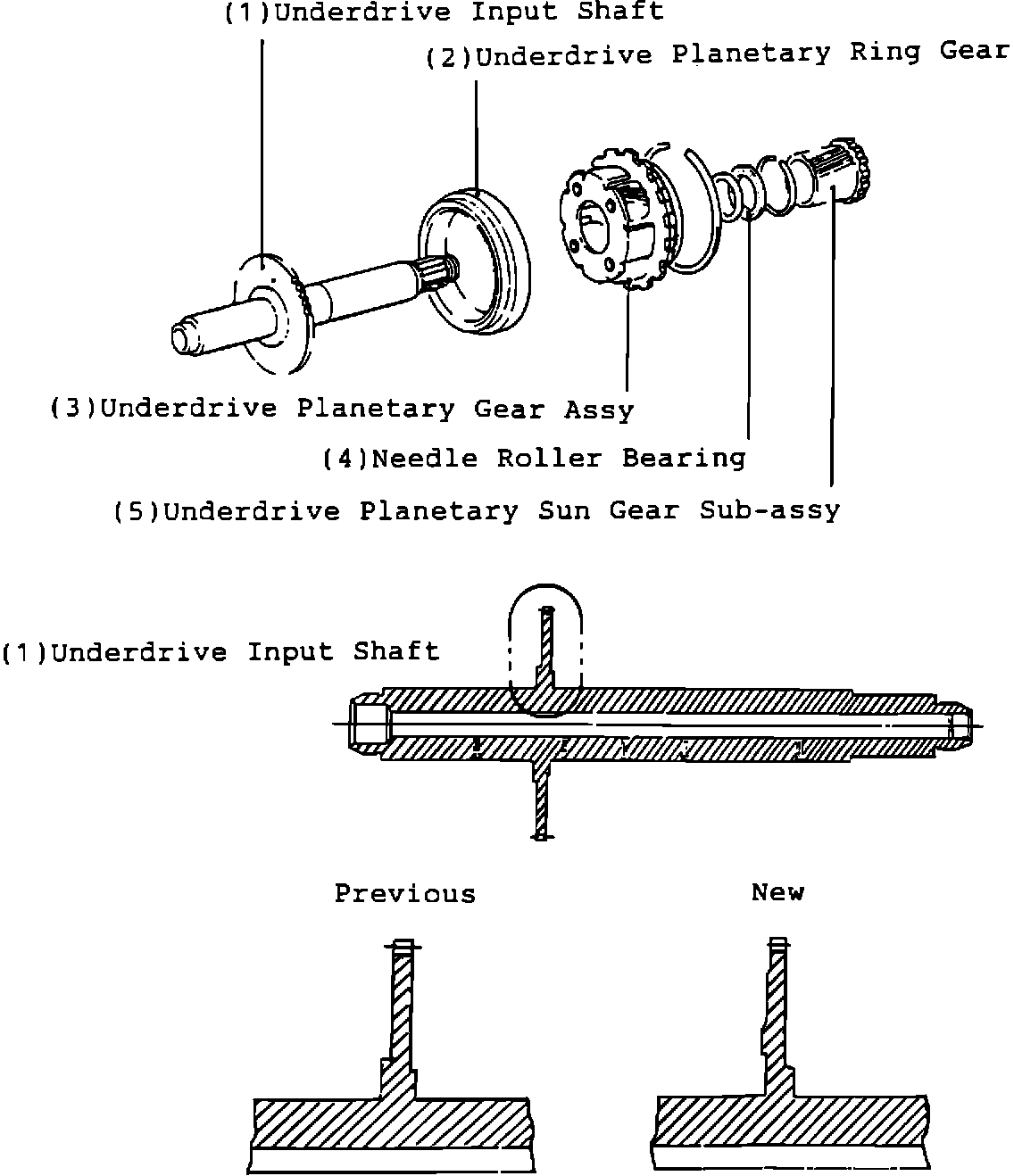

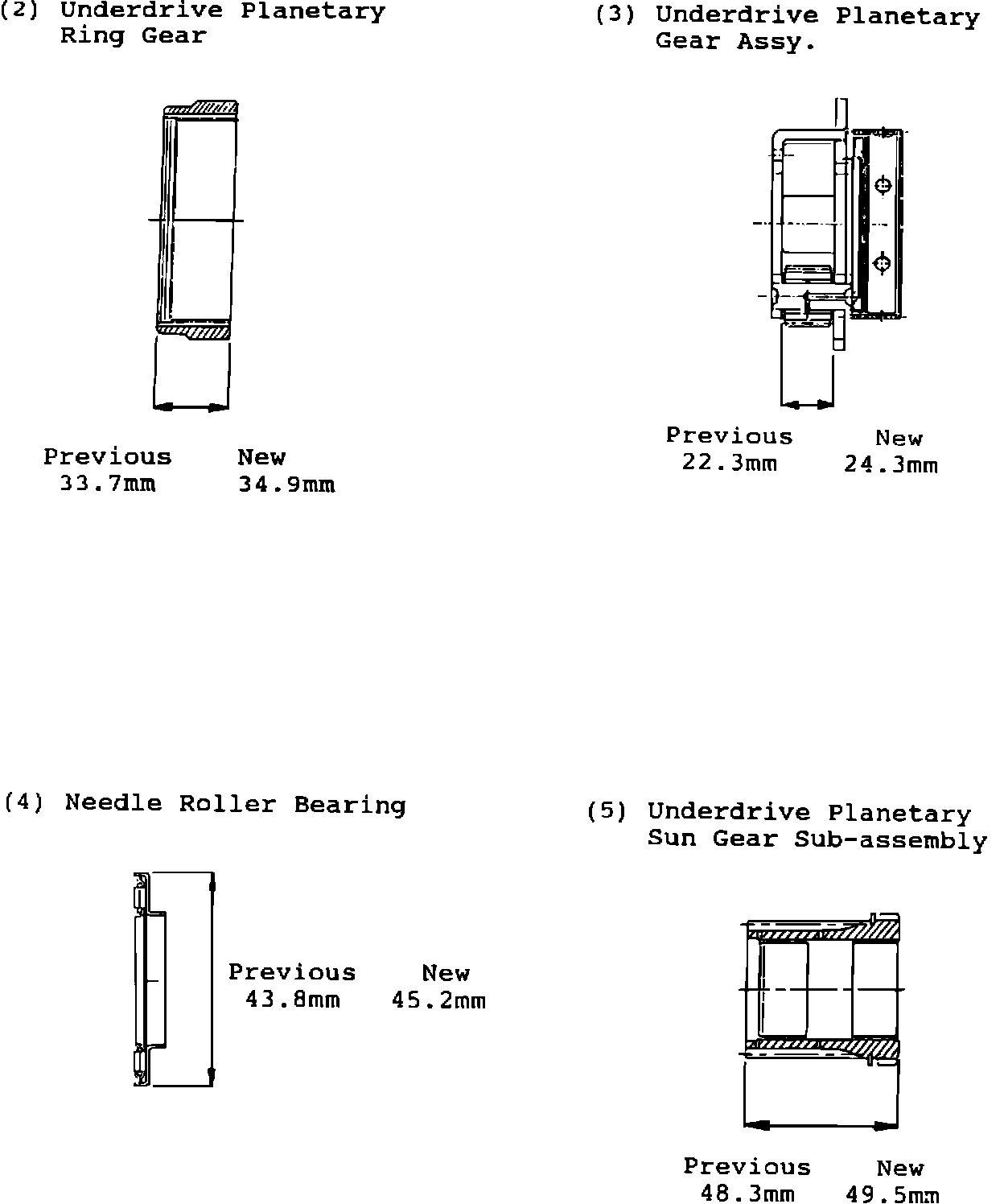

For parts standardization on the A24# series A/TM, the following modifications have been made to the Underdrive Gear Unit.

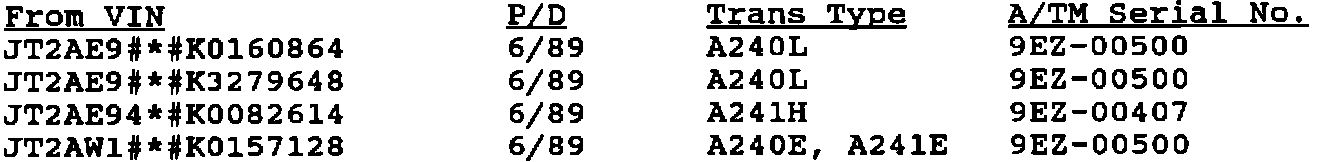

PRODUCTION EFFECTIVE:

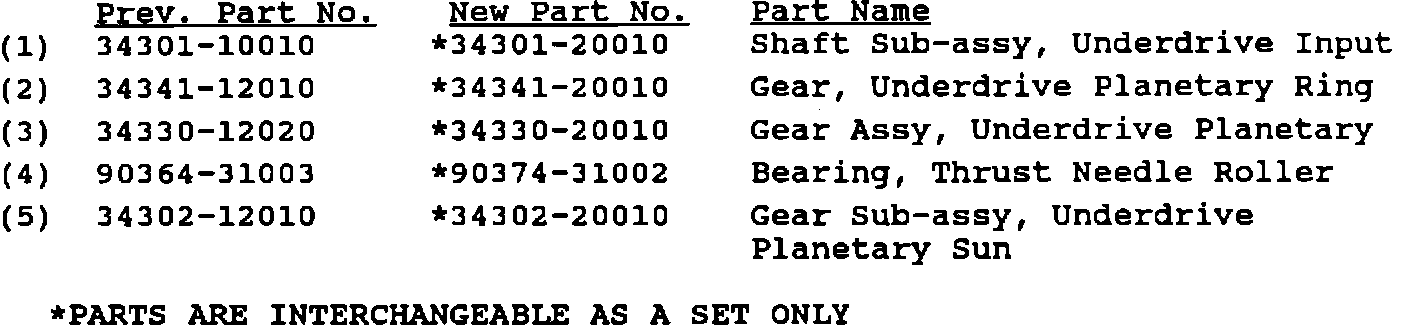

PART NUMBER INFORMATION:
