A/T - Serial Numbers/Identification

Ref.: TRANSMISSION & CLUTCH

No.: TC004-96

Date: DECEMBER 20, 1996

Model: ALL MODELS

Title: AUTOMATIC TRANSMISSION SERIAL NUMBERS

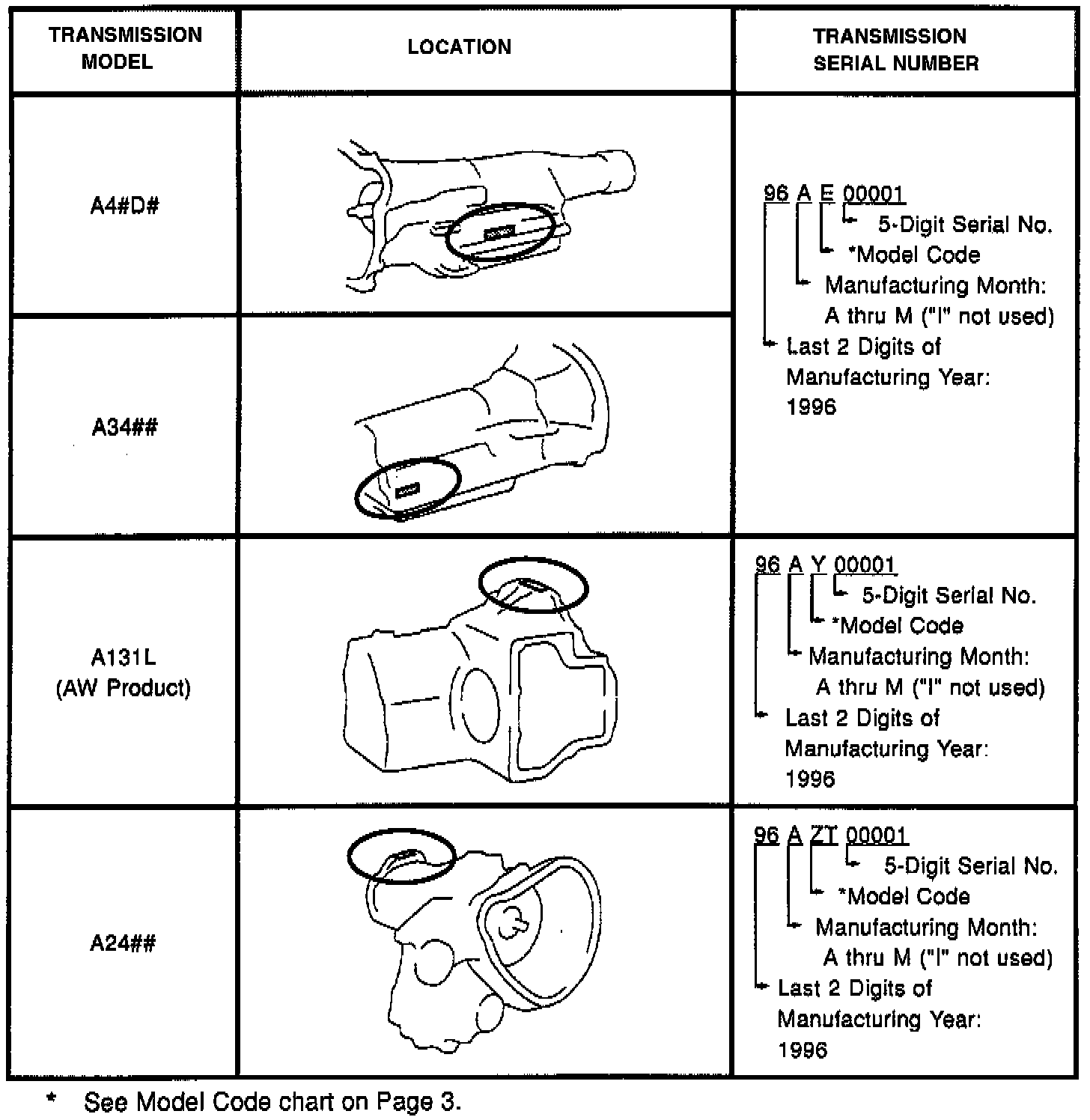

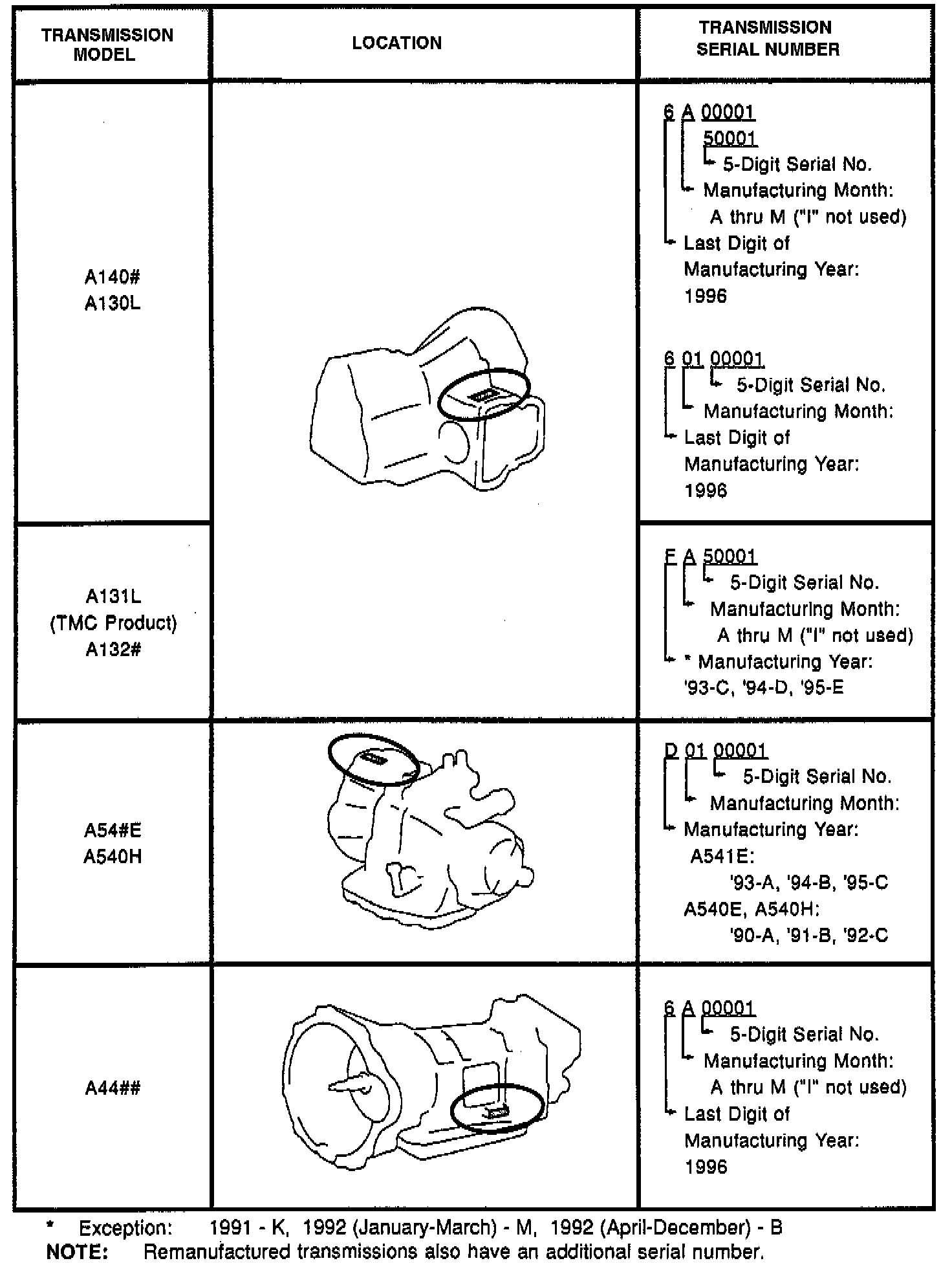

Use the tables to locate and read the original automatic transmission serial number.

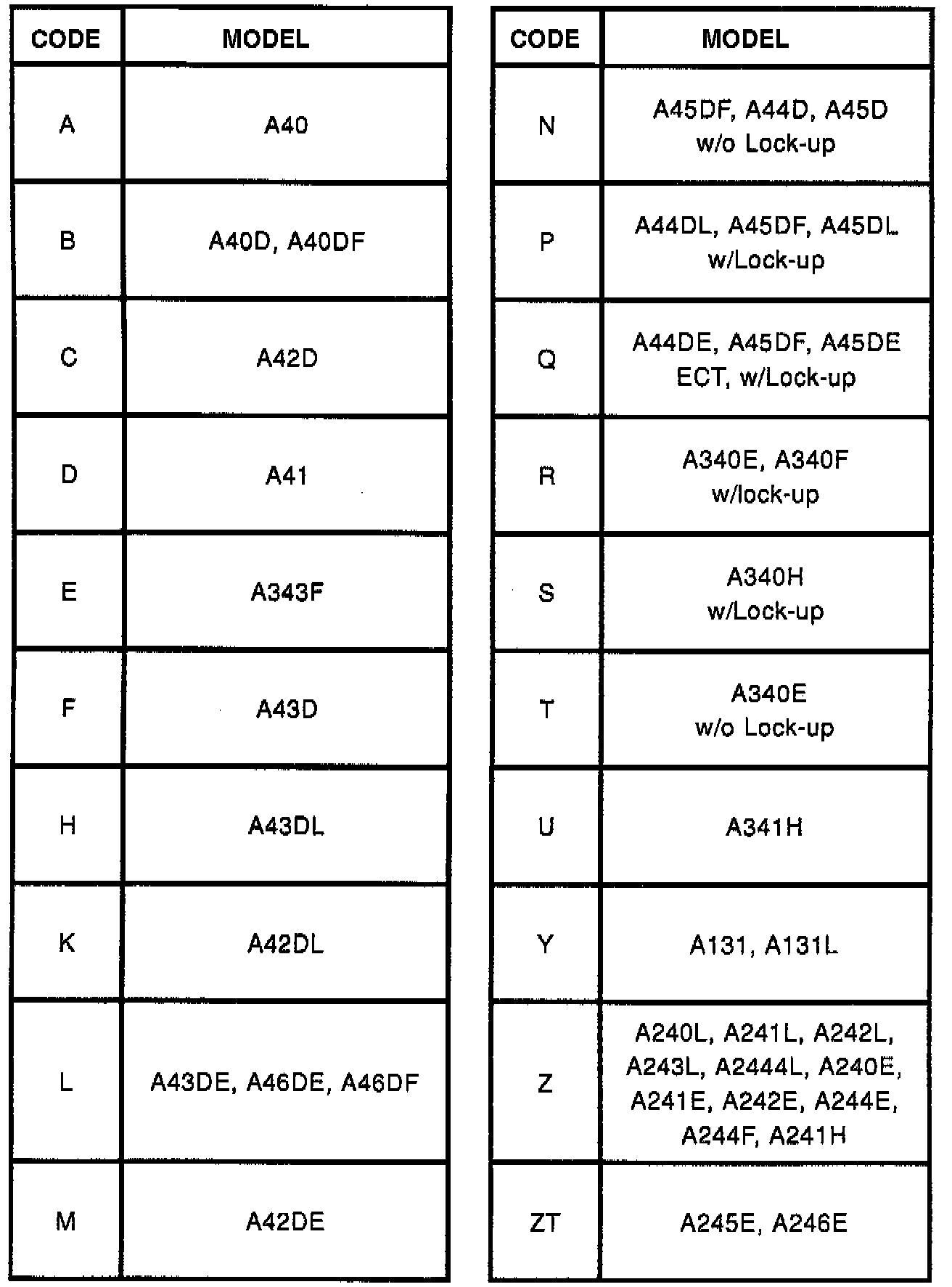

MODEL CODE CHART:
