A/T - Improved Shift Valve Plug And Straight Key

89toyota08 TRANSMISSION &
REFERENCE CLUTCH
NUMBER 015
DATE 09-01-89
MODEL AE w/A240 A/TM



TITLE A24OH/L A/TM IMPROVED SHIFT VALVE PLUG AND KEY

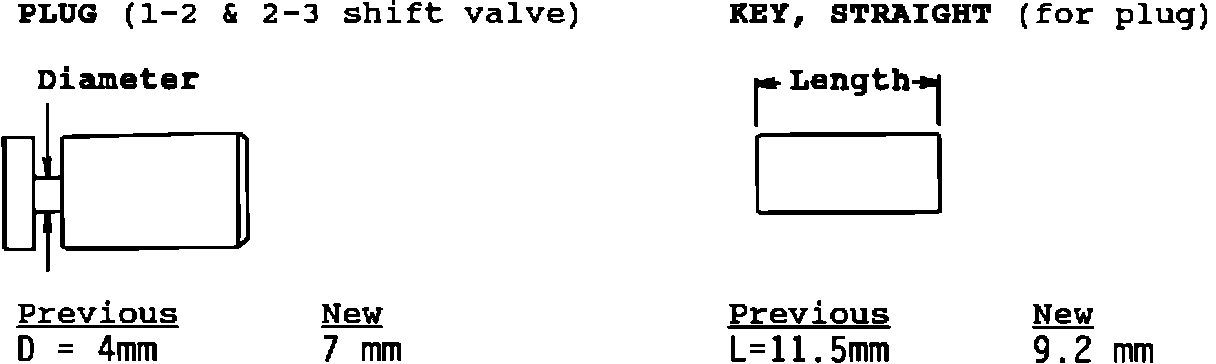

For improved durability, the 1-2 and 2-3 shift valve plugs (and straight key) have been changed as shown below.
PRODUCTION EFFECTIVE:

From VIN P/D A/TM Model A/TM Serial No.
JT2AE9 # * # J0069370 April 89 A240L 8CZ-03085
JT2AE9 # * # J3101022 " " A240L 8CZ-03085
JT2AE9 # V # J0011566 Feb. 89 A240H 8BZ-18195


PART NUMBER INFORMATION:

Prev. Part No. New Part No. Part Name
90339-04004 *90339-07005 Plug
90282-03002 *90282-03001 Key, Straight

Parts are interchangeable as a set only
