A/T - Governor Strainer Parts Standardized
89toyota07TRANSMISSION &
VOLUME REFERENCE CLUTCH
NUMBER 011
10 DATE 08-04-89
MODEL AE9# w/A240L A/TM
TITLE A240L/A241H GOVERNOR STRAINER (PARTS INFORMATION)

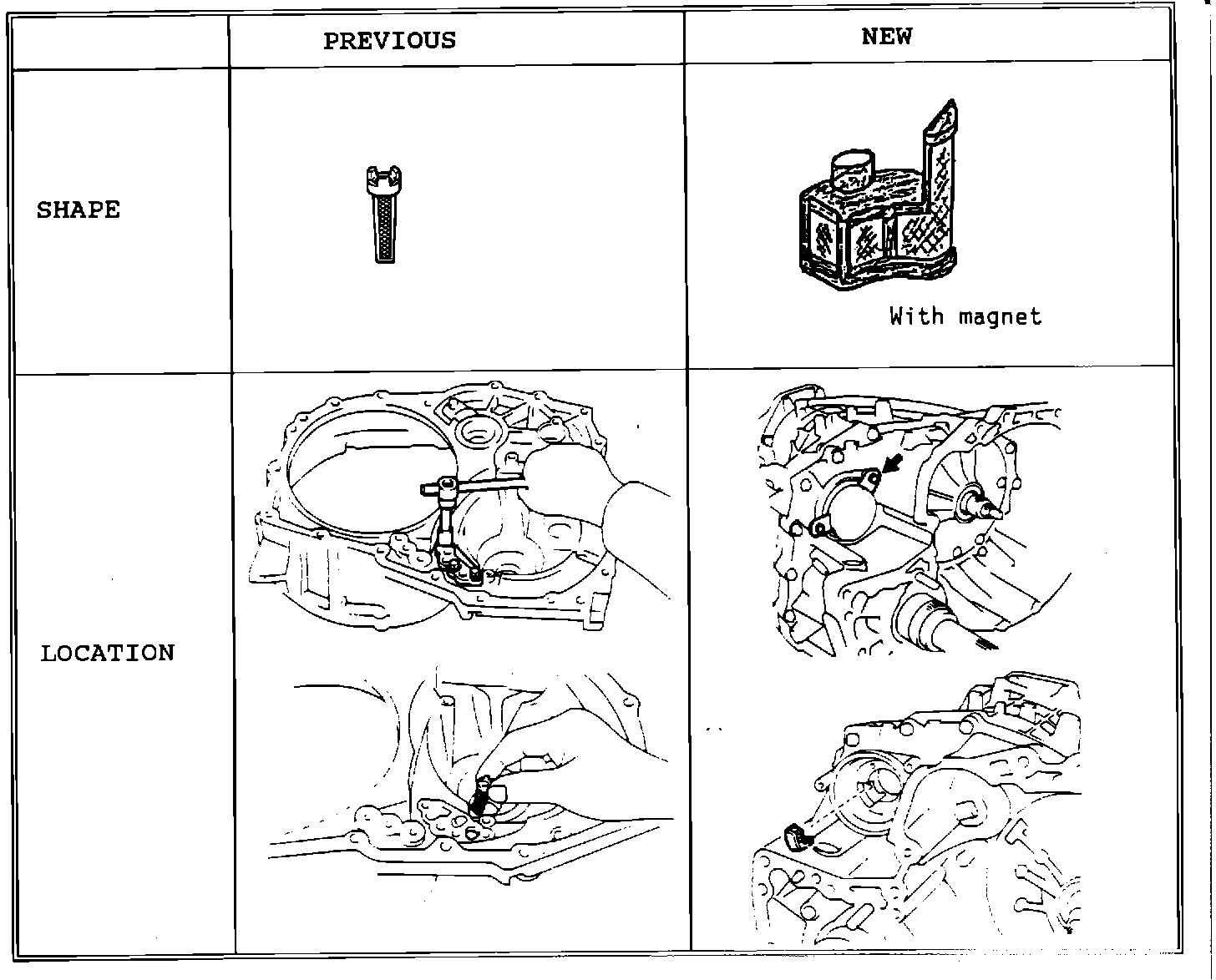

For parts standardization with A241H Transaxle, the shape and position of the Governor Strainer have been changed as shown below.
If a new Transaxle Housing (P/N 35105-12011) is installed on a vehicle produced prior to the production change (see vehicle information section, a new Governor Strainer (P/N 35395-12020) must also be used.
VEHICLE INFORMATION:
VIN PRODUCTION DATE
JT2AE9#*#K0100012 September 1988
JT2AE9#*#K3169855 " "
PART NUMBER INFORMATION:
PREV. PART NO. NEW PART NO. PART NAME
35105-12010 *35105-12011 Housing Sub-assy, Transaxle
35395-20010 *35395-12020 Strainer, Governor Oil
* Interchangeable as a set only
