Speedometer Gear, A/T: Service and Repair

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL

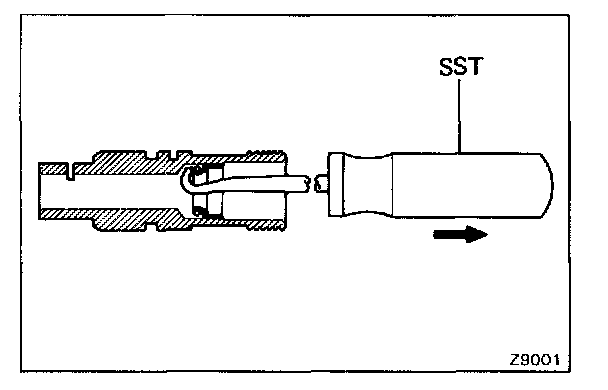

1. REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, pull out the oil seal.
SST 09921 - 00010

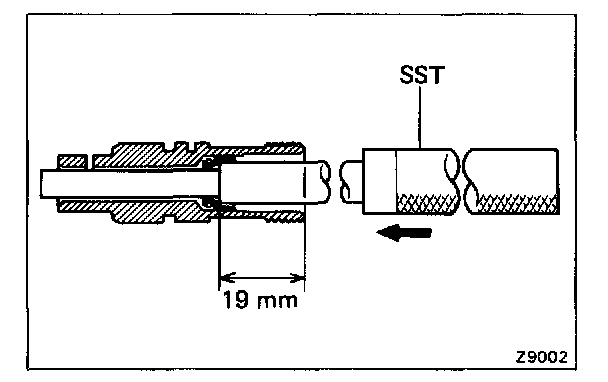

2. INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, drive in the oil seal.
SST 09201 - 60011
Drive in depth: 19 mm (0.75 in.)
