Main Point of Installation

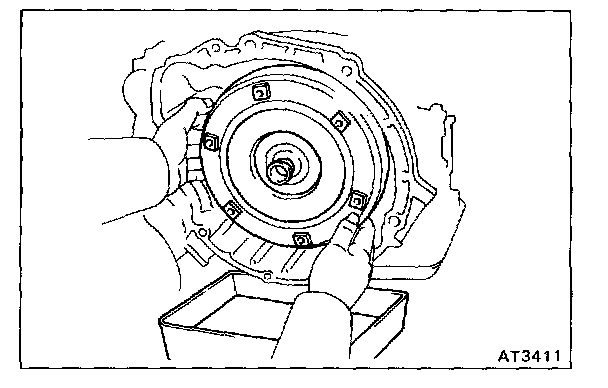

1. INSTALL TORQUE CONVERTER IN TRANSMISSION




2. CHECK TORQUE CONVERTER INSTALLATION

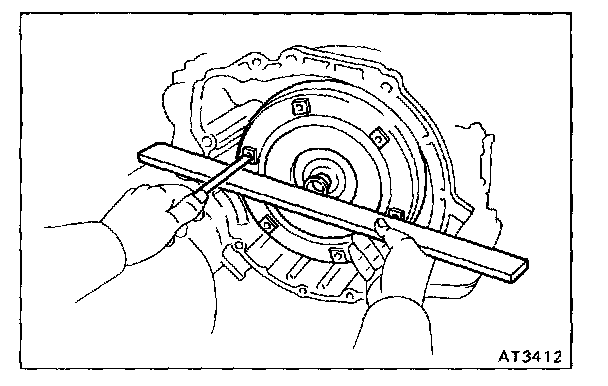

Using a scale and a straight edge, measure from the installed surface to the front surface of the transmission housing.

Correct distance: 23.0 mm (0.906 in.) or more




3. INSTALL TORQUE CONVERTER MOUNTING BOLTS
a. Clean the threads of the bolts with the gasoline.

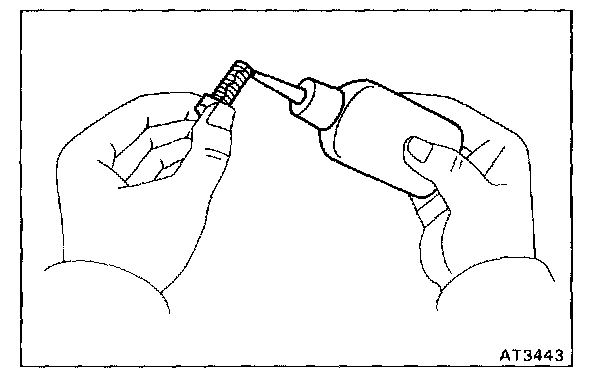

b. Coat the threads of the bolts with sealer.

Sealer: Part No. 08833 - 00070, THREE BOND 1324 or equivalent.

c. Tighten the bolts evenly.

Torque: 280 kg-cm (20 ft-lb, 27 N.m)
