Underdrive Brake and B4 Accumulator Piston (A240L, A241H)

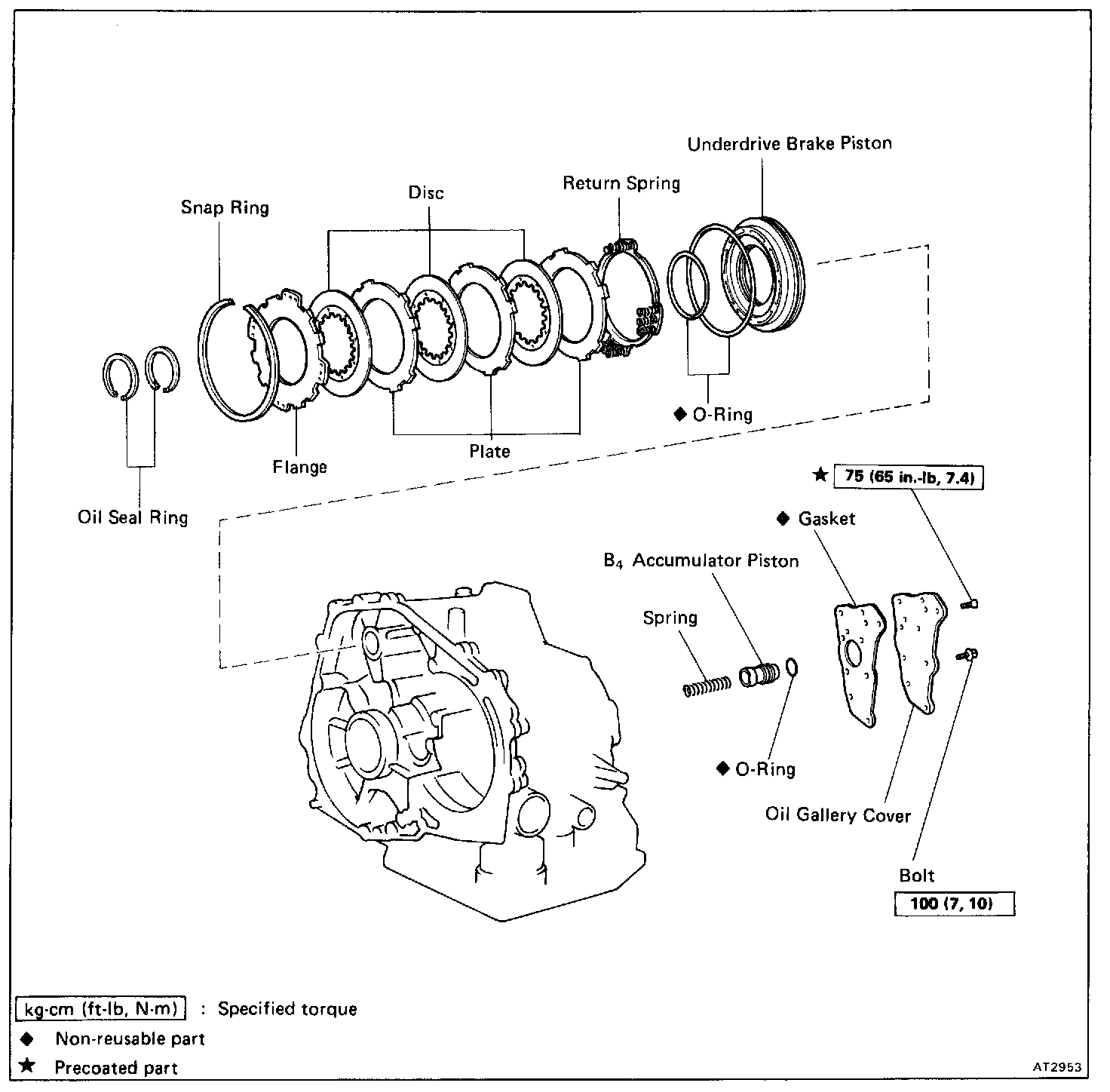

COMPONENTS

INSPECTION OF UNDERDRIVE BRAKE COMPONENTS




INSPECT DISCS, PLATES AND FLANGES
Check that the sliding surface of disc, plate and flange worn or burnt. If necessary, replace them.

NOTE:

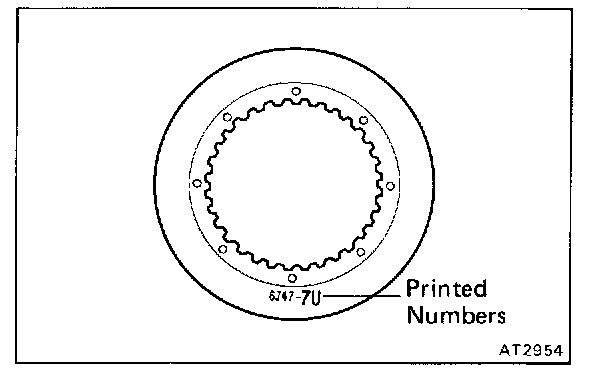

- If the lining of the disc is exfoliated or discolored, or even a part of the printed numbers are defaced, replace the disc.
- Before assembling new discs, soak them in ATF for at least two hours.
