Second Coast Brake

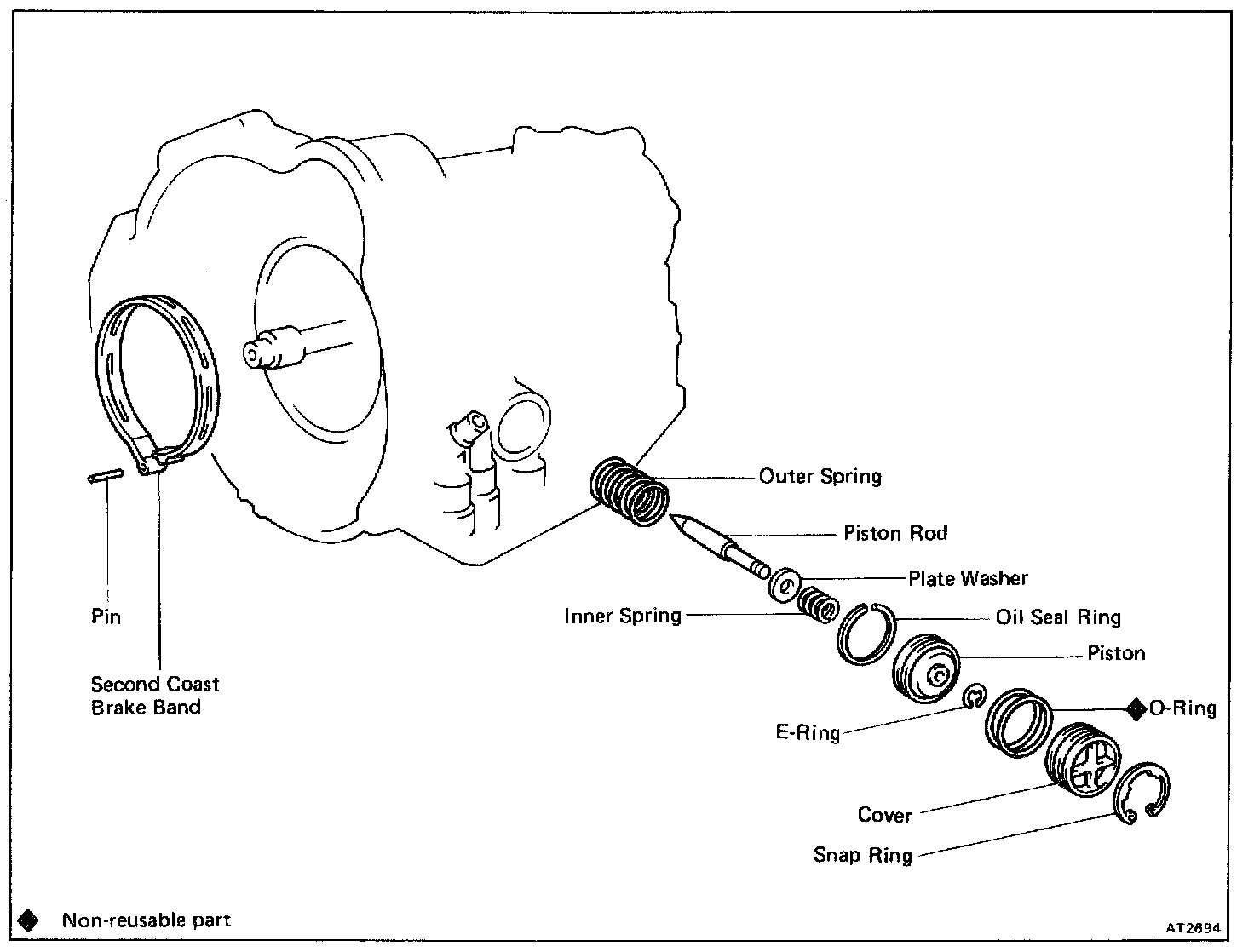

COMPONENTS

DISASSEMBLY OF SECOND COAST BRAKE PISTON

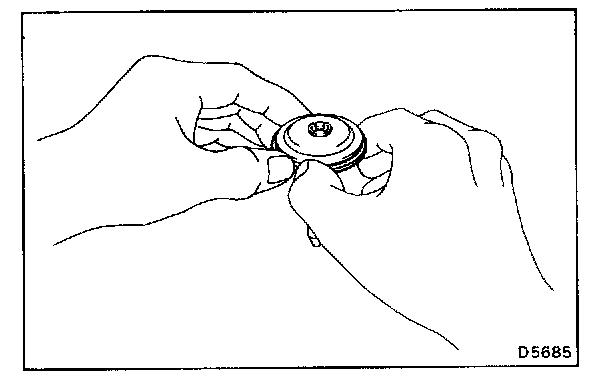

1. REMOVE OIL SEAL RING
Remove the oil seal ring from the piston.




2. REMOVE PISTON ROD

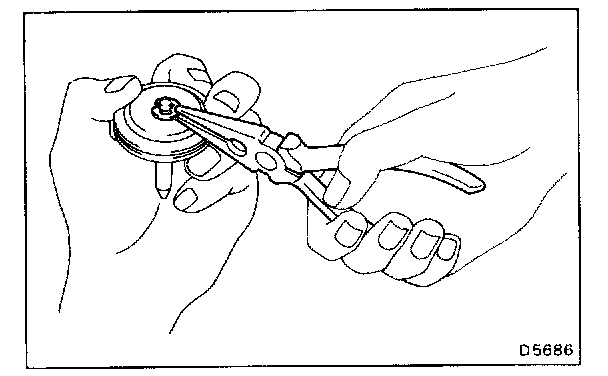

a. Remove the E-ring while pushing the piston with needle-nose pliers.

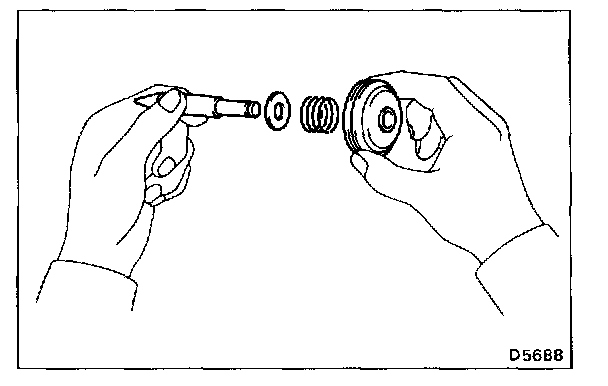

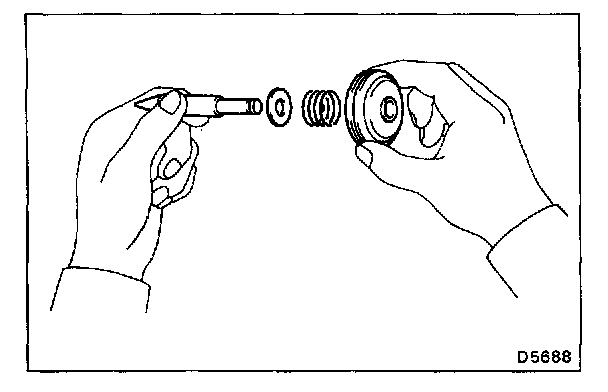

b. Remove the spring, washer and piston rod.

INSPECTION OF SECOND COAST BRAKE COMPONENT

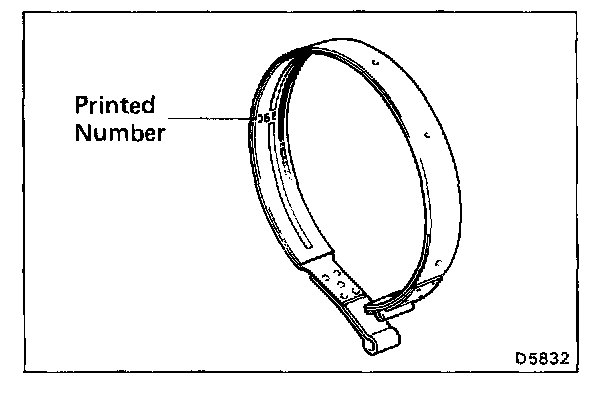

INSPECT BRAKE BAND
If the lining of the brake band is exfoliated or discolored, or even part of the printed numbers are defaced, replace the brake band.

ASSEMBLY OF SECOND COAST BRAKE PISTON

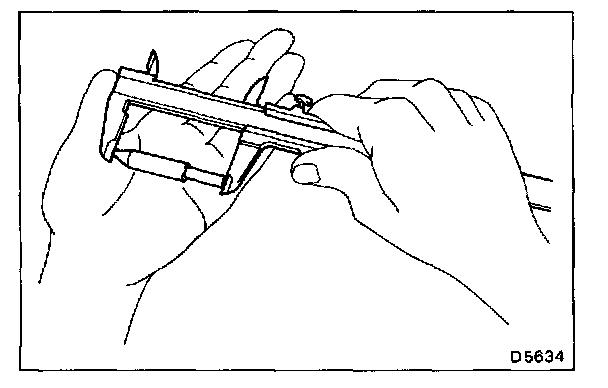

1. SELECT PISTON ROD
If the band is OK with piston stroke not within the standard value, select the piston rod.
There are two lengths of piston rod.

Piston rod length:
72.9 mm (2.870 in.)
71.4 mm (2.811 in.)

2. INSTALL PISTON ROD




a. Install the washer and spring to the piston rod.

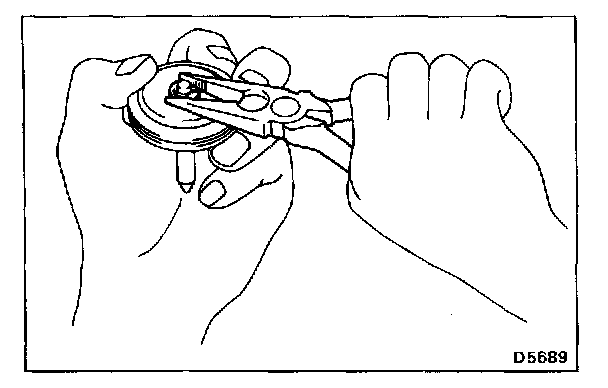

b. Install a E-ring while pushing the piston.

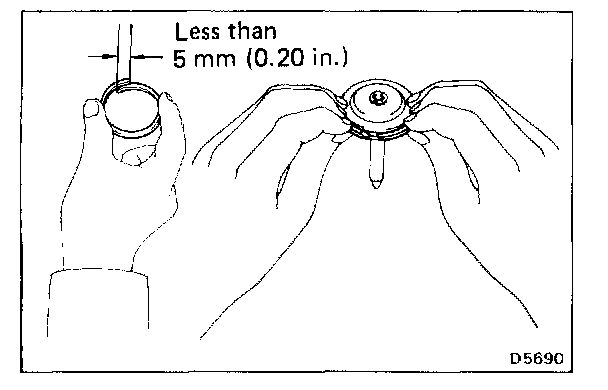

3. INSTALL OIL SEAL RING
a. Apply ATF to the oil seal ring.
b. Install the oil seal ring to the piston.

CAUTION: Do not spread the ring ends more than necessary.
