Second Brake

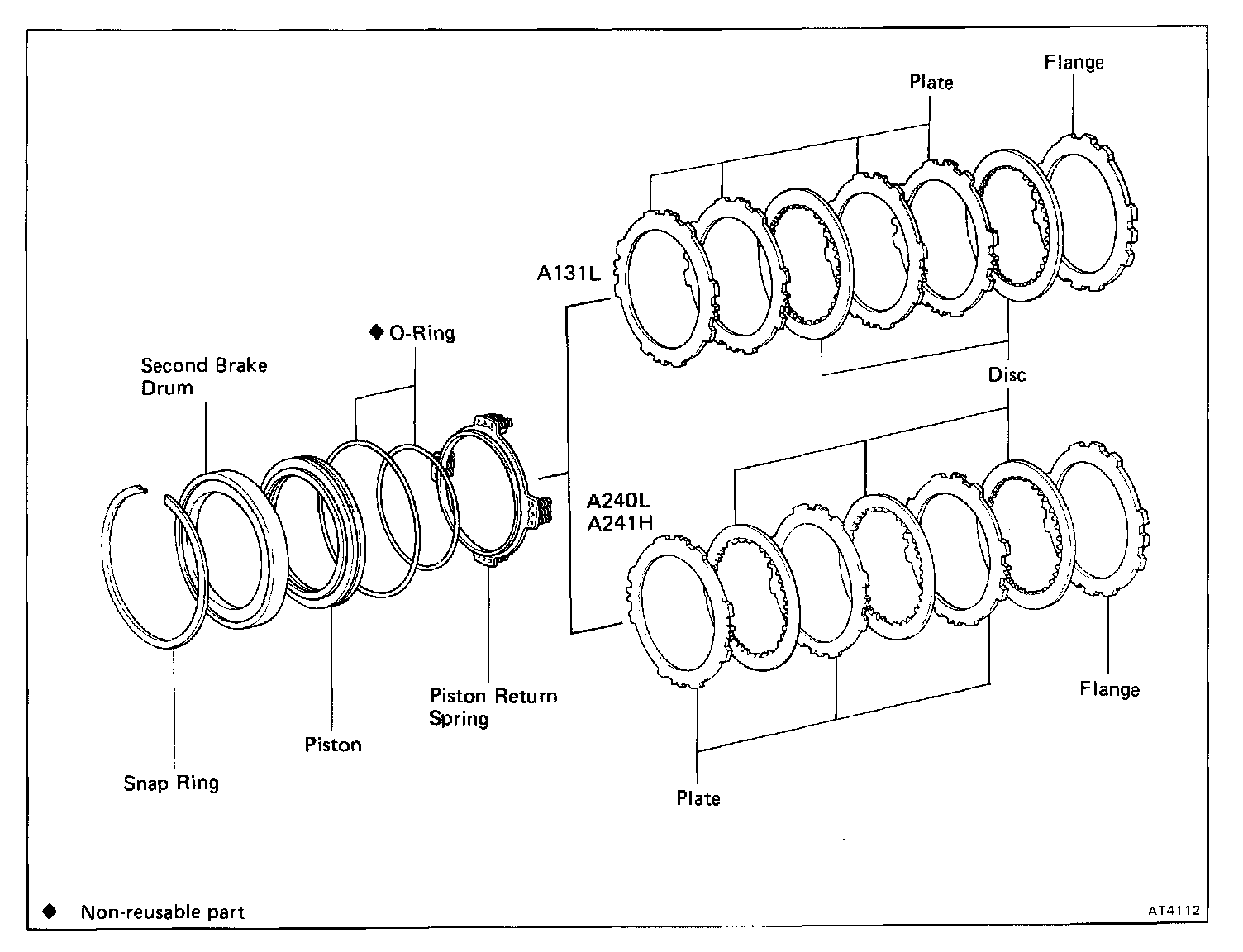

COMPONENTS

DISASSEMBLY OF SECOND BRAKE PISTON

REMOVE SECOND BRAKE PISTON




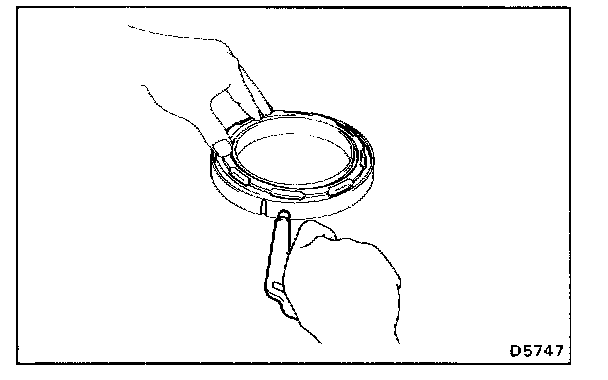

a. Apply compressed air to the oil hole to remove the piston




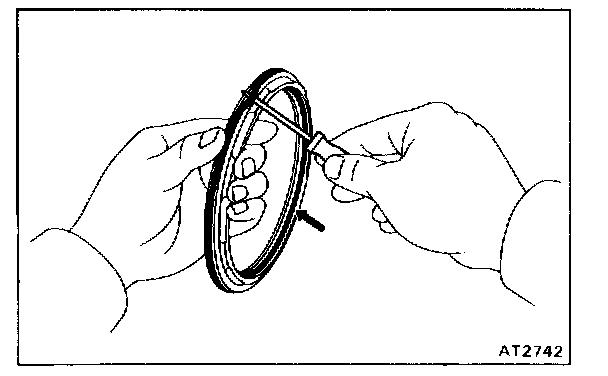

b. Remove the two O-rings from the piston.

INSPECTION OF SECOND BRAKE COMPONENT




INSPECT DISCS, PLATES AND FLANGES
Check if the sliding surface of the discs, plates and flanges are worn or burnt. If necessary, replace them.

NOTE:

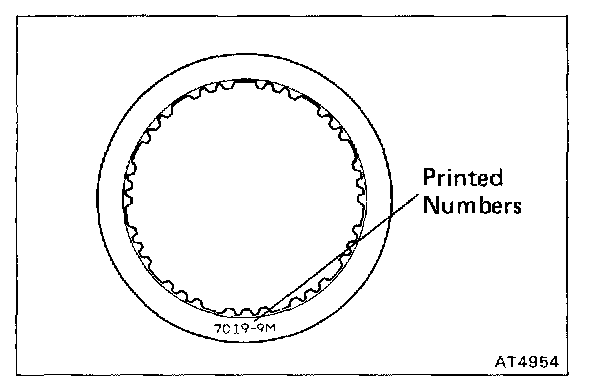

- If the lining of the disc is exfoliated or discolored, or even a part of the printed number is defaced, replace all discs.
- Before assembling new discs, soak them in ATF for at least two hours.

ASSEMBLY OF SECOND BRAKE PISTON

INSTALL PISTON




a. Coat a new O-ring with ATF.

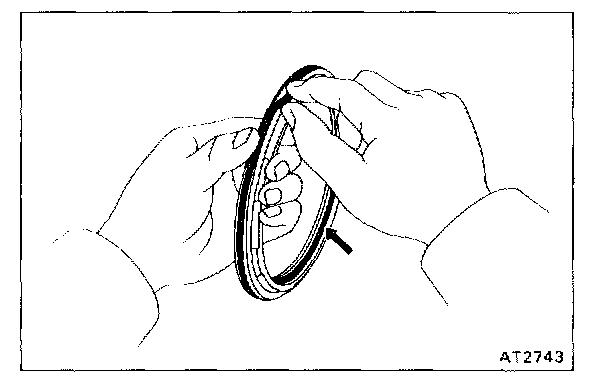

b. Install the two O-rings on the piston.




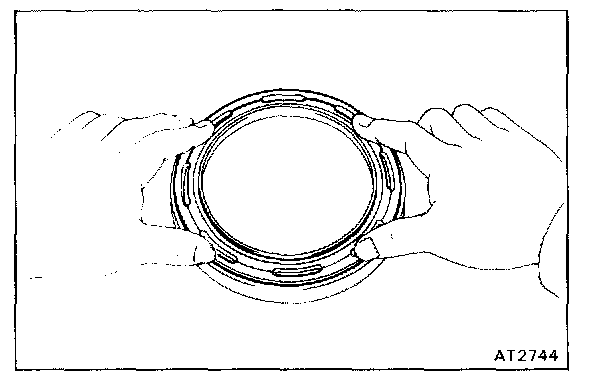

c. Press the piston into the drum, being careful not to damage the O-rings.
