Intermediate Shaft

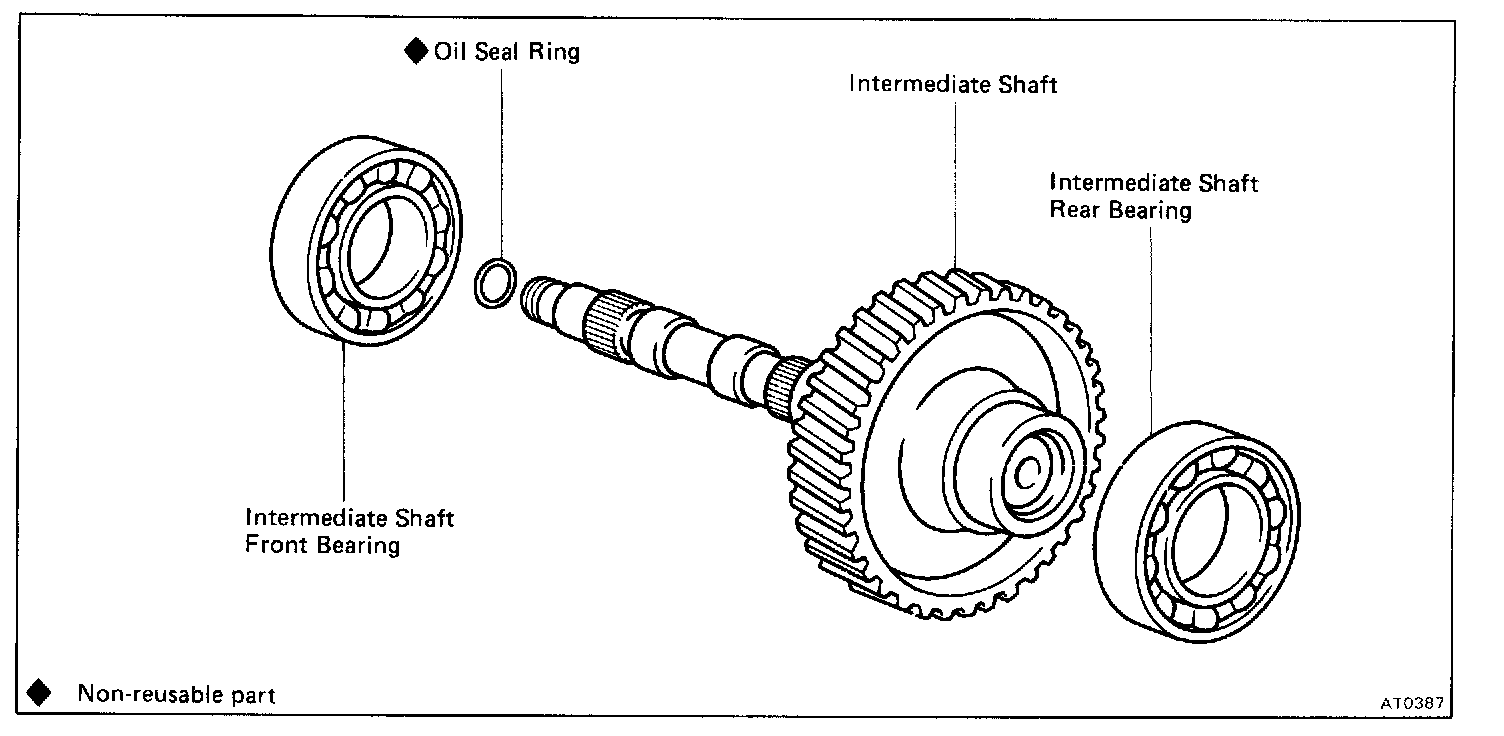

COMPONENTS

DISASSEMBLY OF INTERMEDIATE SHAFT

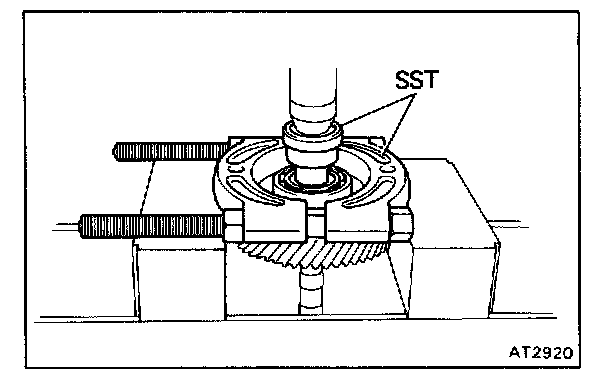

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING Using SST, press out the bearing.
SST
A131L: 09950 - 00020
A240L, A241H: 09555 - 55010

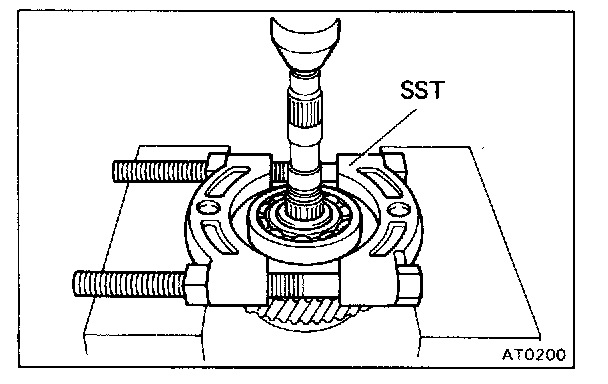

2. REMOVE INTERMEDIATE SHAFT REAR BEARING Using SST, press out the bearing.
SST
A131L: 09350 - 32014 (09351 - 32090), 09950 - 00020
A240L, A241H: 09350 - 32014 (09351 - 32090), 09555 - 55010

ASSEMBLY OF INTERMEDIATE SHAFT

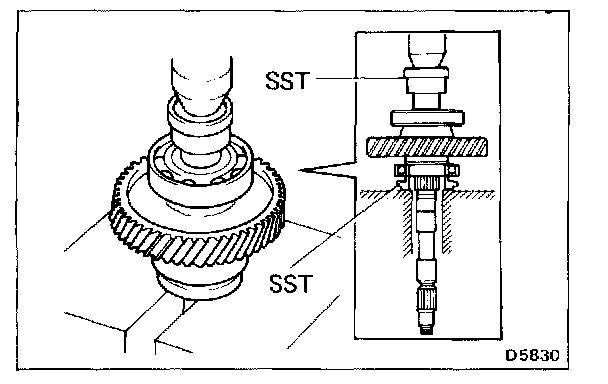

1. INSTALL INTERMEDIATE SHAFT REAR BEARING Using SST, press in a new bearing.
SST 09350 - 32014 (09351 - 32150)




2. INSTALL INTERMEDIATE SHAFT FRONT BEARING

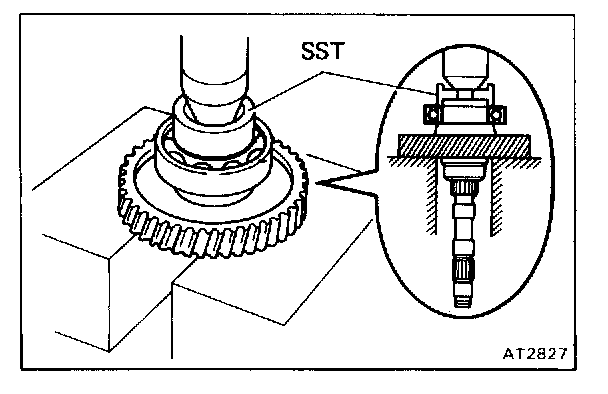

a. Using SST, press in a new bearing.
SST 09350 - 32014 (09351 - 32090, 09351 - 32120)

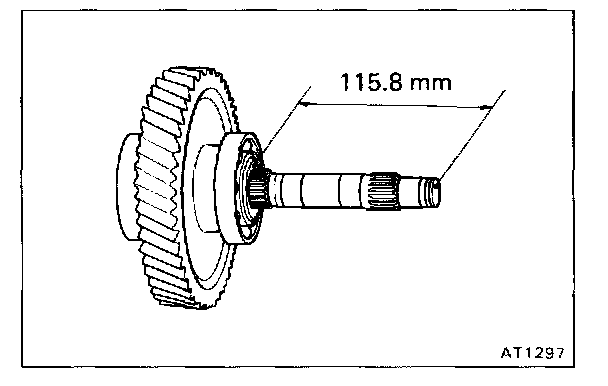

b. Check that the distance from the gear flange end to the intermediate shaft end is 115.8 mm (4.559 in.).
