First and Reverse Brake

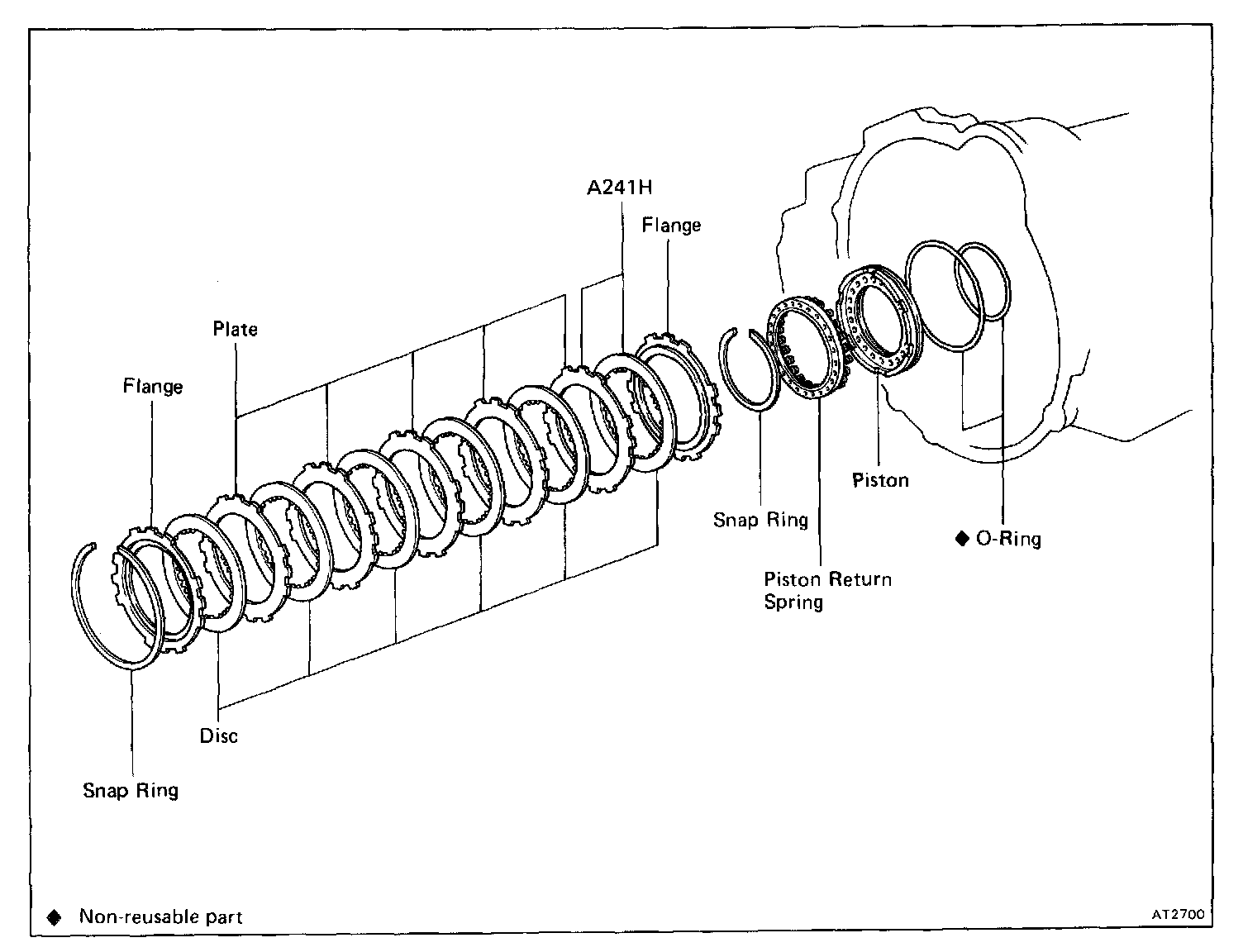

COMPONENTS

INSPECTION OF FIRST AND REVERSE BRAKE COMPONENT




INSPECT DISCS, PLATE AND FLANGE
Check if the sliding surface of the discs, plates and flanges are worn or burnt. If necessary, replace them.

NOTE:

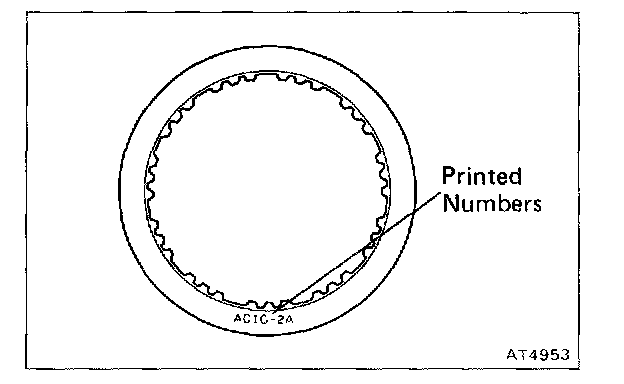

- If the lining of the disc is exfoliated or discolored, or even a part of the printed number is defaced, replace all discs.
- Before assembling new discs, soak them in ATF for at least two hours.
