Oil Pump Seal and O-ring

REPLACEMENT OF OIL SEAL




1. REMOVE OIL SEAL

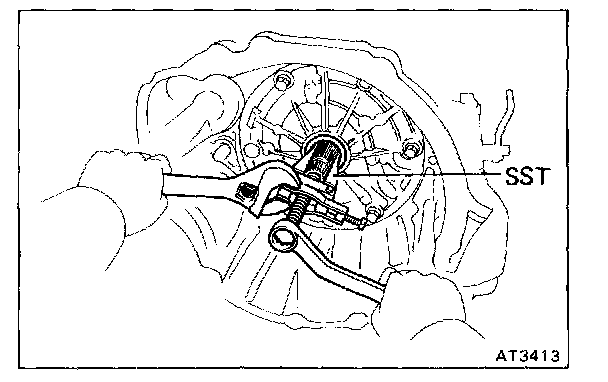

Using SST, remove the oil seal from the oil pump.
SST 09350 - 32014 (09308 - 10010)




2. INSTALL NEW OIL SEAL
a. Apply MP grease to the oil seal lip.

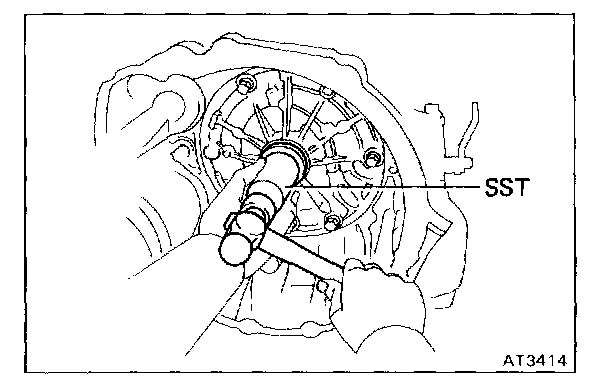

b. Using SST and hammer, drive in a new oil seal to the oil pump.
SST 09350 - 32014 (09351 - 321401)

REPLACEMENT OF O-RING




1. REMOVE OIL PUMP
a. Position the transmission with the oil pump facing upward.

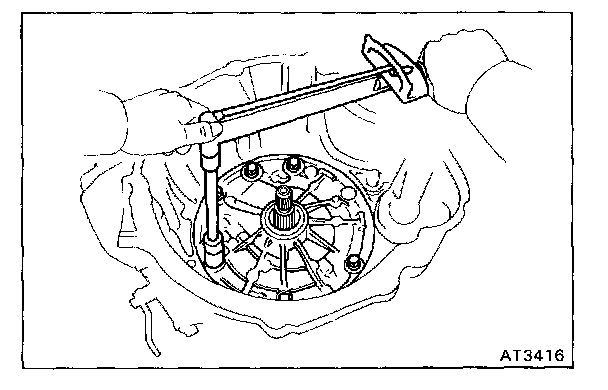

b. Remove the six bolts.

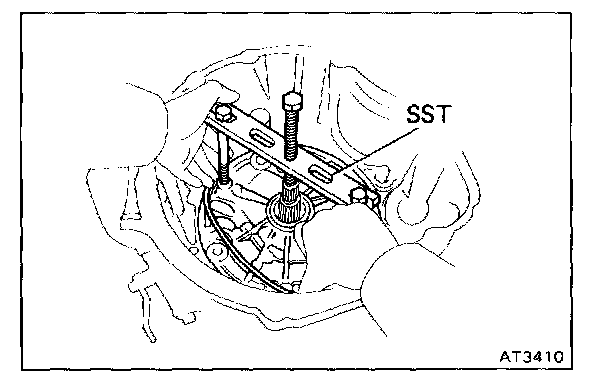

c. Pull up the oil pump to where the O-ring can be removed with SST.
SST 09350 - 32014 (09351 - 32061)
d. Temporarily install the bolt.




2. REMOVE O-RING
3. INSTALL A NEW O-RING
4. INSTALL OIL PUMP MOUNTING BOLT
Tighten the six bolts uniformly and a little at a time.

Torque: 250 kg-cm (18 ft-lb, 25 N.m)
