Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Without Tilt Column

Without Tilt Column

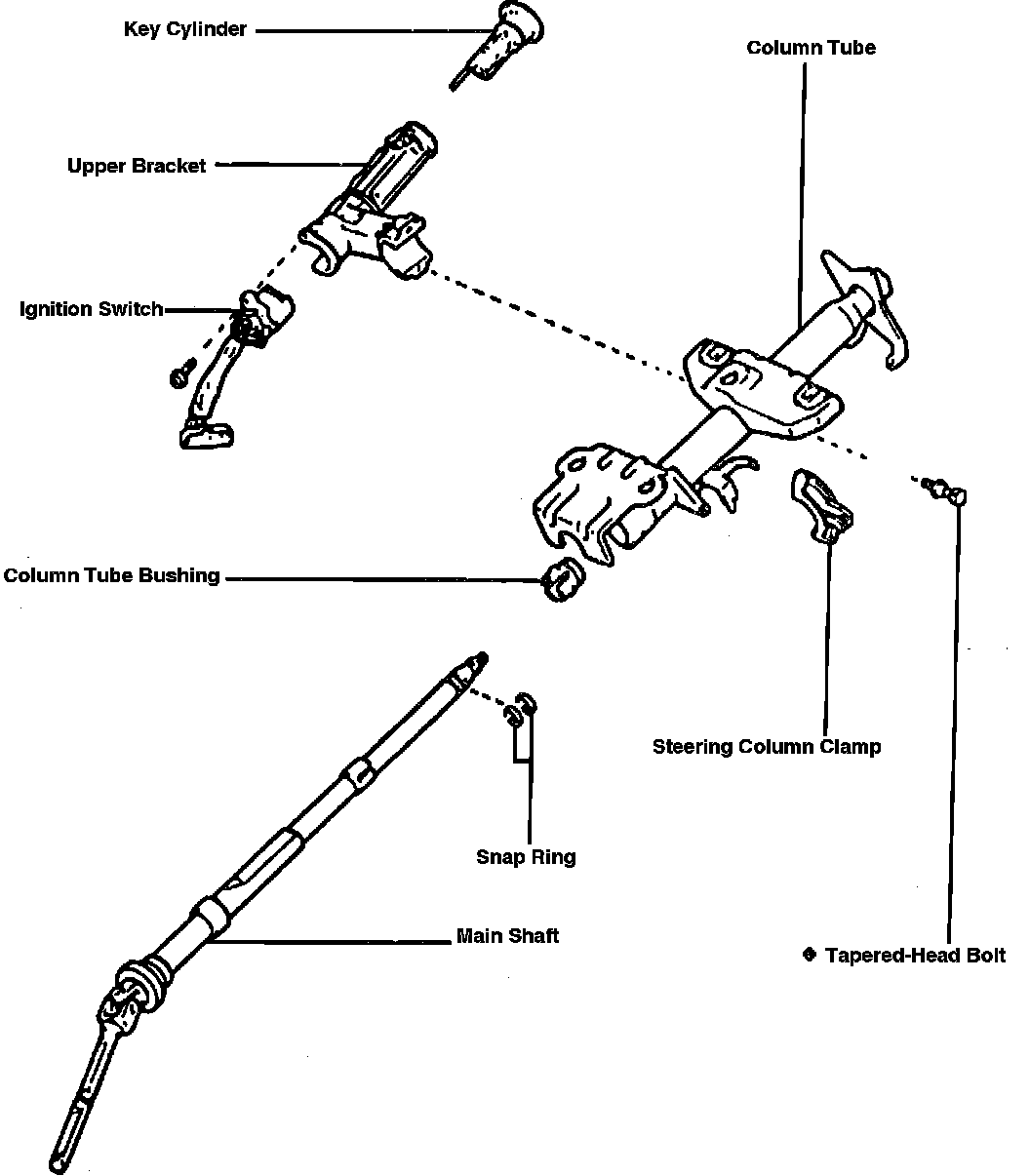

Fig. 14 Exploded View Of Steering Column. 1989 Corolla Less Tilt Column:
