Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Steering and Suspension >> Alignment >> Service and Repair >> Vehicle Ride Height

Vehicle Ride Height

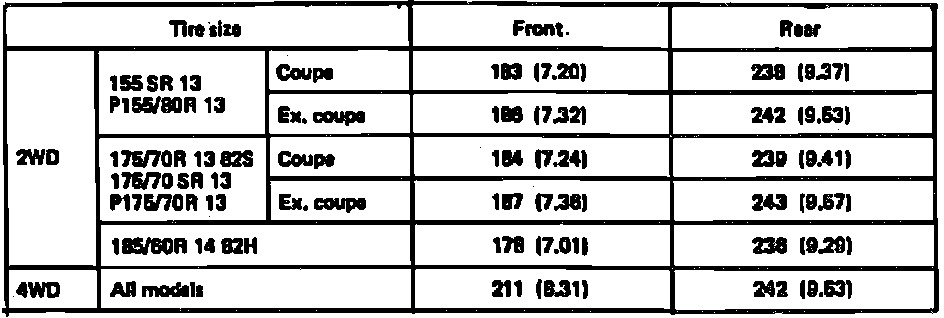

Fig. 4 Ride Height Specifications. 1989-90 Corolla:



Fig. 1 Ride Height Measurement:
