Audio - Fuse Installation For Radio

REFERENCE: AUDIO

NUMBER 003: (REVISED)

DATE: 06-09-89

MODEL: AE, ST, AW, RN/VN, YR, SY/VV, MX, XA, EL

TITLE: RADIO FUSE INSTALLATION ON 89 MODELS

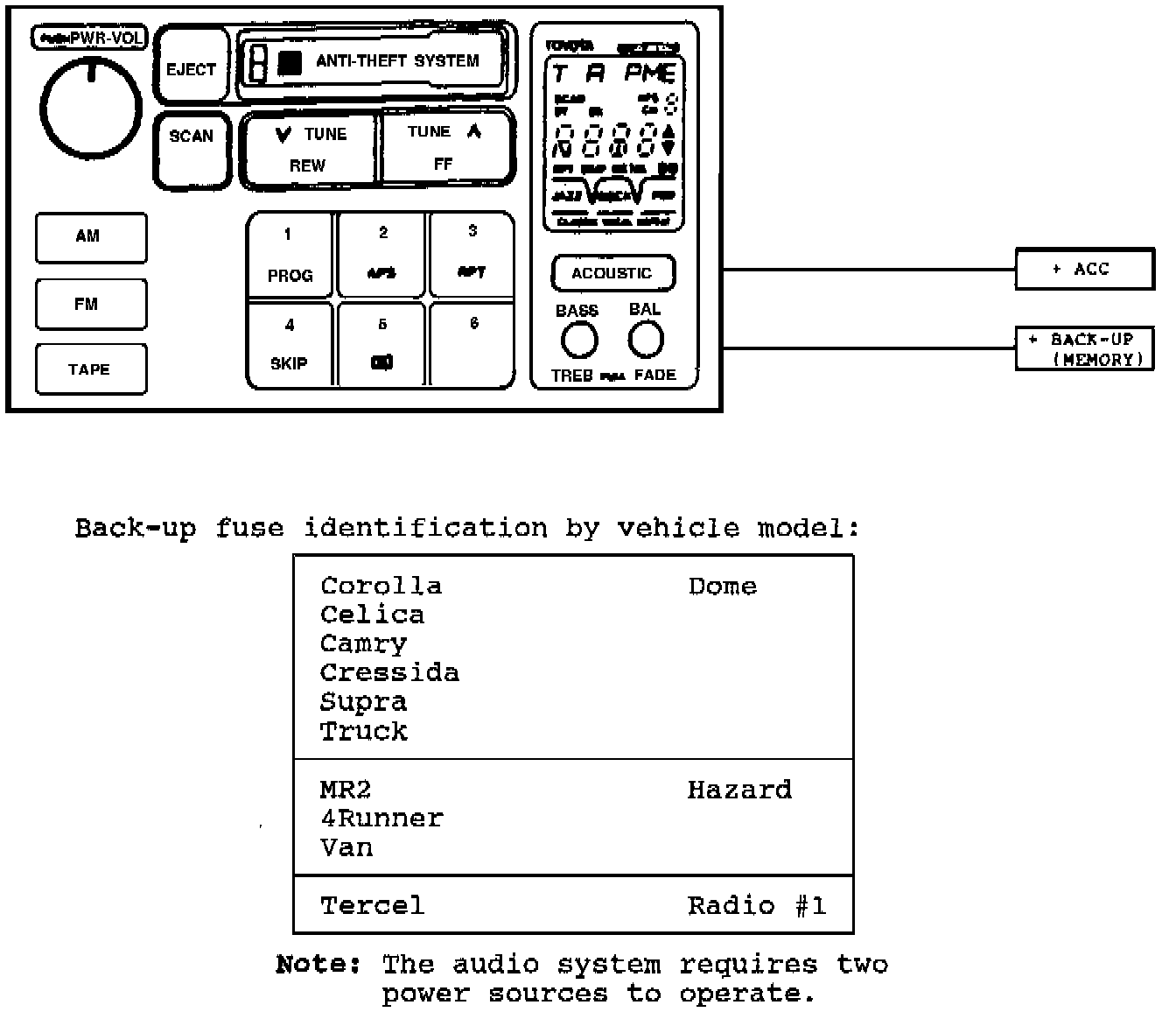

It is important to verify that both back-up and radio fuses are installed before attempting to operate the vehicle's audio system. If both fuses are not in place improper operation or possible damage to the audio system may occur.
