Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Source

Power Source

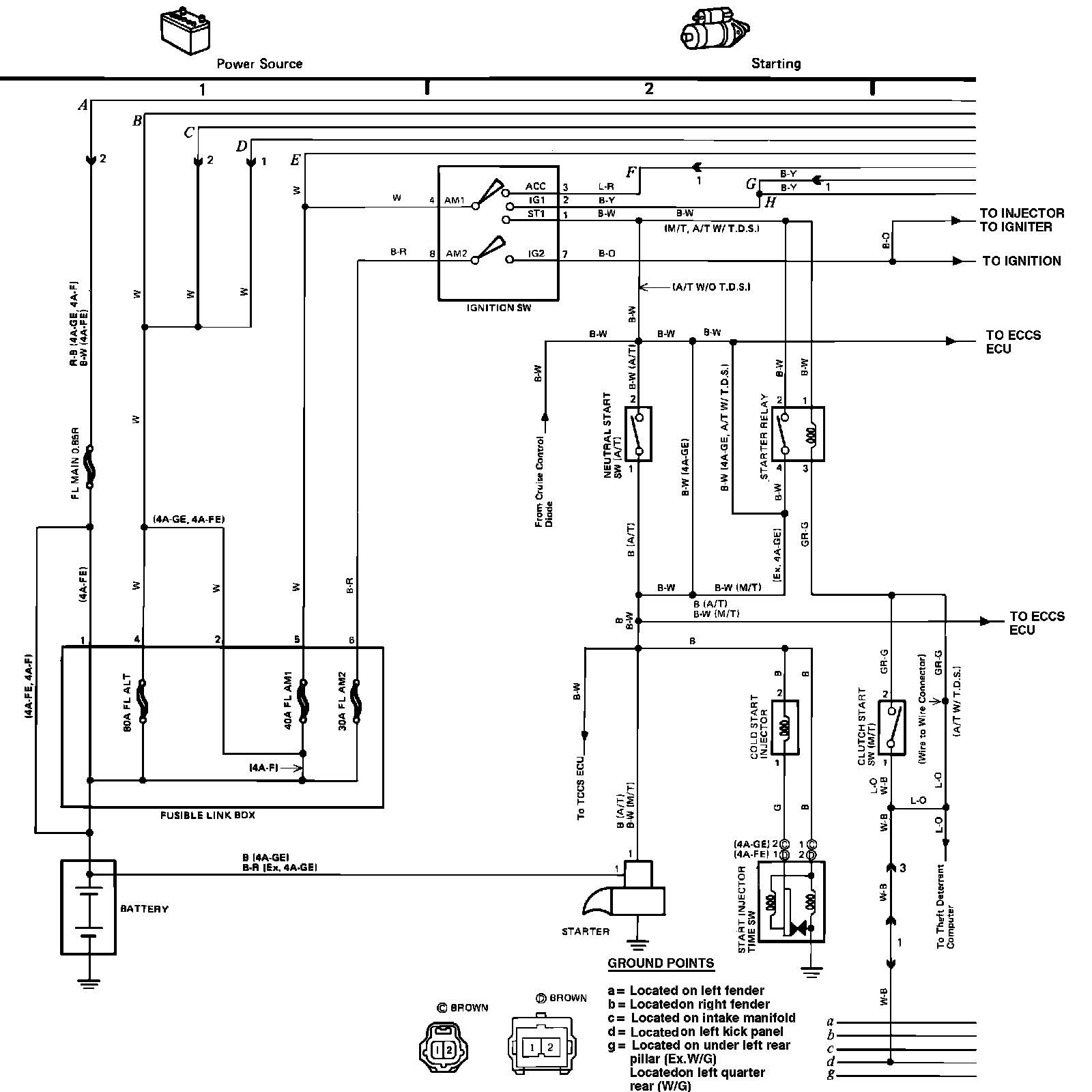

Power Source:

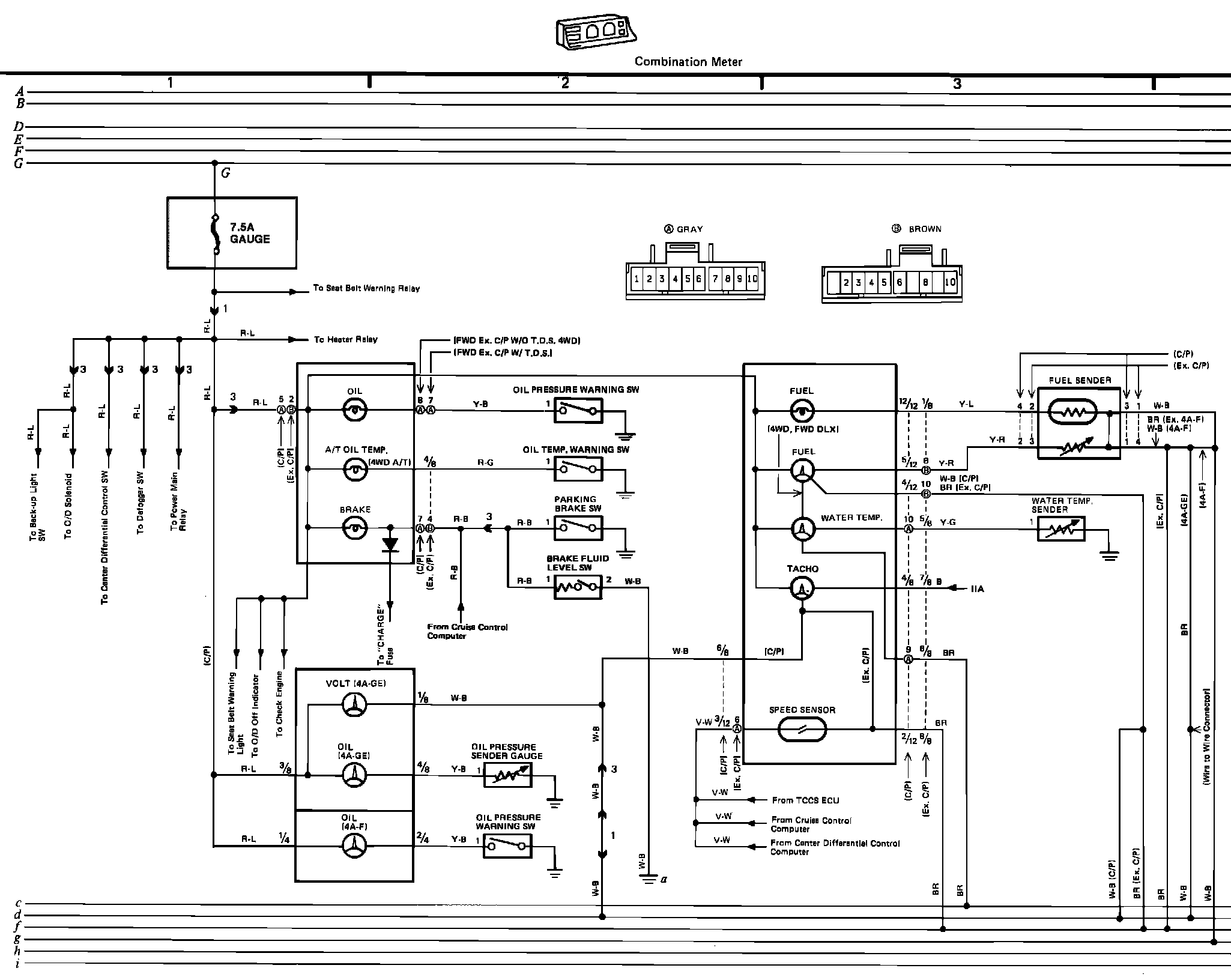

PWj�Instrument Panel, Wiper/Washer, Back-Up Lights, Overdrive And Stop Light Wiring Circuits:
