Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Piston Pin, Engine

Piston Pin, Engine

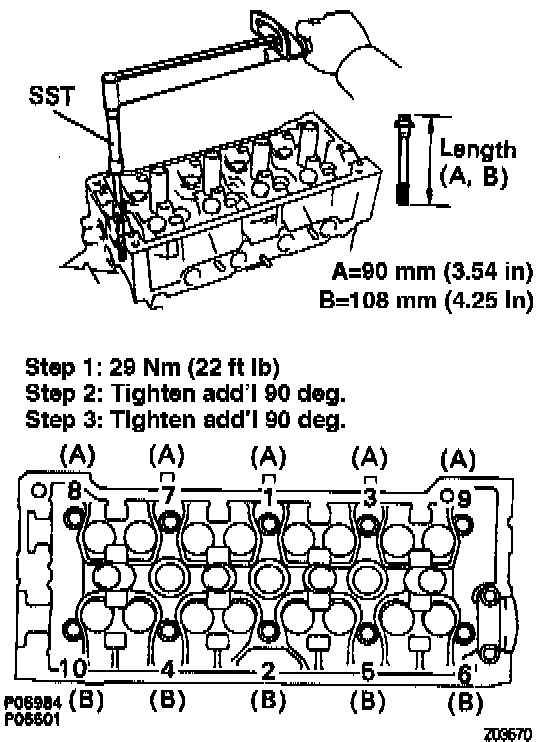

Cylinder Head Torque Sequence:





Cylinder Head Torque
