Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Tightening Specifications >> Automatic Transaxle (A240L)

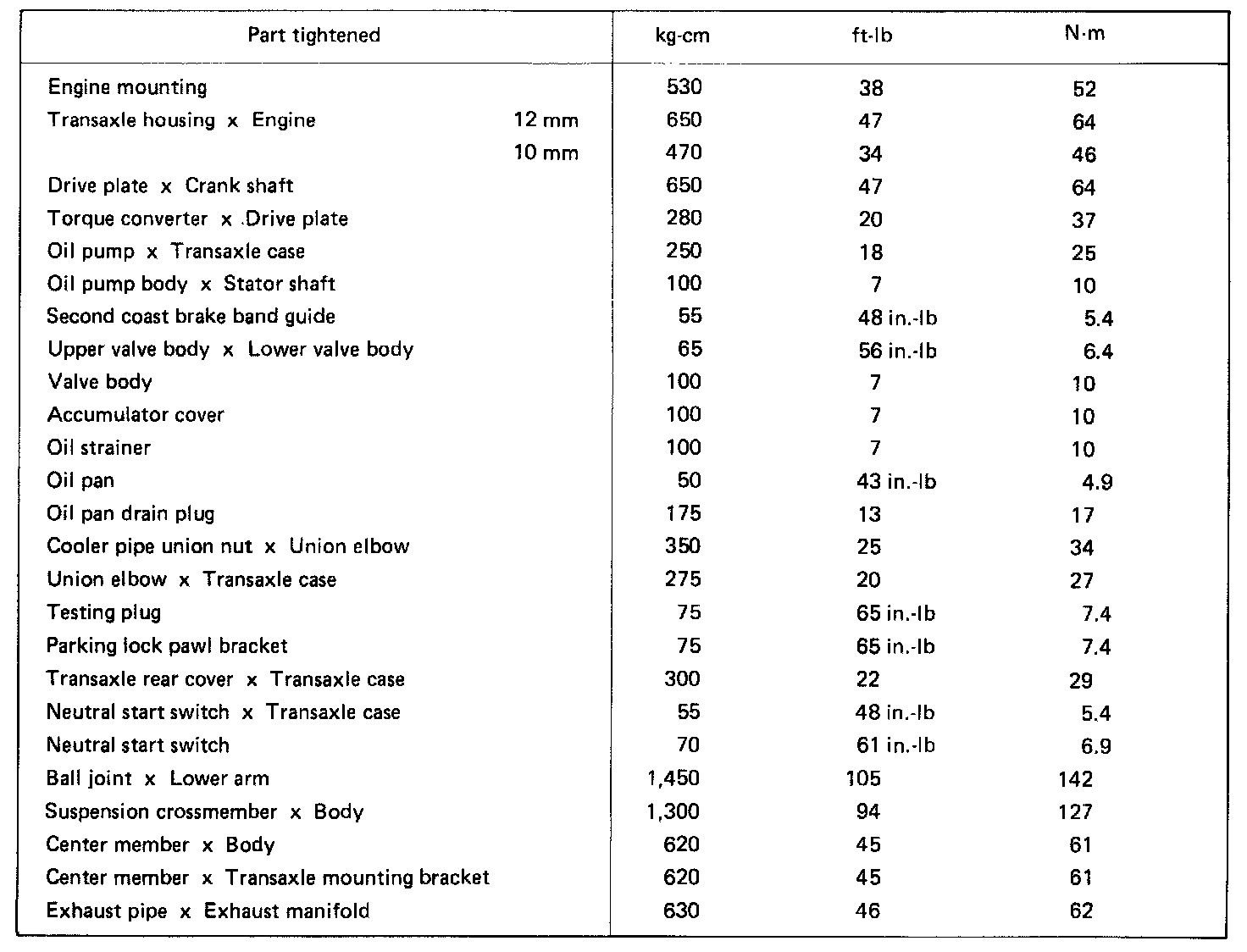

Automatic Transaxle (A240L)
