Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> Pick-Up Coil, Ignition >> Distributor Pickup Specifications

Distributor Pickup Specifications

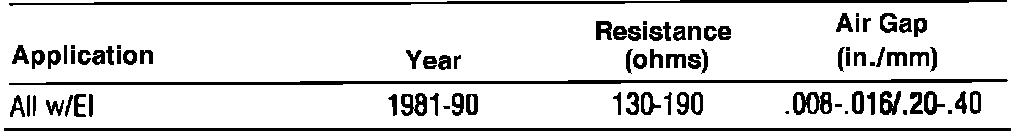

Fig. 14 Distributor Pickup Specifications:
