Air Conditioning Switch: Testing and Inspection

Testing AC Switch:

REMOVE

- Center dash panel
- Carefully remove AC switch

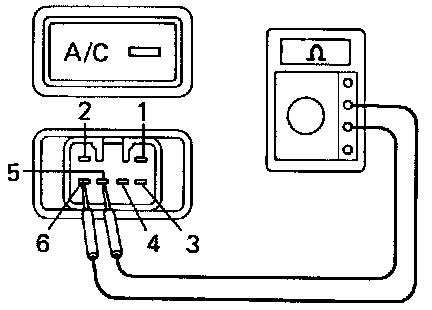

Testing AC Switch:

TEST

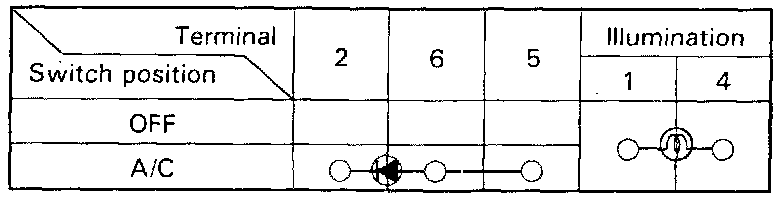

- Check switch function according to the table.
- If the switch fails the test, replace it.
