Seat Belts - Front and Rear Extenders
REF.: BODYNO.: BO95-012
DATE: NOVEMBER 24, 1995
MODEL: ALL MODELS
SEAT BELT EXTENDER (1987 TO 1996 MODEL YEARS)
A special program is available for individuals who require extra length seat belts. Owners of 1987 through 1996 vehicles can now obtain seat belt extenders at no cost through their local Toyota dealer. (On vehicles from 1982 to 1986 - contact the Toyota Motor Sales (TMS) Customer Relations Department for availability).
The seat belt extender is available in black only and in lengths of 6", 9", 12", 15" and 18".
Owners are informed of the seat belt extender availability through the Toyota Owner's Manual included in each 1987 or later vehicle (see page 9 for text of Owner's Manual).
The user must visit a Toyota Dealership to have the required measurements made and complete the seat belt extender worksheet. The worksheet will allow the proper fitting and selection of a seat belt extender for the customer. The dealer should then determine the part number needed and place a Critical Order for the item through the TDN Parts Network.
Included are the following 1996 model year updated guides and examples:
Flow Chart
Seat Belt Extender Application/Part Number Chart
Owner Instruction Sheet
Statement included in Owner's Manual
Seat Belt Extender Worksheet
The dealership service department should complete the affixed Seat Belt Extender Label and review the "owner instruction sheet" with the owner. The dealer should give a copy of the completed worksheet to the owner and keep the original in the customer's file.
To assure utmost owner satisfaction, it is recommended that a dealer designate one person to coordinate all activities related to the seat belt extender issue.
Due to past sales history, it is recommended that dealers DO NOT stock seat belt extenders due to low demand for the parts and the need for custom fitting.

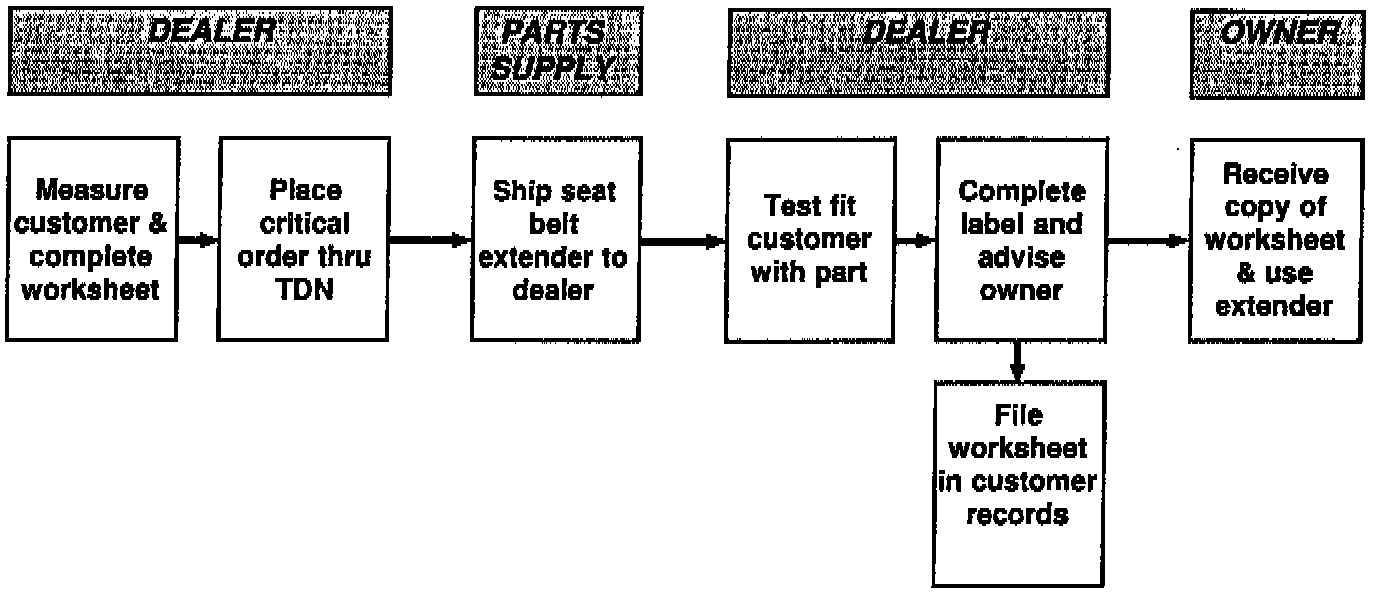

SEAT BELT EXTENDER (SBE) FLOW CHART:
SEAT BELT LABEL SAMPLE
1. Owner requests a seat belt extender from the dealer.
2. Dealer verifies need for a seat belt extender and obtains current copy of TSB and copies the worksheet.
3. Dealer measures the customer and completes the worksheet. Dealer determines the correct part number needed and places a Critical Order for the part through the TDN Parts Network.
4. Dealer receives the seat belt extender and calls customer in to check fit of the part.
5. If the seat belt extender fit is OK, dealer completes the customer information label on the part, explains usage of the part and gives the customer a copy of the completed worksheet.
6. Dealer places a copy of the completed worksheet in the customer's records.

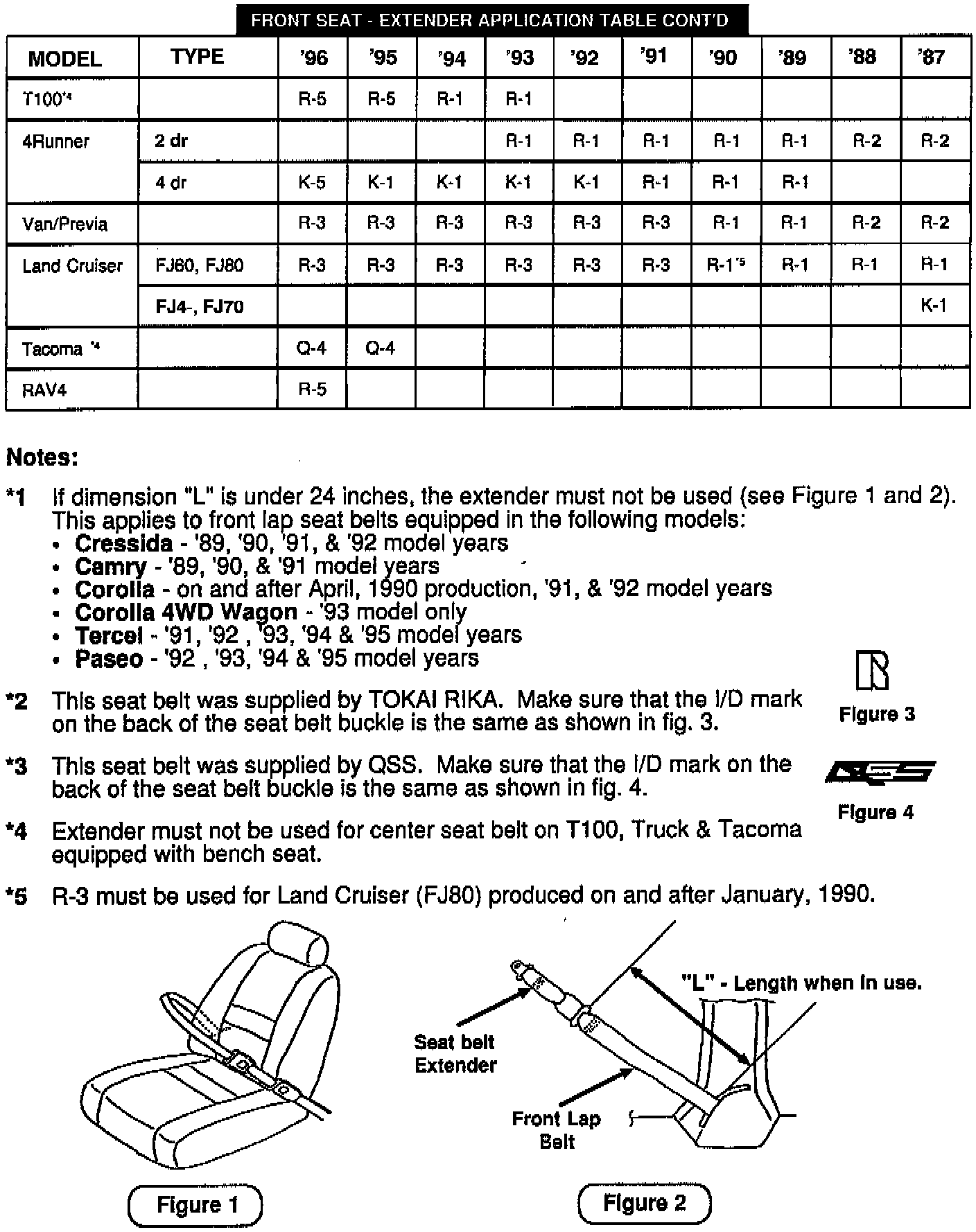

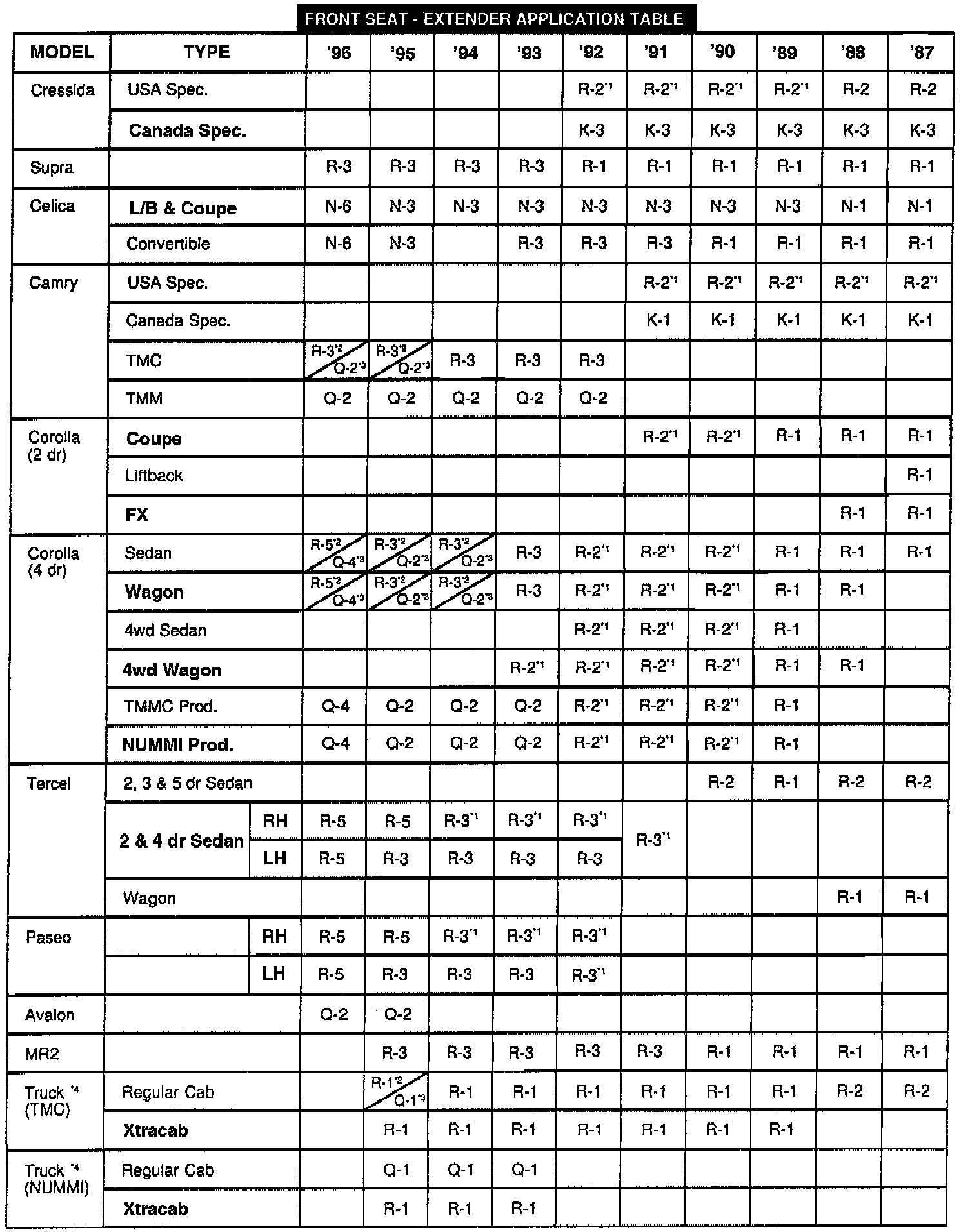

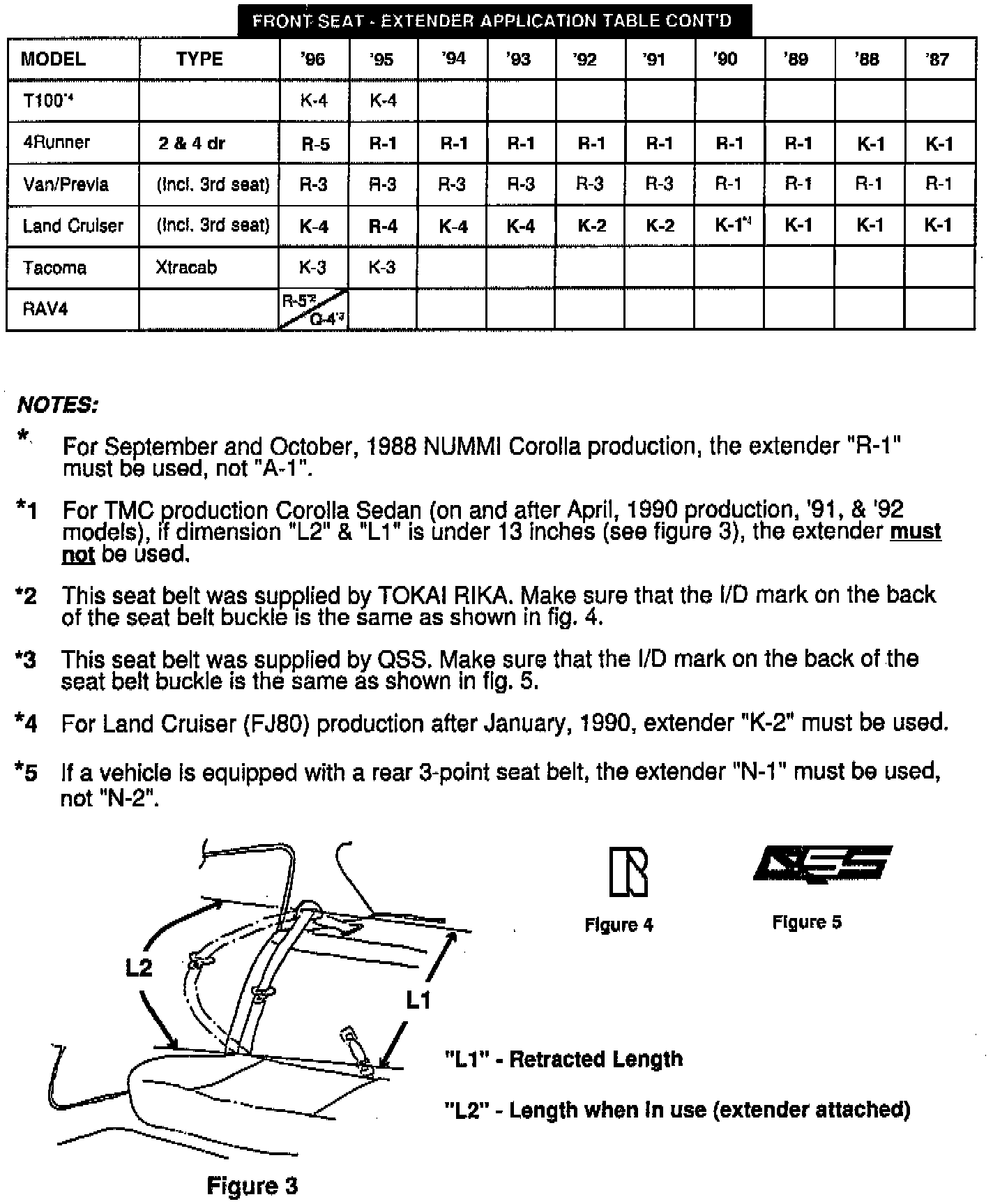

FRONT SEAT EXTENDER APPLICATION TABLE
NOTE:
The front lap belt for all '90 Corolla models and the '90 Tercel is the ALR type. Make sure the ALR is locked when the extender is used. (Do not use if unlocked)

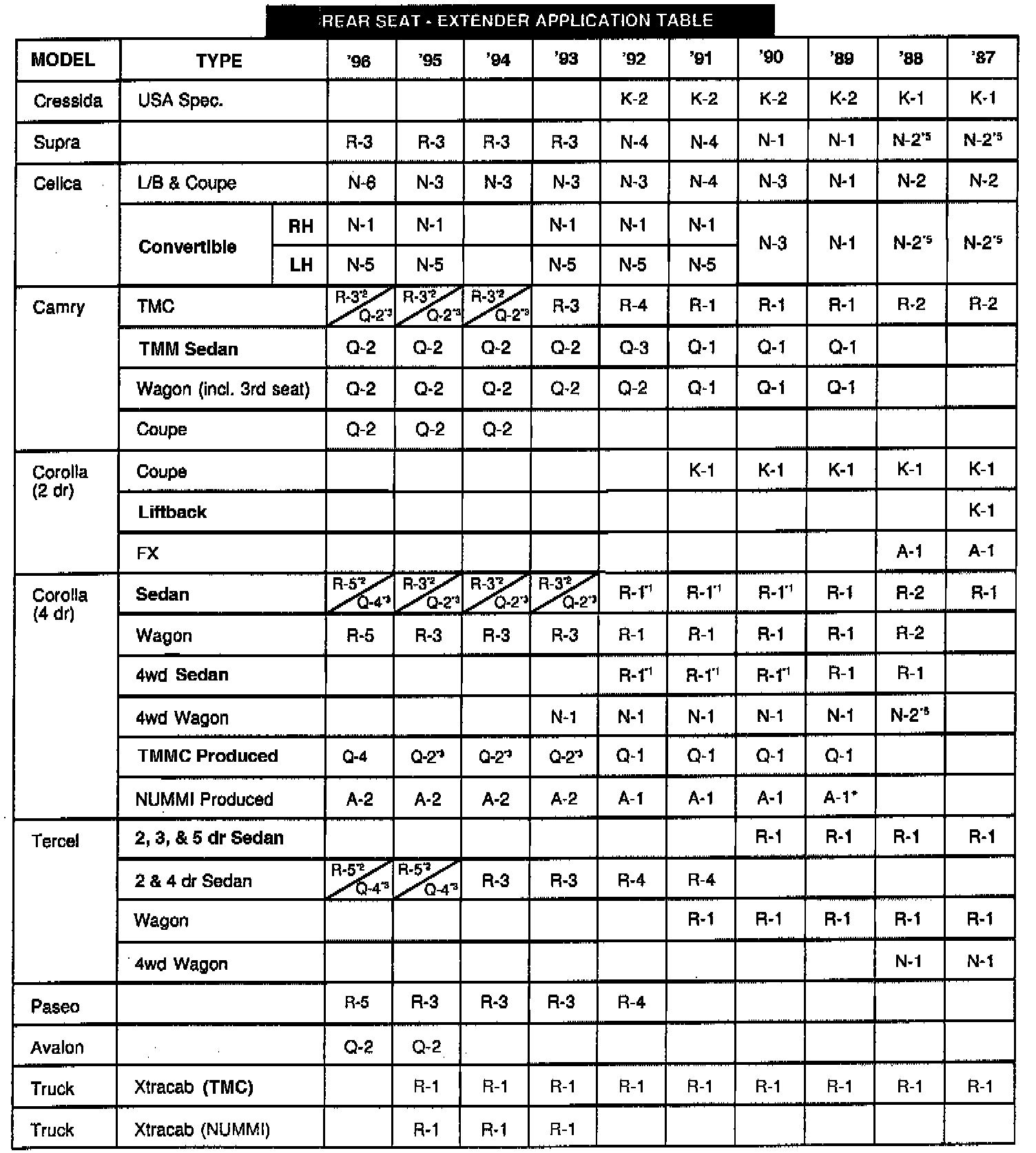

REAR SEAT EXTENDER APPLICATION TABLE
Note:
The extender must not be used for the center rear seat belt on any model.

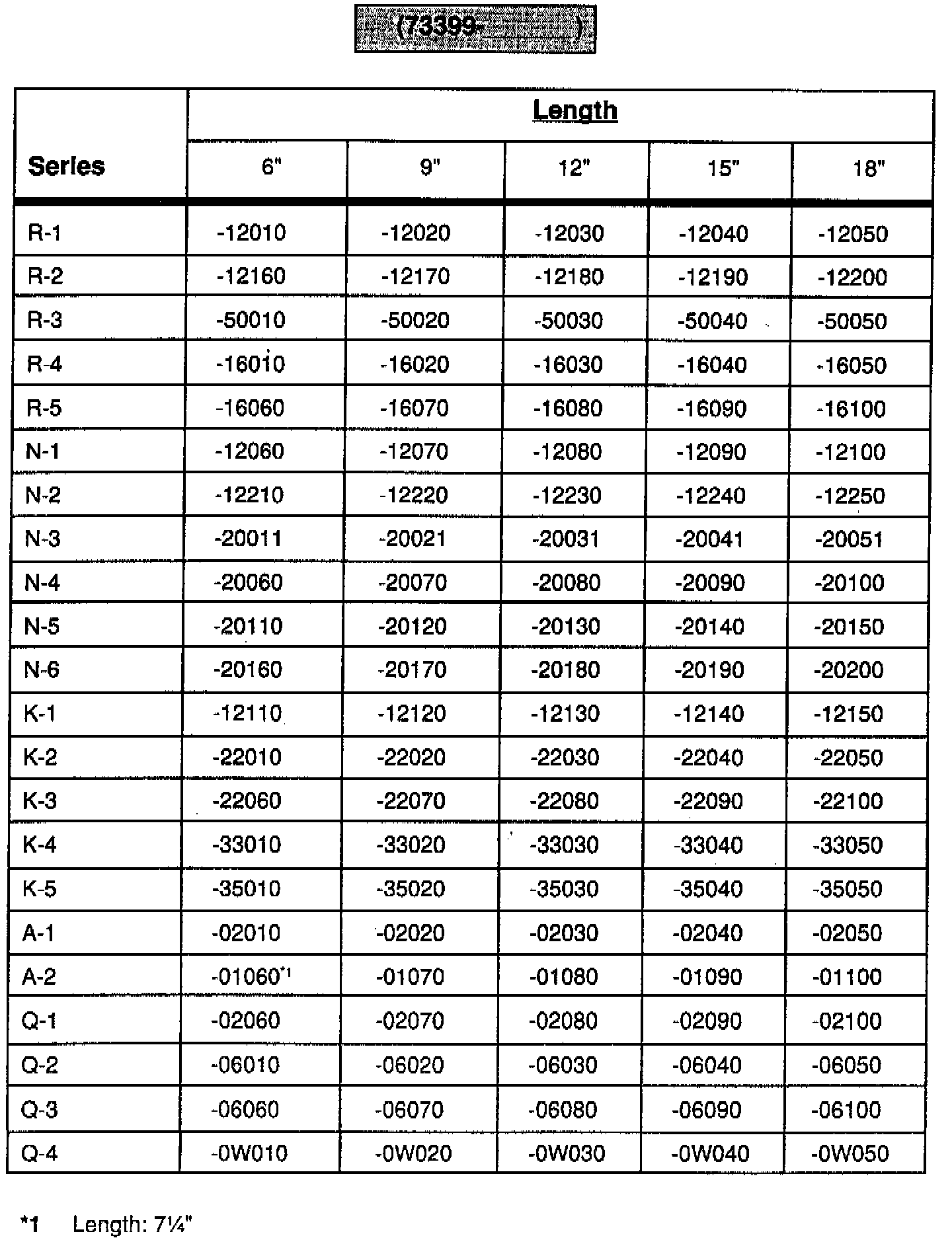

PART NUMBER INFORMATION:
OWNER INSTRUCTION:
Failure to follow the recommendations indicated below could result in less effectiveness of the seat belt restraint system in case of vehicle collision, causing personal injury.
1. The seat belt extender must not be used:
(I) By anyone other than for whom it was provided (name recorded on seat belt extender).
(II) In any vehicle and/or seat position other than the one for which it is provided.

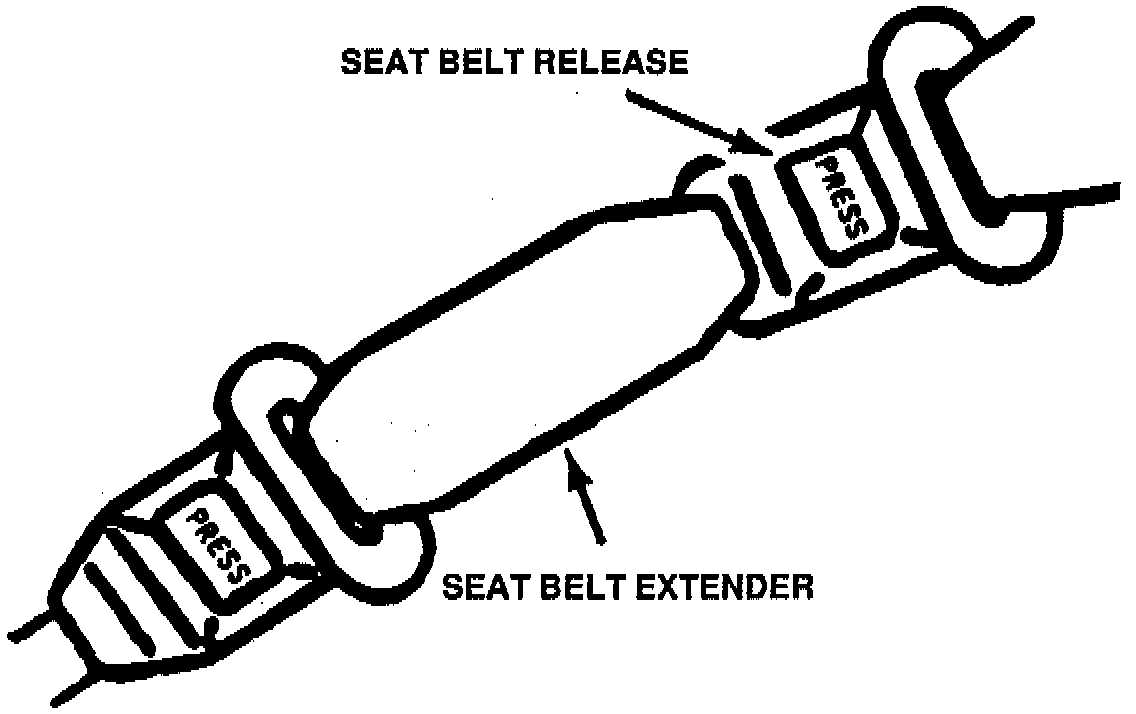

2. To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the buckle-release buttons of the extender and the seat belt are located on the same side as shown. You will hear a click when the tab locks into the buckle. Make sure that the connection is secure and the seat belt extender is not twisted.
3. When the seat belt extender is provided for rear seat position (with automatic locking retractor), make sure the retractor is locked when in use.
4. When releasing the seat belt, press on the buckle-release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extender itself.
5. When not in use, remove the extender and store in the vehicle for future use.
OWNER'S MANUAL TEXT:
SEAT BELT EXTENDER
If your seat belt cannot be fastened securely because it is not long enough, a personalized seat belt extender~is available from your Toyota dealer free of charge.
Please contact your local Toyota dealer so that the dealer can order the proper required length for the extender. Bring the heaviest coat you expect to wear for proper measurement and selection of length. Additional ordering information is available at your Toyota dealer.
CAUTION:
When using the seat belt extender, observe the following. Failure to follow these instructions could result in less effectiveness of the seat belt restraint system in case of vehicle accident, increasing the chance of personal injury.
Never use the seat belt extender if you can fasten the seat belt without it.
Remember that the extender provided for you may not be safe when used on a different vehicle, or for another person or at a different seating position than the one originally intended for.

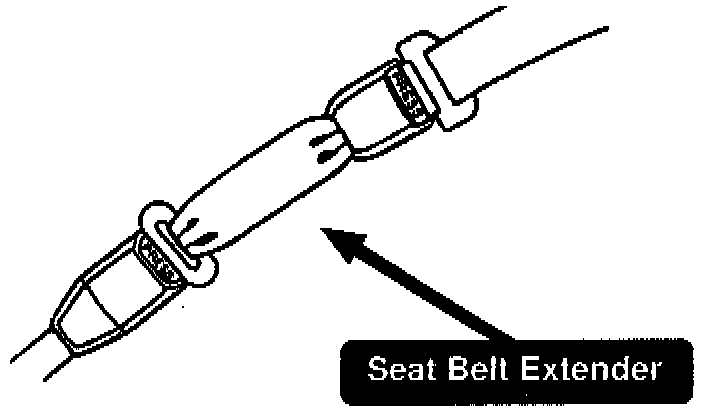

To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the "PRESS" signs on the buckle-release buttons of the extender and the seat belt are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle-release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle for future use.

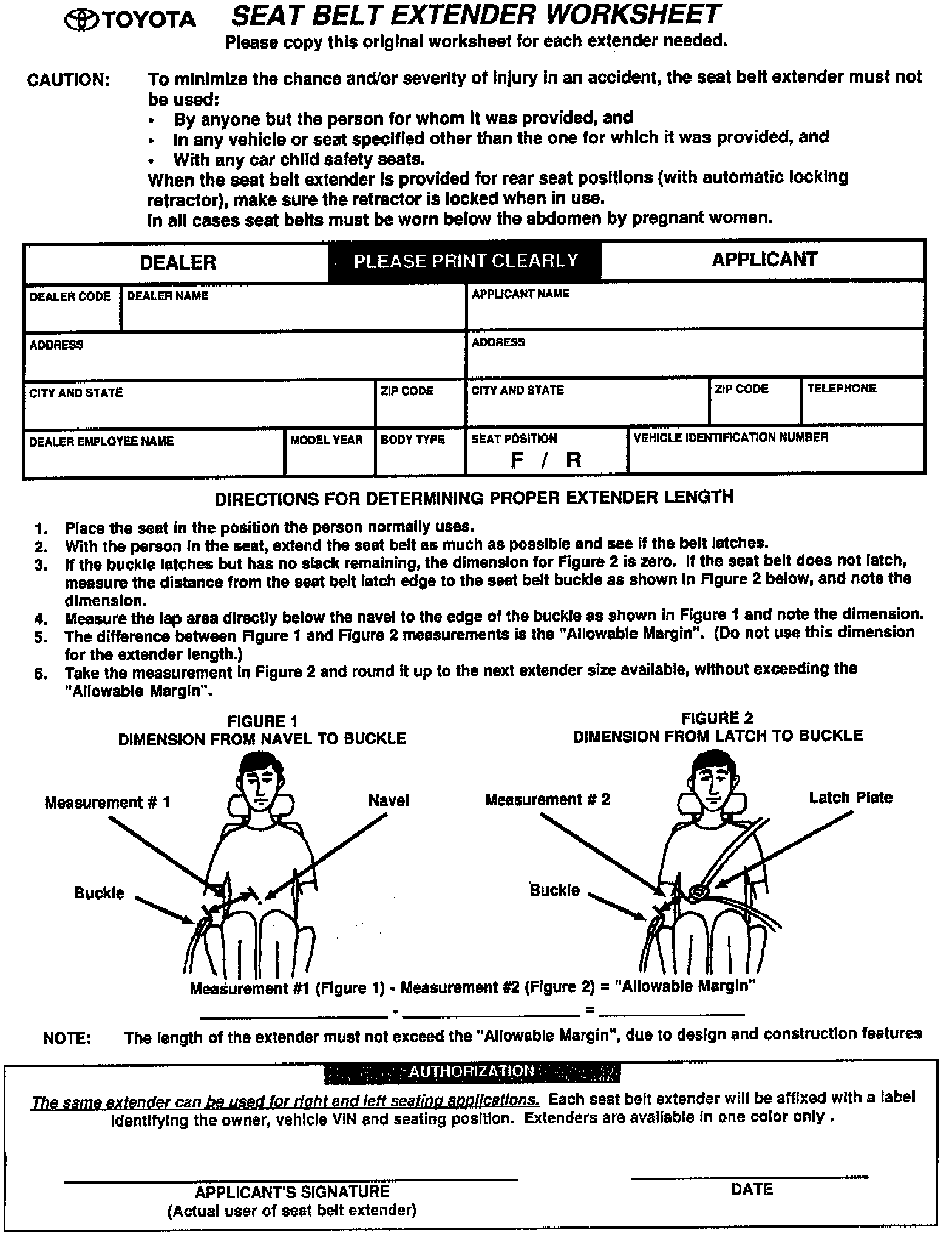

SEAT BELT EXTENDER WORKSHEET
