Seat Belts - Extender Availability.: Overview

9217toyota01

REF.: BODY

NO.: BO92-003

DATE: FEBRUARY 7,1992

MODEL: ALL MODELS


SEAT BELT EXTENDER (1982 TO 1992 MODEL YEARS)


A special procedure is available for customers who require extra length seat belts. Customers can now order seat belt extenders at no cost through their local Toyota dealer.

The extender is available in black only and in lengths of 6", 9", 12", 15" and 18".

Customers are informed of the seat belt extender availability through the Toyota Owner's Manual included in each 1987 or later vehicle.

The customer will be required to visit a Toyota Dealership to have the required measurements made and complete the application form. The completed application form will be forwarded to the TMS Customer Relations Department to order the seat belt extender (additional application forms are available through Region/Private Distributor Customer Relations Departments).


The application must be filled out completely and signed by the customer in order for TMS Customer Relations Department to process and ensure timely delivery of the extender.

Attached for your information are the following 1992 model year updated guides and examples:

^ Flow Chart
^ Seat Belt Extender Application/Part Number Chart
^ Owner Instruction Sheet
^ Statement included in Owner's Manual

The appropriate seat belt extender will be shipped to the Dealership Parts Department at no charge in about two weeks. The Service Department should complete the affixed Seat Belt Extender Label and review the owners instruction sheet with the customer.

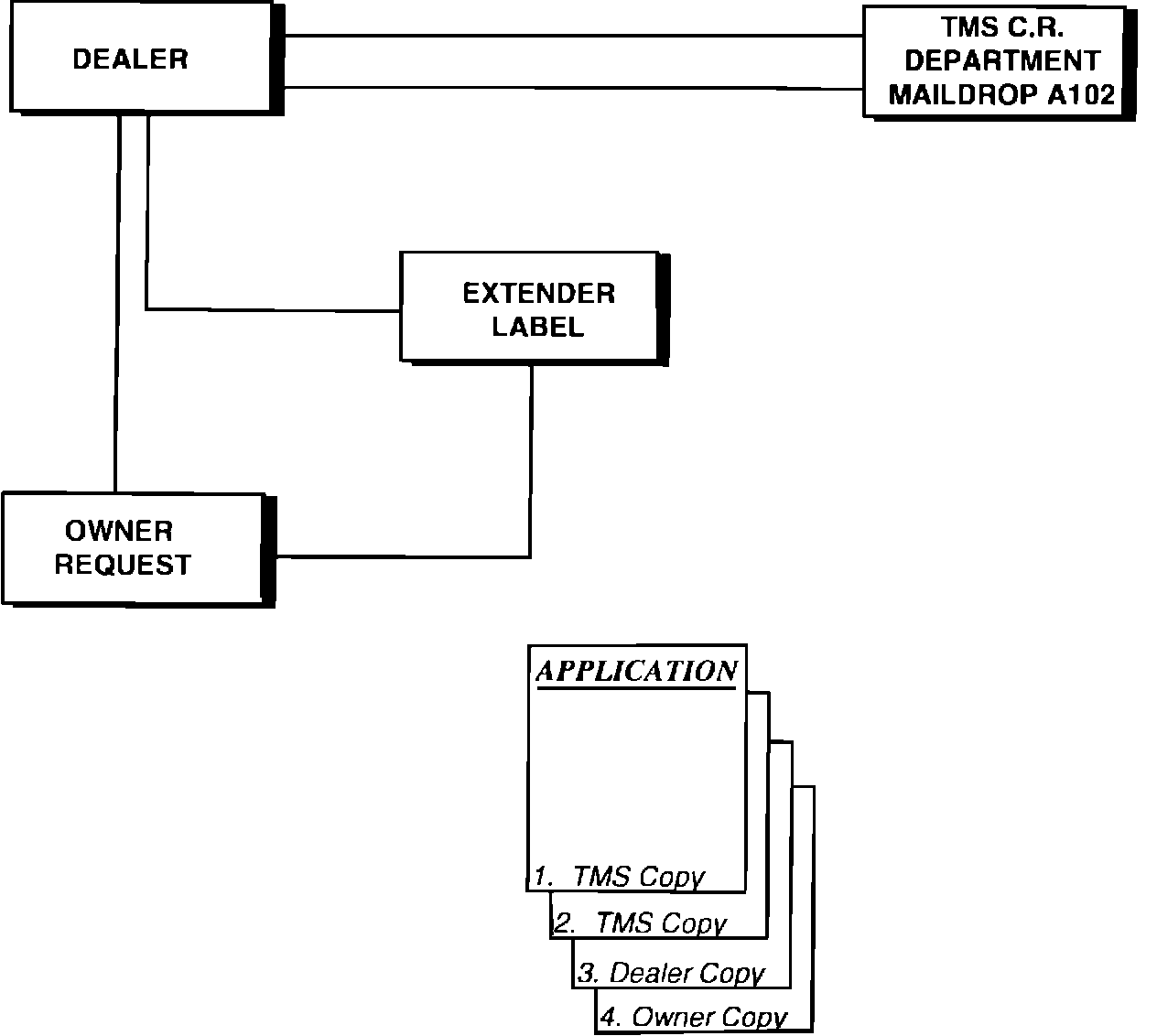

FLOW CHART


1. Owner request to dealer.

2. Dealer verifies condition and provides "Application for Seat belt Extender" to owner.

Dealer processes application form and sends it to TMS Customer Relations Department.

^ Dealer retains copies 3 & 4 to process delivery to customer.

3. TMS Customer Relations Department records application form, copies 1 & 2.
^ Retain files in computer and microfilm.
^ Triggers TMS Parts Department to ship parts to dealer.

4. Dealer records appropriate information on the label attached to the belt extender and contacts owner.

5. Dealer sends extender to owner.


To determine the proper part number, locate the "series" on the following charts then refer to the part number chart to find the appropriate part number for the "series" and length.
