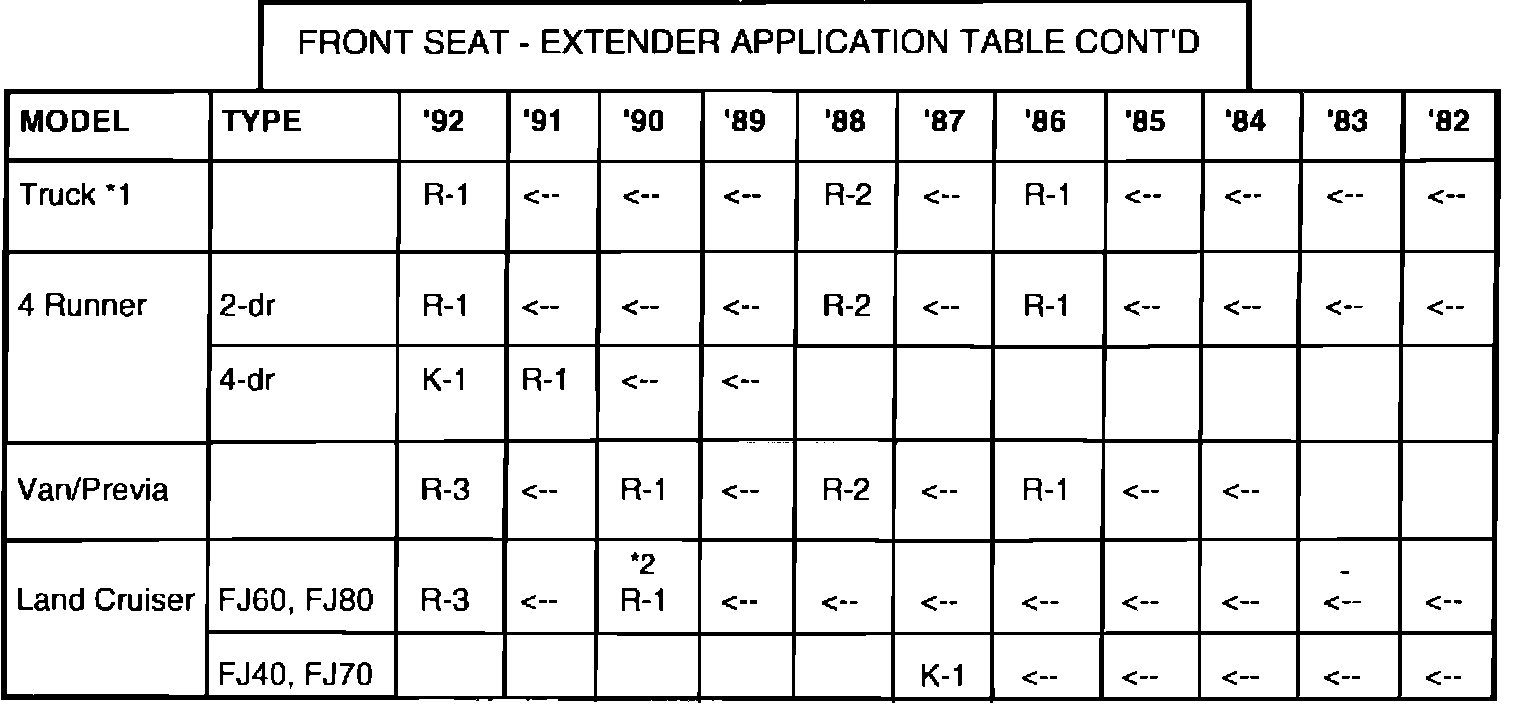

Front Seat - Extender Application Table

NOTES:

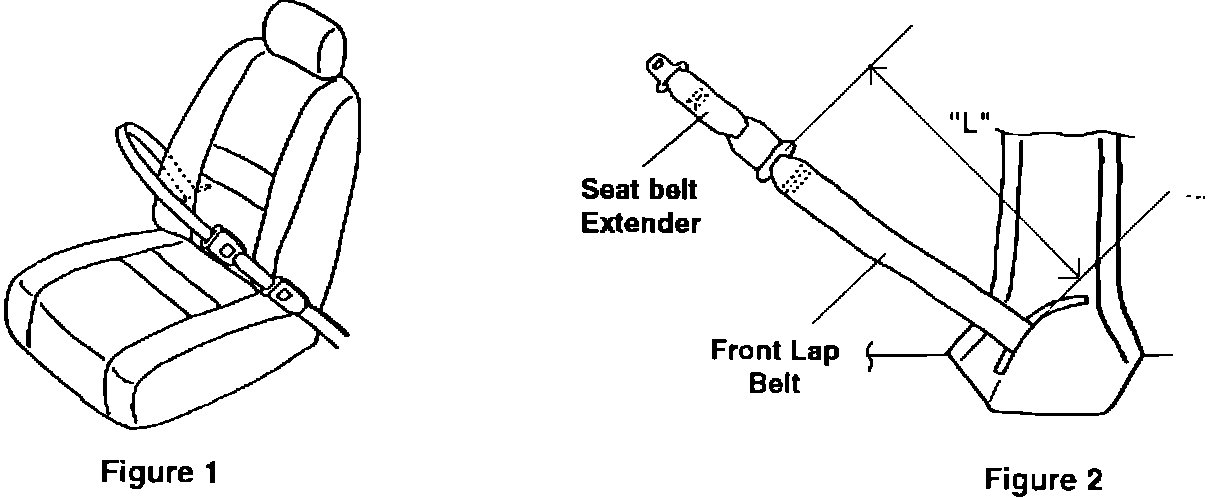

If dimension "L" is under 24 inches, the extender must be not used (see Figure 1 and 2). This applies to front lap seat belts equipped in the following models:
^ Cressida - '89,'90,'91, & '92 model years
^ Camry - '89, '90, & '91 model years
^ Corolla - on and after April, 1990 production, '91, & '92 model years
^ Tercel - '91 & '92 model years
^ Paseo - '92 model year


*1 Extender must not be used for center seat belt on Trucks equipped with bench seats.

*2 R-3 must be used for Land Cruiser (FJ80) produced on and after January, 1990.

Note: The front lap belt for all '90 Corolla models and the '90 Tercel is the ALR type. Make sure the ALR is locked when the extender is used.
