Control Module HVAC: Locations

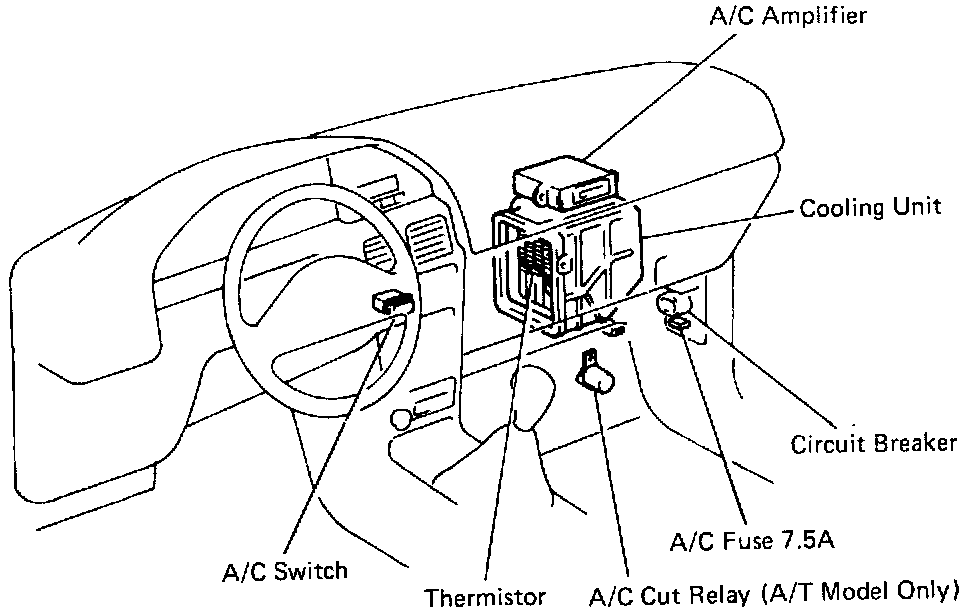

Underdash AC Components:






Located on top of the evaporator housing, passenger's side underdash.
