Condenser Fan Motor Relay: Locations

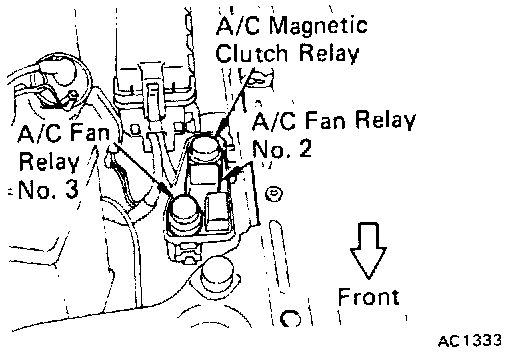

AC System Relay Locations:






Located in the relay box next to the battery, driver's side of the engine compartment.
