Fuel - Poor Engine Idle With The A/C ON

89toyota03

HEATING & AIR
REFERENCE CONDITIONING
NUMBER 005
DATE 05-12-89
MODEL AE98C (88 & 89)

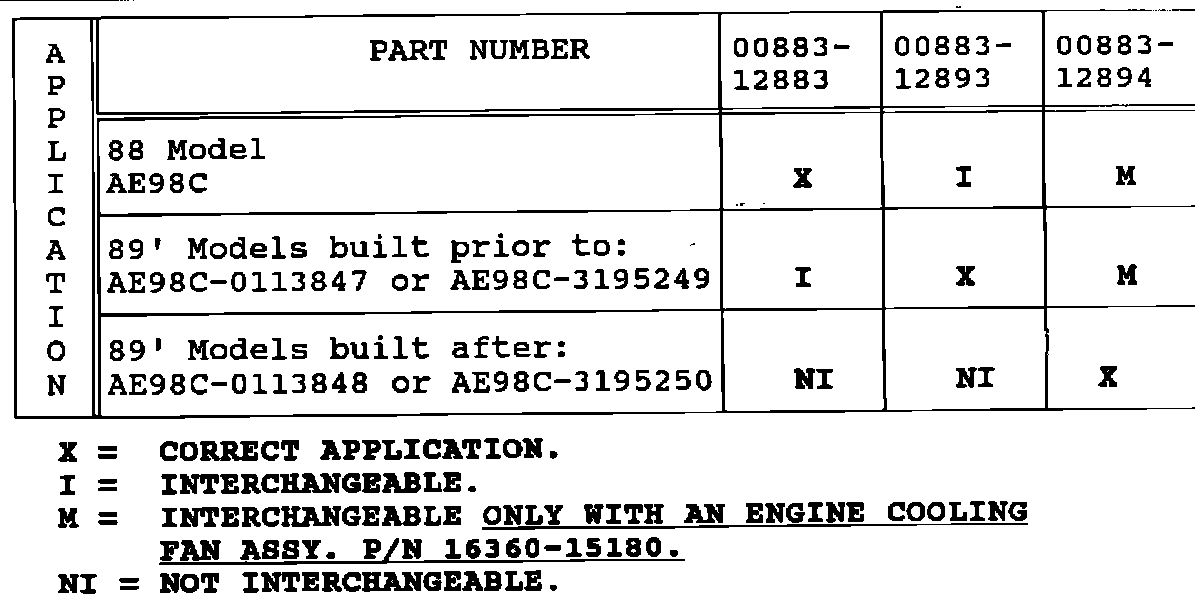

A/C KIT APPLICATION AND INTERCHANGEABILITY CHART:

TITLE COROLLA GTS AIR CONDITIONING PRODUCTION CHANGE


For smoother engine idle under high ambient temperatures with the A/C ON, the following production change has taken place:

1) A/C idle up speed increased (see page 2).
2) A/C compressor was changed from a TV14 to TV12 type.
3) Engine cooling fan power from 45W to 120W.
4) Condenser fin pitch from 3.6 mm to 3.3 mm.

PRODUCTION CHANGE INFORMATION:

Starting VIN Production Effective
JT2AE98C*K0113848 October, 1988
JT2AE98C*K3195250 October, 1988
FIELD FIX FOR VEHICLES BUILT PRIOR TO 10/88 With A/C


For smoother idle with the A/C on at high ambient temperatures on vehicles built prior to October, 1988, use the following procedure.

^ Install the following components:

PART NUMBER INFORMATION

New Part # Part Name Comments

88460-12400 Condenser Assy. 3.3 mm fin pitch

88320-16120-84* Comp. Assy w/PS TV12

16360-15180 E/G Cooling Fan 120W E/G cooling
Assy. fan assy.

* When following this procedure the old TV14 type compressor is an acceptable core.

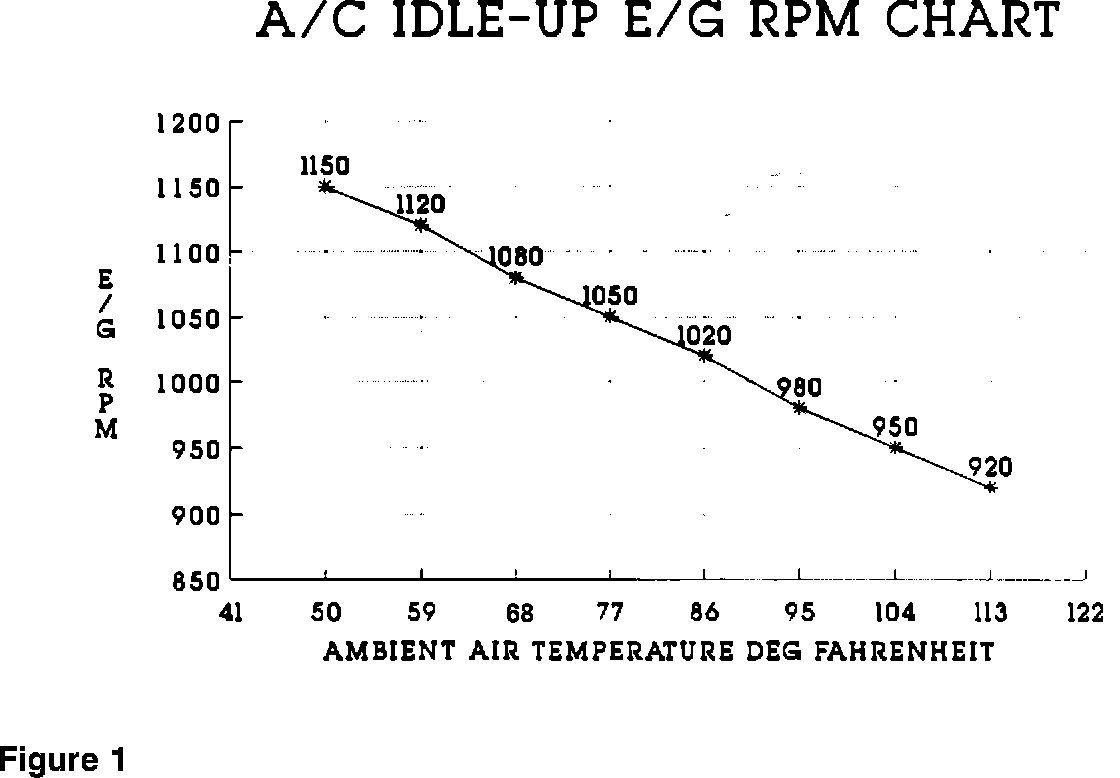

A/C IDLE-UP E/G RPM CHART:

^ Adjust A/C idle-up engine RPM based on the ambient temperature (please refer to chart.).

SERVICE PART NUMBER INFORMATION

Service part numbers for the new style 120W E/G cooling fan assembly listed below:


New Part # Part Name Comments

16361-63020 Fan Service part for
120W fan assy.

16363-64030 Motor, cooling Service part for
fan 120W fan assy.

16711-15240 Shroud, fan Service part for
120W fan assy.
