Spark Plug: Service and Repair

Ignition Wire Removal:

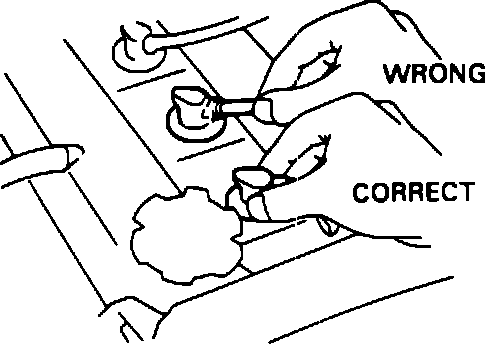

1. Remove ignition wires from spark plugs.

2. Using a properly sized spark plug socket, remove spark plugs from cylinder head.

3. Using a suitable gapping tool, adjust spark plug gap.

Spark Plug Gap: 0.043 in (1.1 mm)

4. Apply a light coat of anti-seize compound to threads of spark plugs.

5. Using a properly sized spark plug socket, install spark plugs.

Torque Value: 13 ftlb (18 Nm)

6. Reconnect spark plug wires to the appropriate spark plug. Ensure proper firing order.

Firing Order: 1 - 3 - 4 - 2
