Initial Inspection and Diagnostic Overview

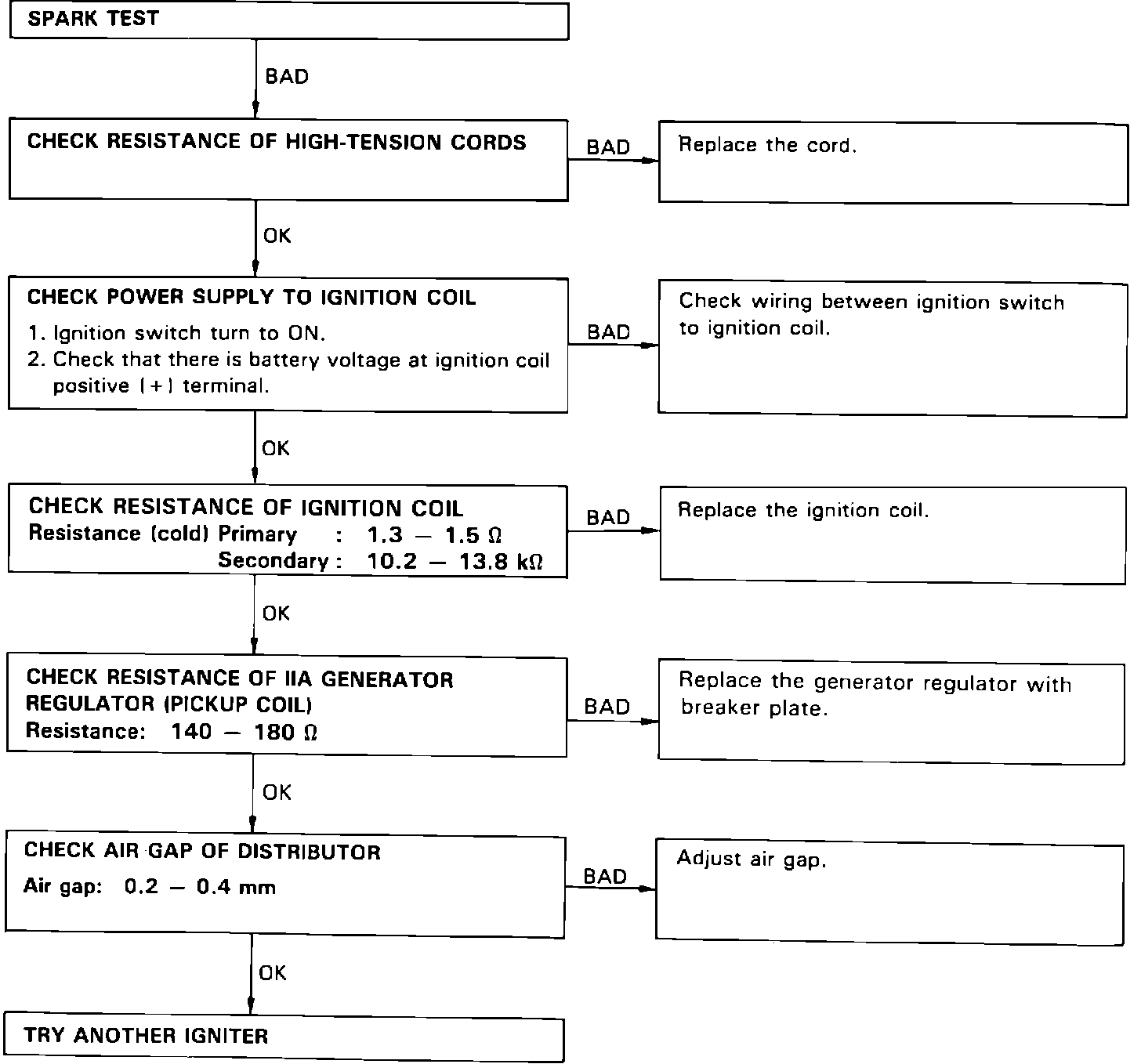

4A-F ENGINE:
Spark Test:

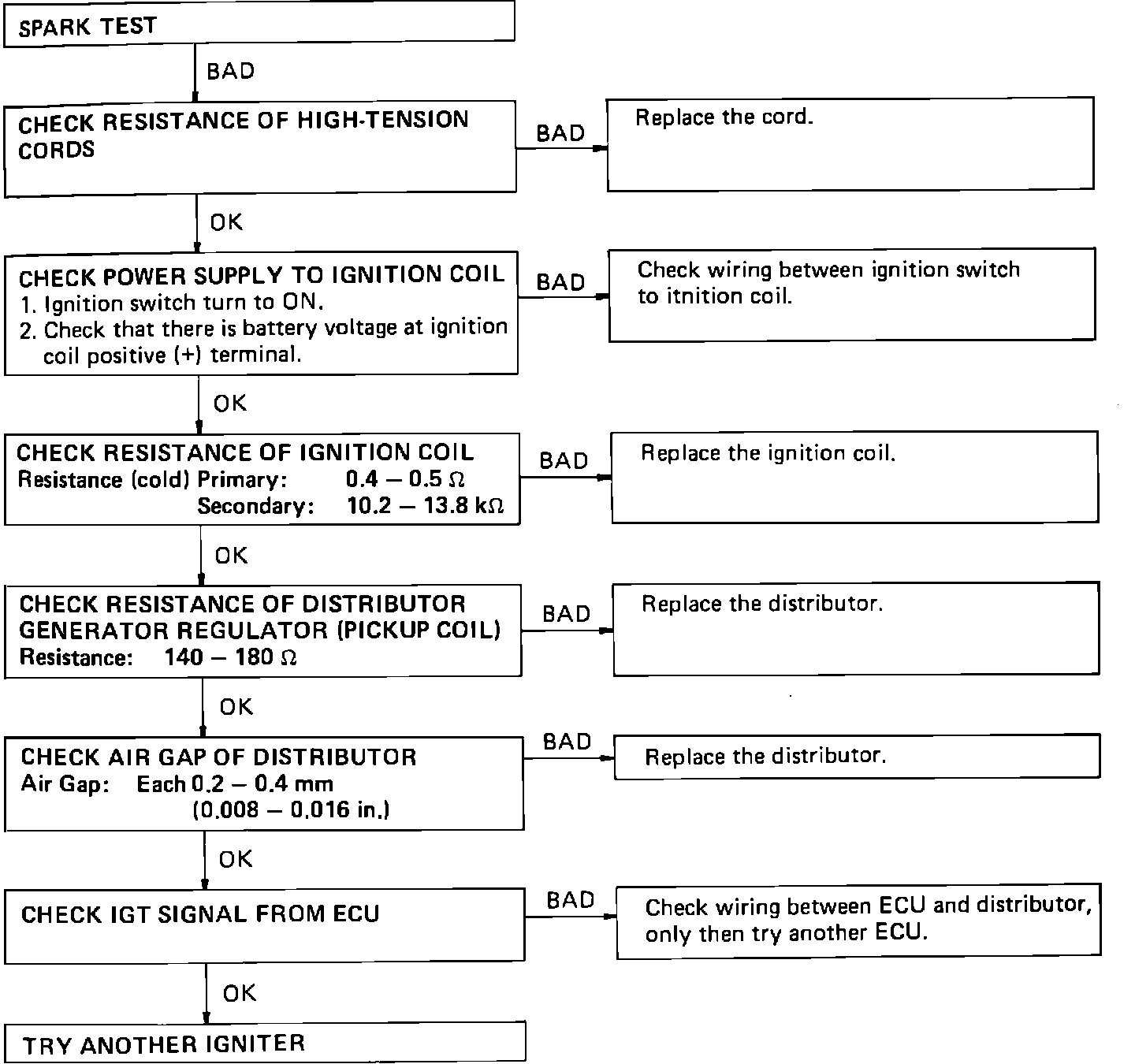

4A-FE ENGINE:
Spark Test:

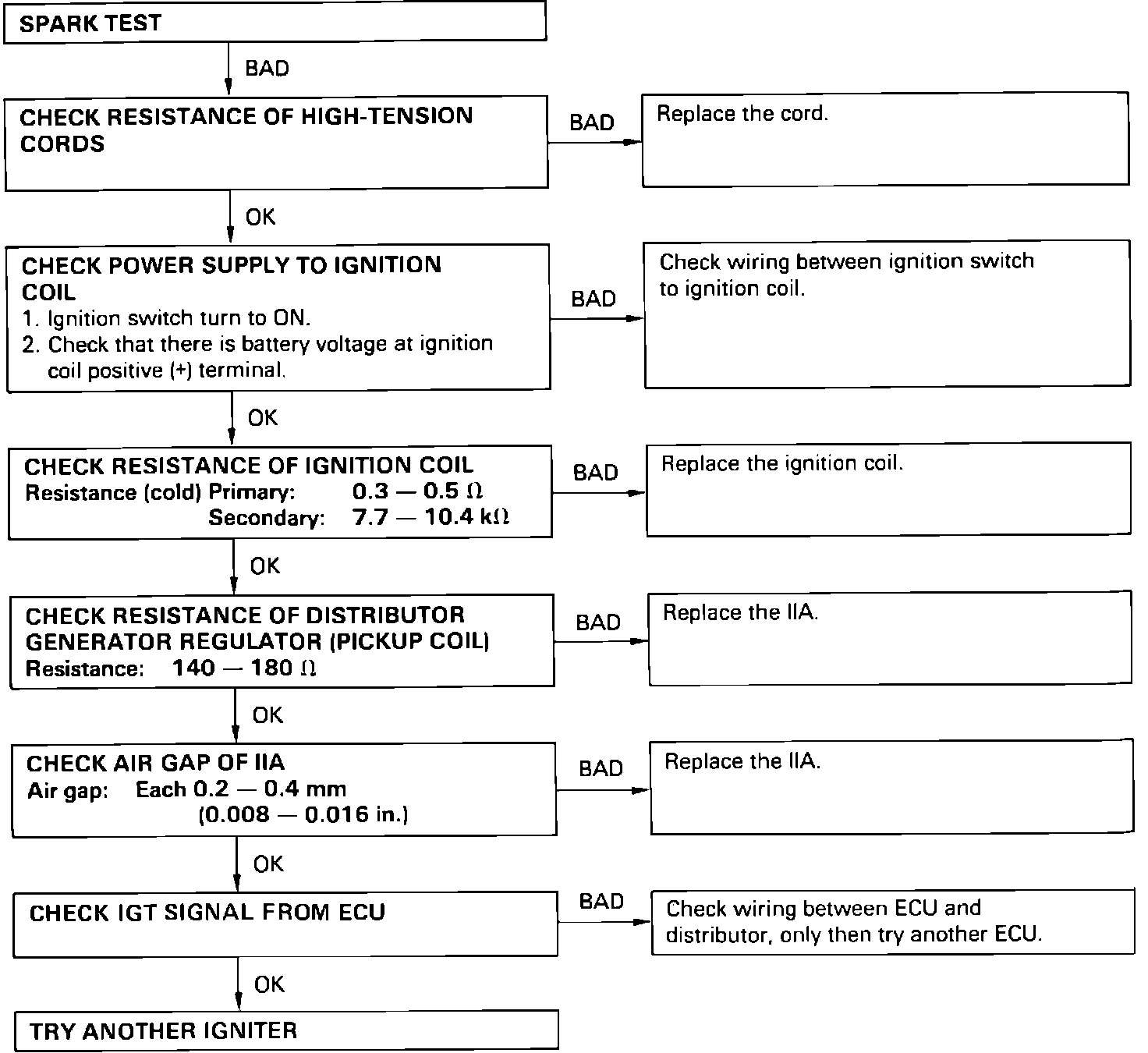

4A-GE ENGINE:
Spark Test:
