Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Testing and Inspection
>>
Circuit Test
Circuit Test

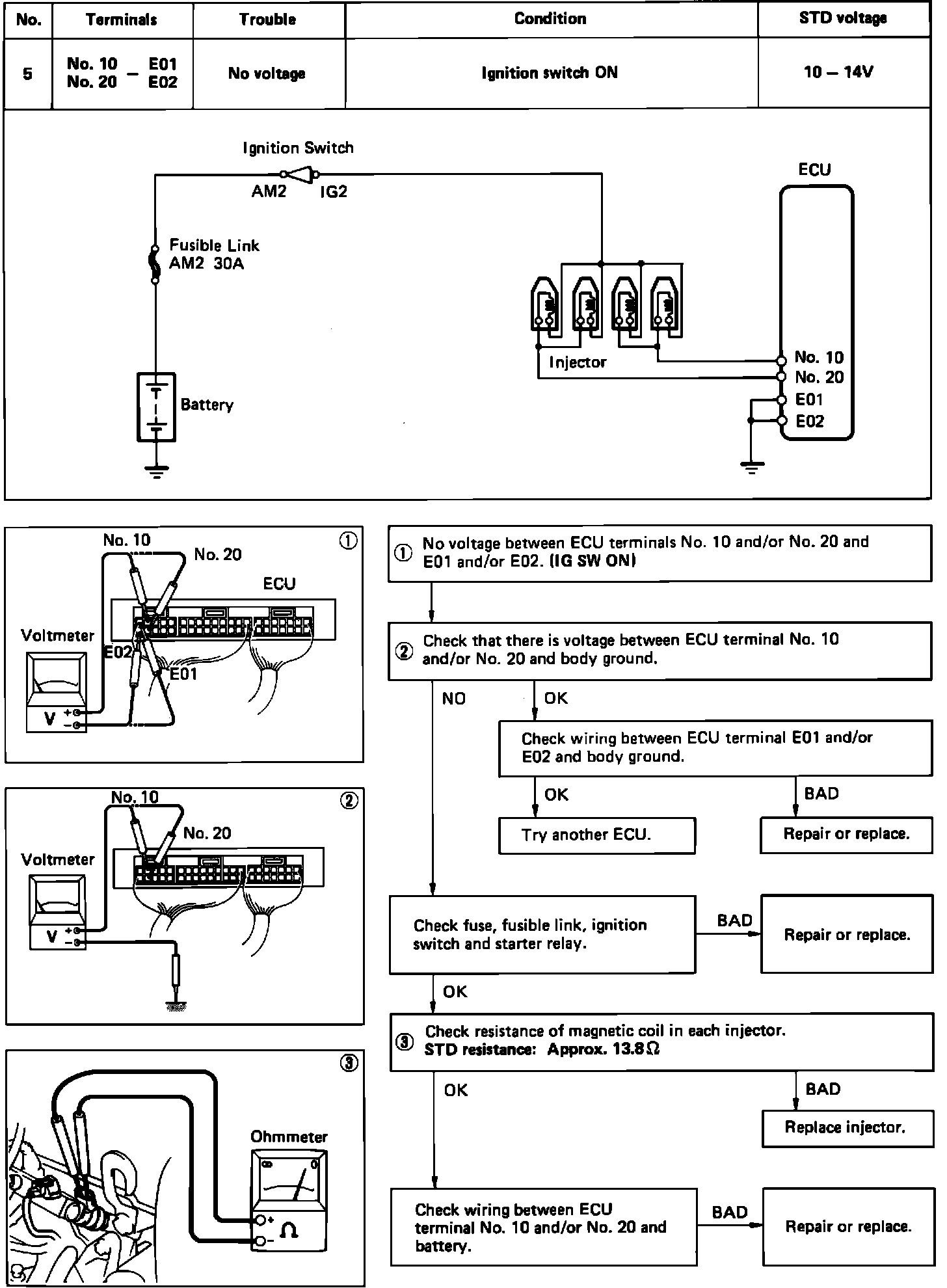

Fuel Injector Circuit Test:
