Cold Start Injector: Locations

AIR CLEANER:
The air cleaner is located on the top, RH side of the engine.

AUTOMATIC ELECTRIC CHOKE:
Located on the carburetor.

AUXILIARY ACCELERATION PUMP (AAP):

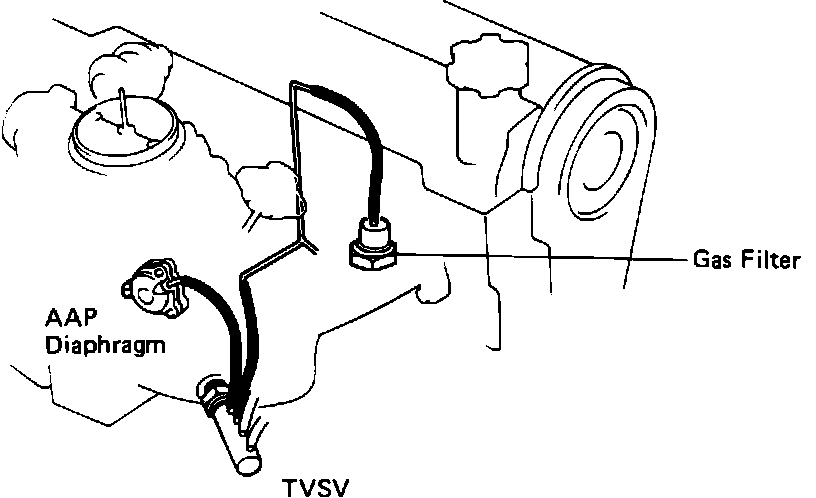

Auxiliary Acceleration Pump (AAP) System:

Located on the carburetor.

CHOKE BREAKER (CB):

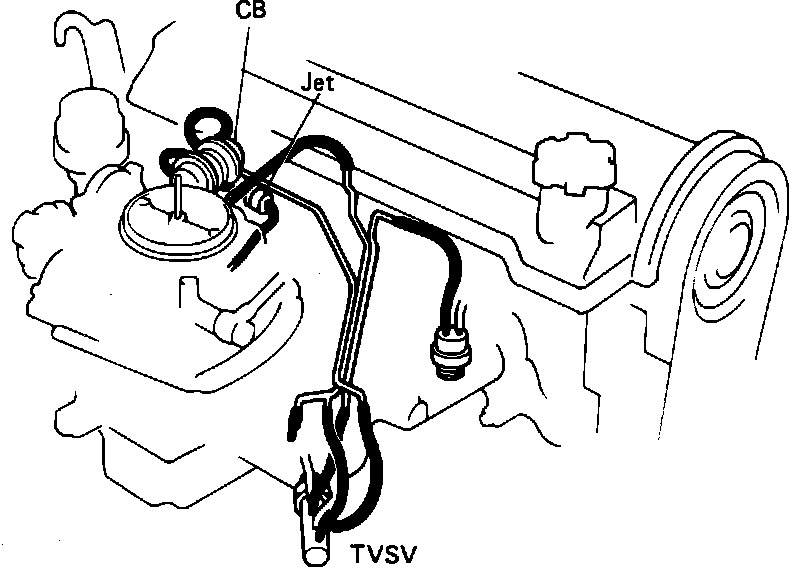

Choke Breaker (CB) System:

Located on the carburetor.

CHOKE OPENER:

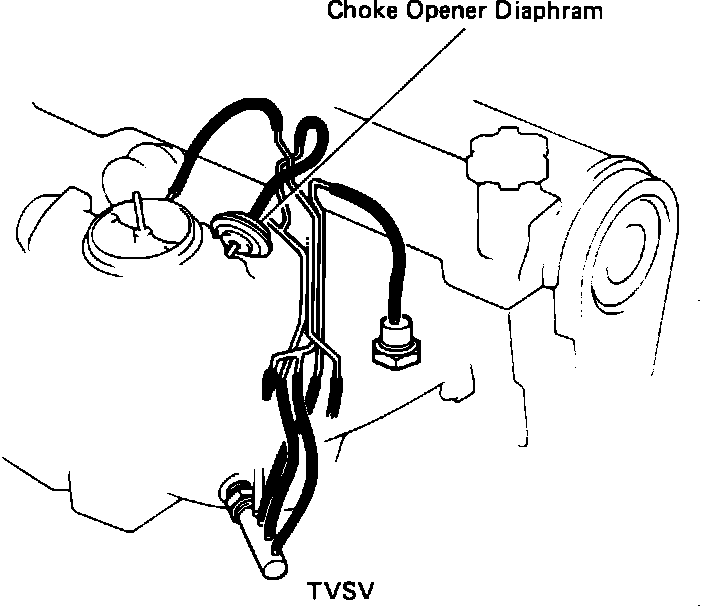

Choke Opener System:

Located on the carburetor.

FUEL-CUT SOLENOIDS:
Located on the carburetor.

FUEL FILTER:
The fuel filter is located in the rear, center of the engine compartment, on the firewall.

FUEL PUMP:

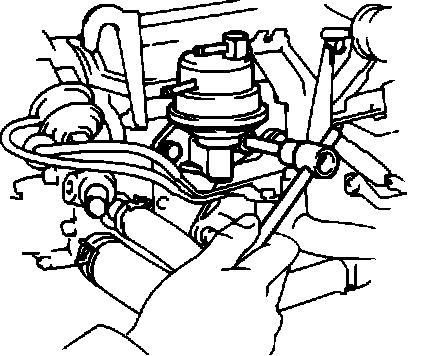

Removing Fuel Pump:

The mechanical fuel pump is located on the rear, RH side of the cylinder head.

FUEL TANK:
The fuel tank is located under the rear of the vehicle.

THERMAL VACUUM SWITCHING VALVE (TVSV):
The TVSV is located on the front RH side of the engine, in the intake manifold.

THROTTLE POSITIONER (TP):

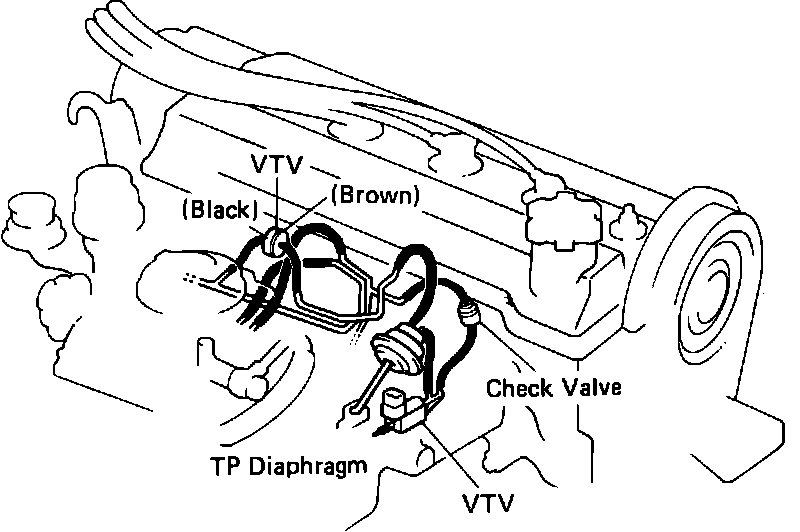

Fig. 24 Throttle Positioner System:

Located on the carburetor.

THROTTLE POSITION SWITCH:

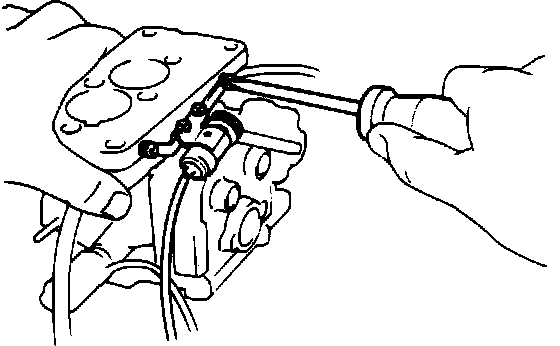

Removing Throttle Position Switch:

Located on the carburetor.
