Positive Crankcase Ventilation: Locations

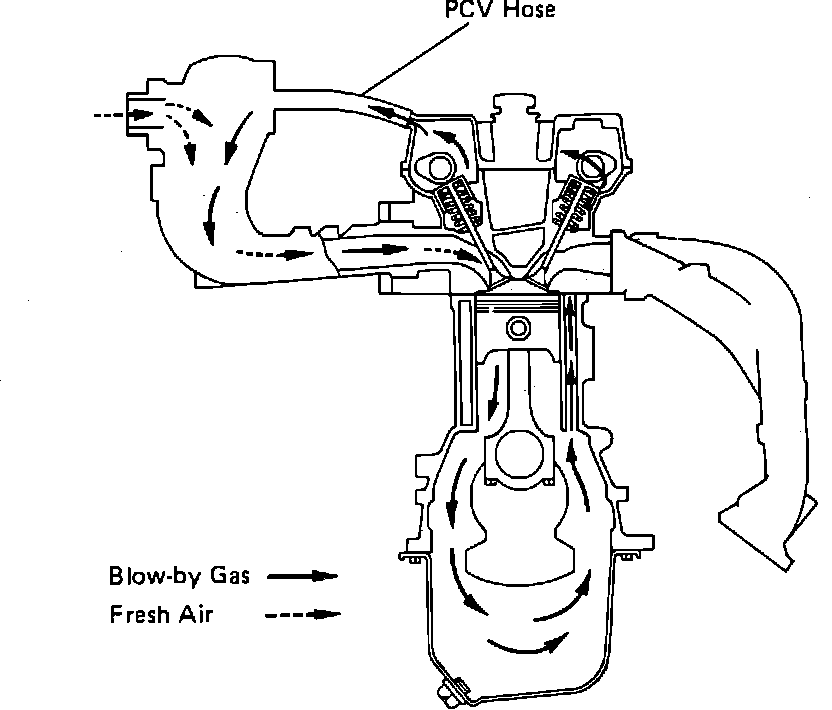

Positive Crankcase Ventilation System:





PCV Ventilation Hose: Top of engine, between valve cover and intake manifold
