Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Vacuum and Vapor Hose Schematic

Vacuum and Vapor Hose Schematic

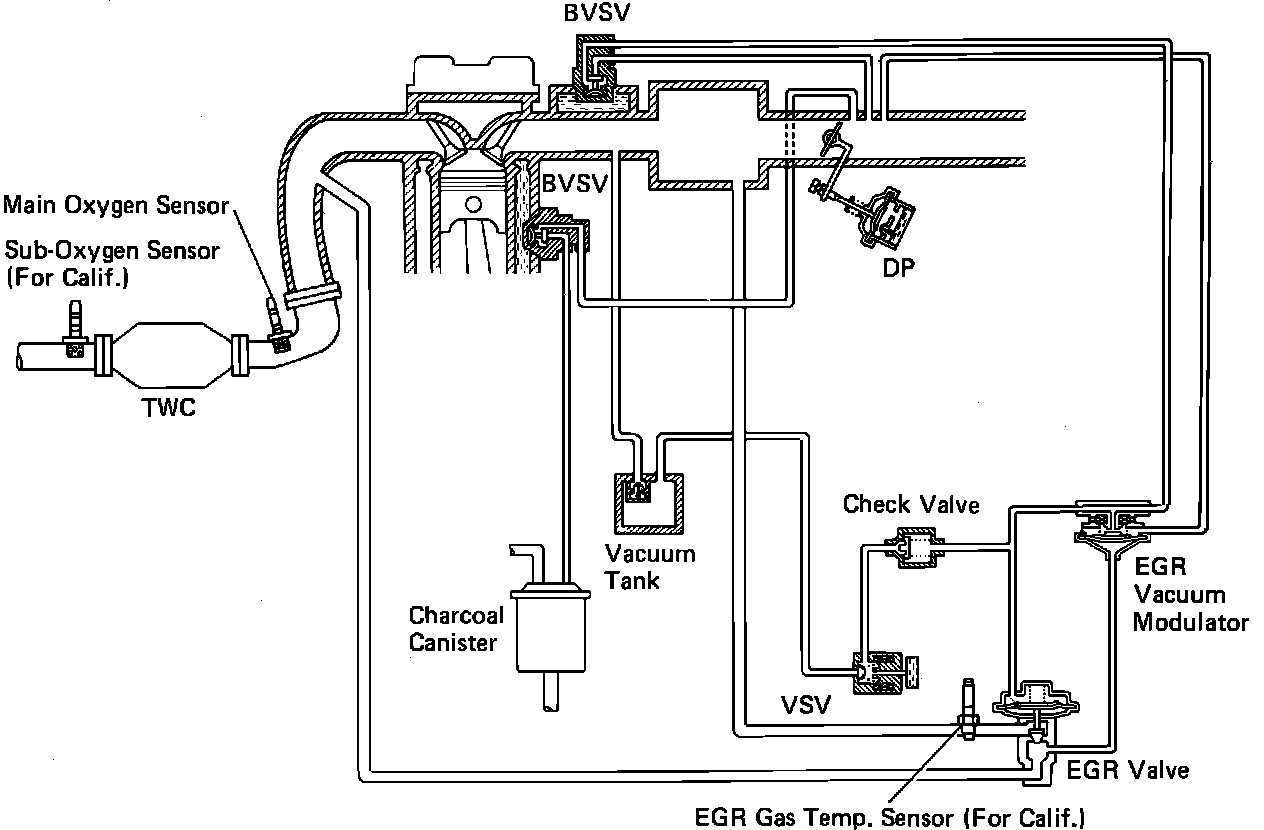

Fig. 164 Vacuum And Vapor Hose Schematic:
