Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Backfires >> Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire

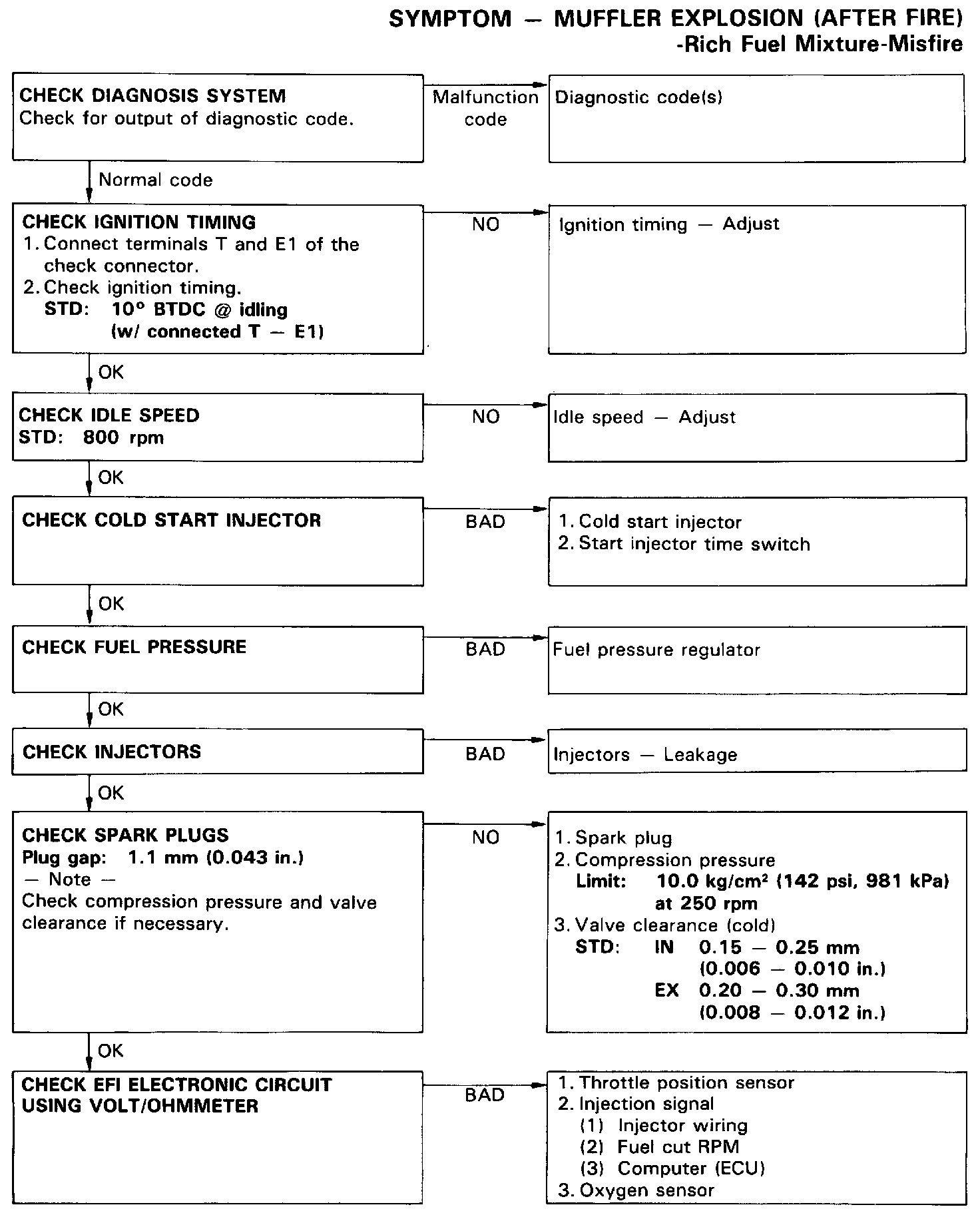

Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire
