4A-GE Engine (Fuel Injected)
>>
System Circuit Test
System Circuit Test

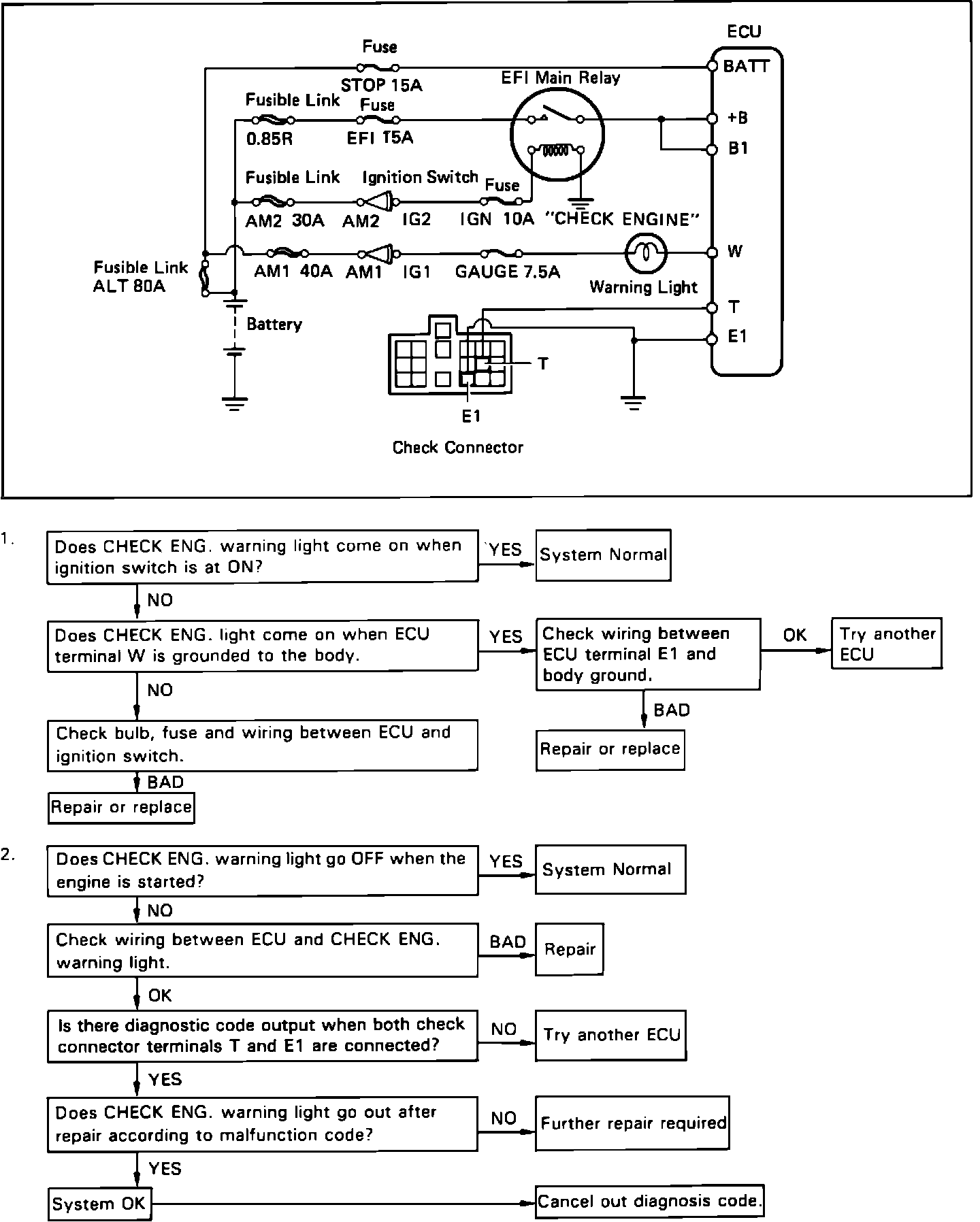

On-Board Diagnostics Circuit Test:
