Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Testing and Inspection
>>
4A-F Engine (Carbureted)
>>
"Check Engine" Light Circuit Test
"Check Engine" Light Circuit Test

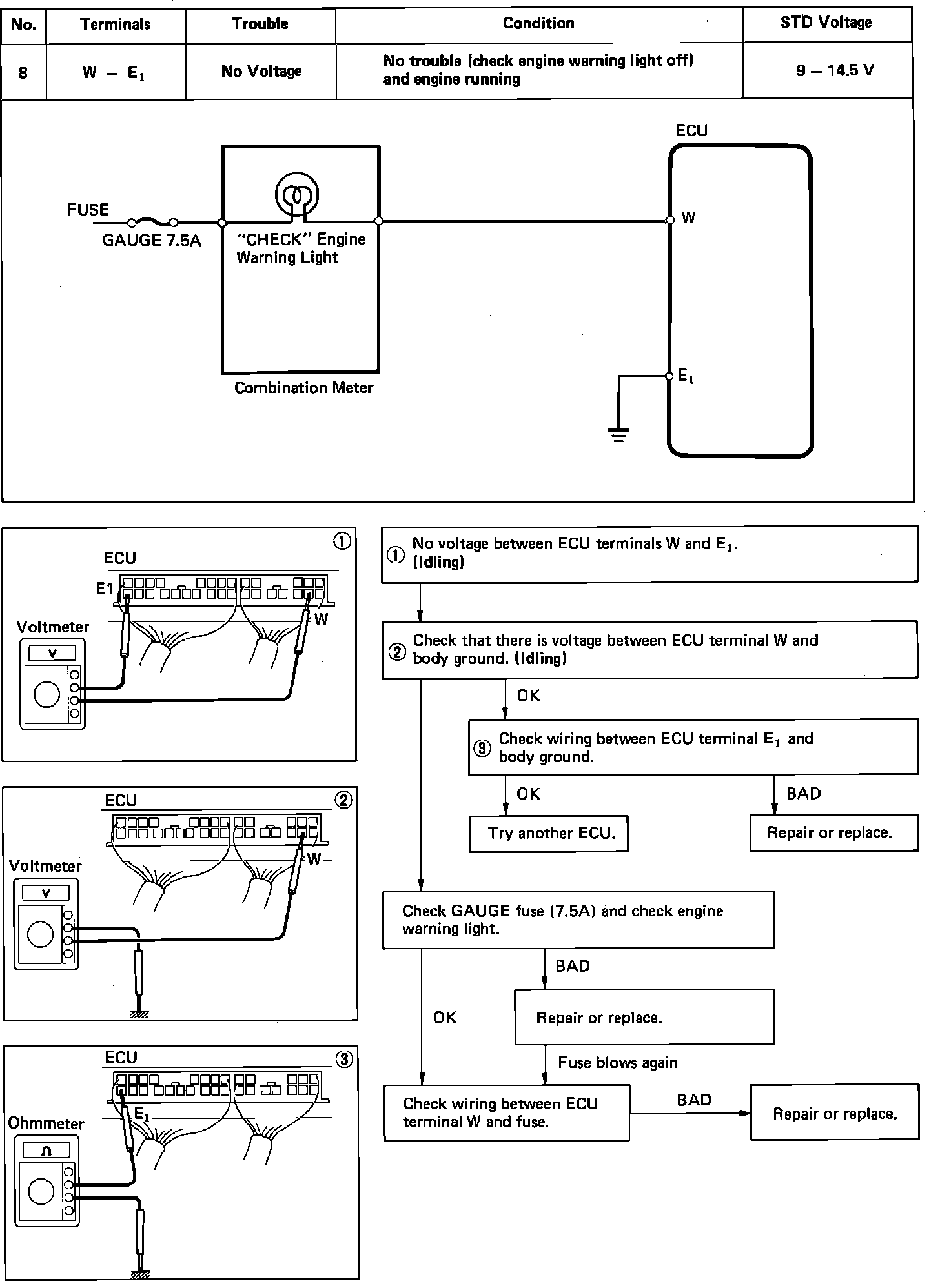

"Check Engine" Warning Light Circuit Test:
