Component Locations

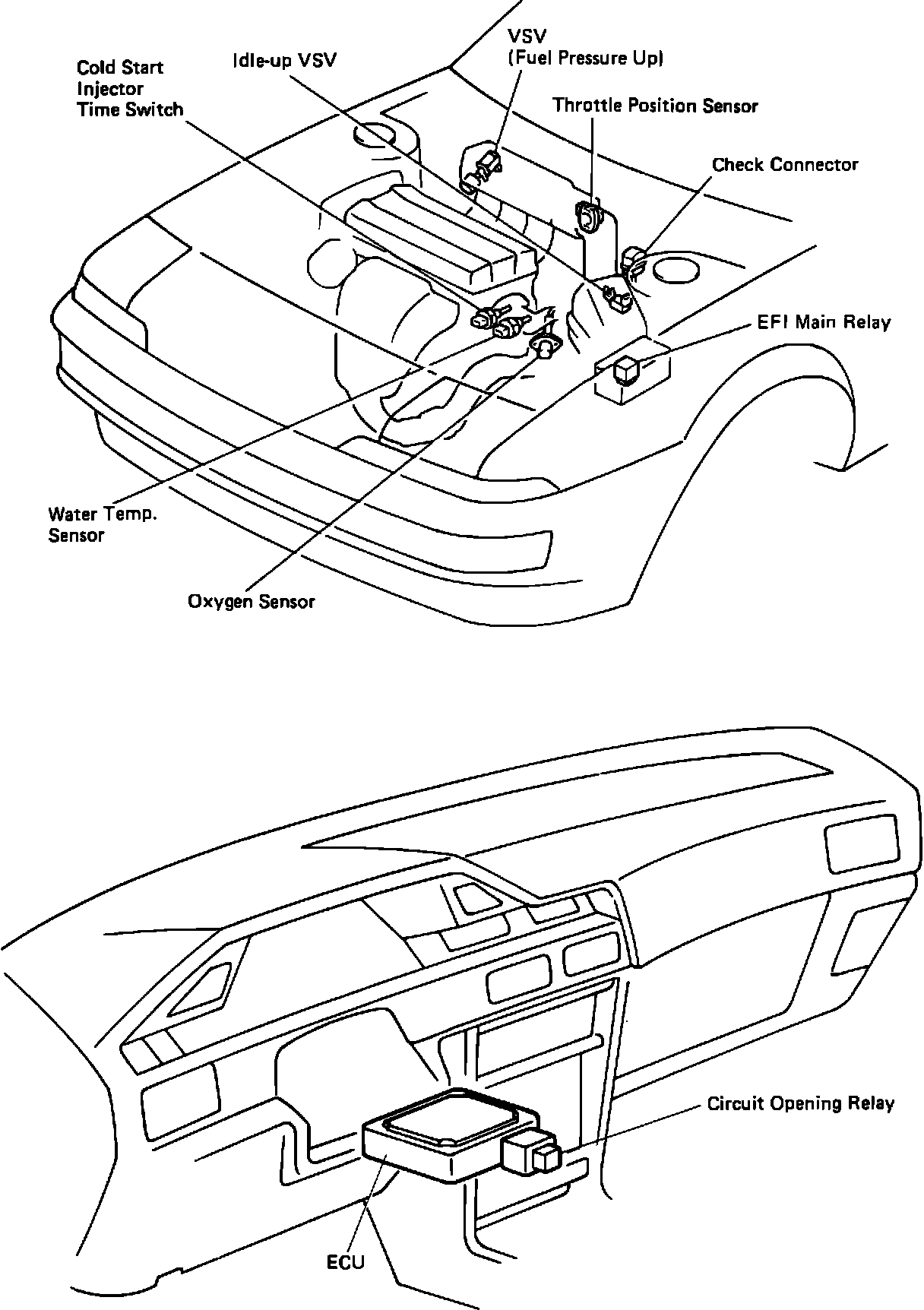

CEC Component Locations:

Electronic Control Unit (ECU)
The ECU is located at center beneath the dash.

Diagnostic Check Connector
The diagnostic check connector is located on the left side of the engine compartment adjacent to the strut tower.

Air Flow Meter
The air flow meter is located on the left side of the engine compartment.

EGR Temperature Sensor (California only)
The EGR temperature sensor is located below the EGR valve.

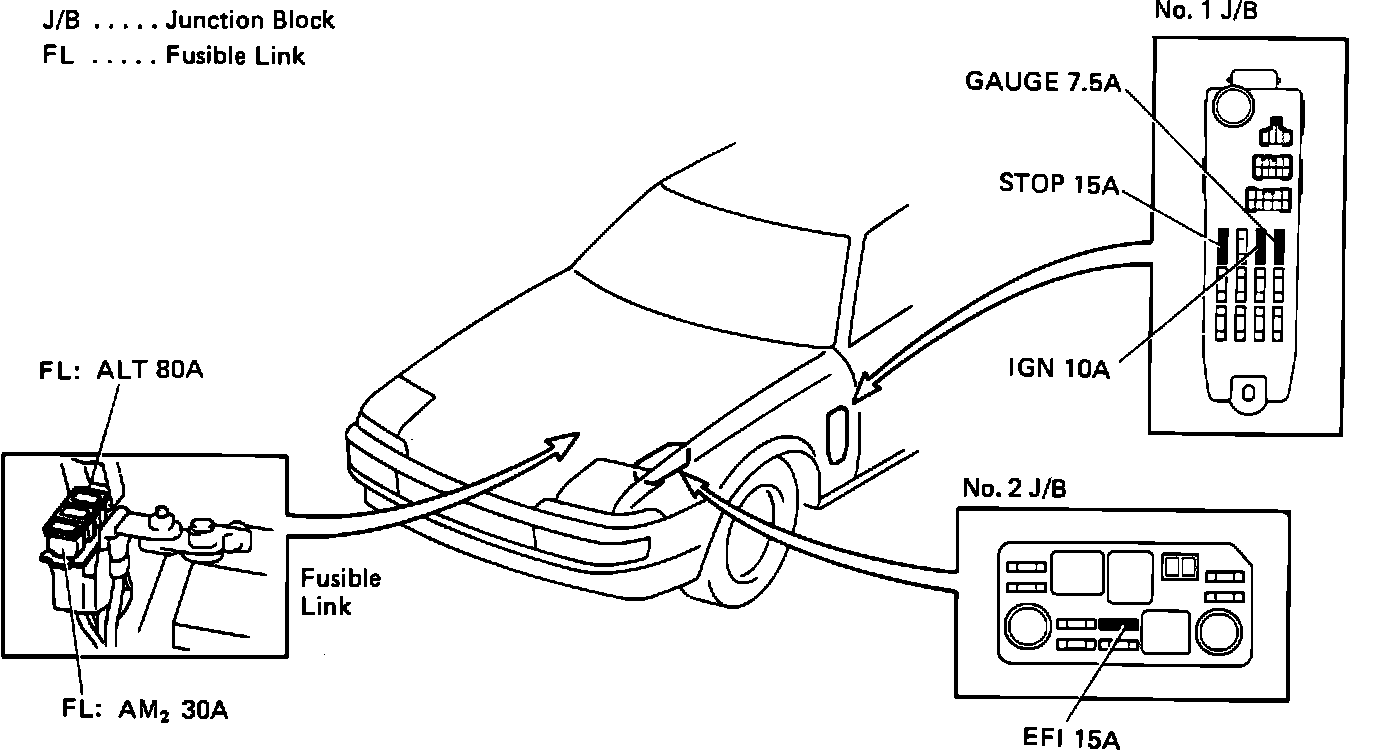

FUSES AND FUSIBLE LINKS

Location Of Fuses And Fusible Links:
