Turn Signal
Turn Signal

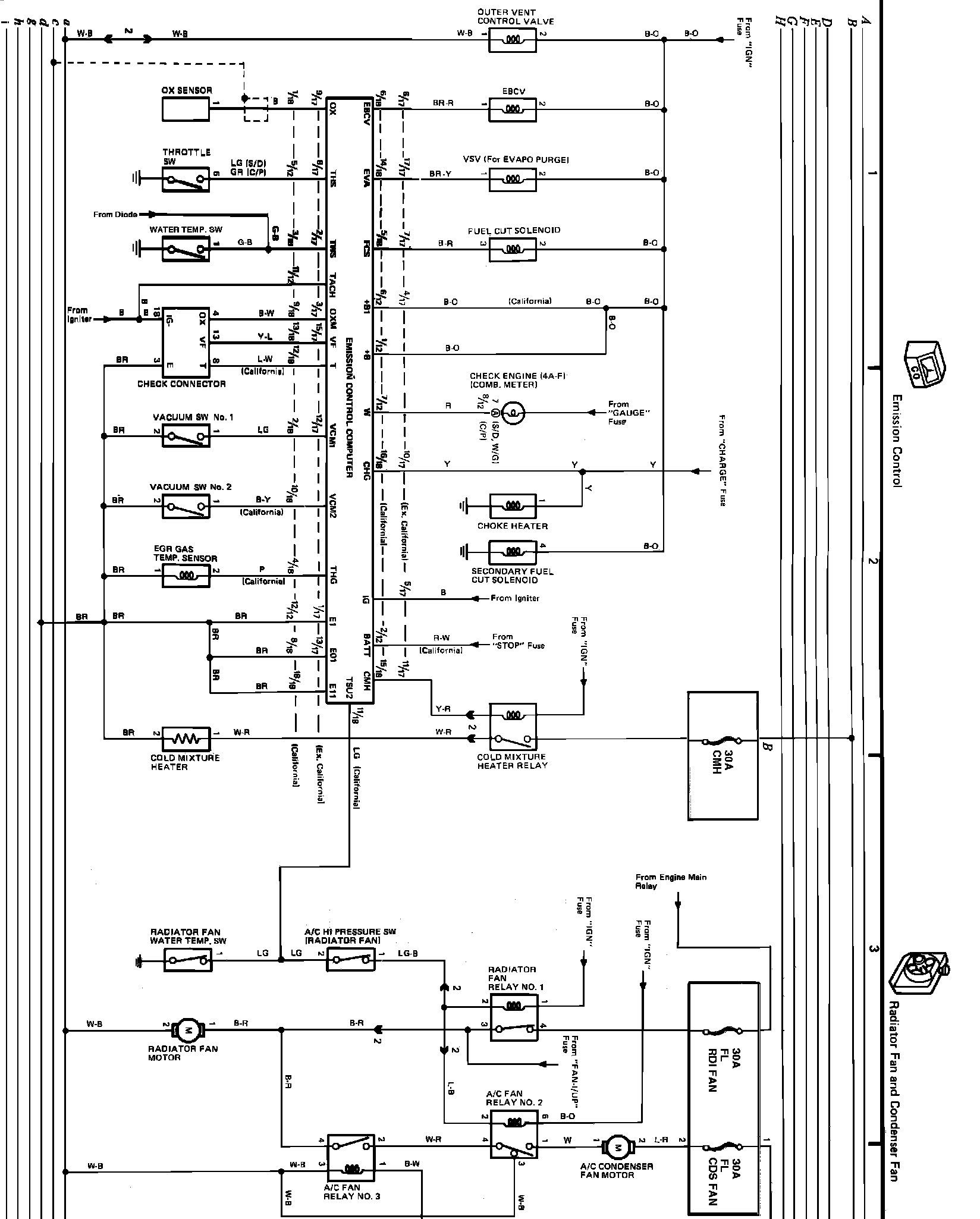

�mQE�QEmission Control, Radiator, Condenser Fan, Air Conditioner, Heater, Turn Signal And Hazard Wiring Circuits:
Power Source:
