Receiver Dryer: Locations

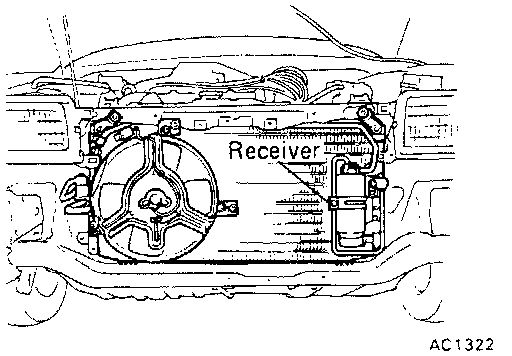

Receiver Drier Location:






Located in front of the condenser, driver's side of engine compartment.
