Timing Components: Testing and Inspection

INSPECT TIMING BELT

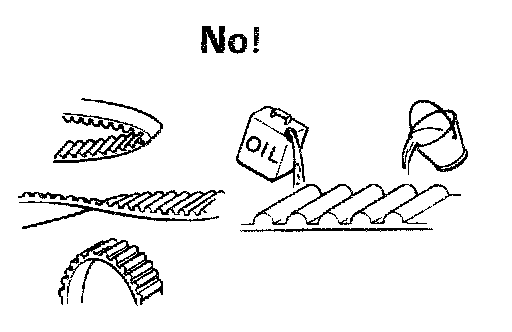

CAUTION:
^ Do not bend, twist or turn the timing belt inside out.
^ Do not allow the timing belt to come into contact with oil, water or steam.
^ Do not utilize timing belt tension when installing or removing the mount bolt of the camshaft timing pulley.

If there are any defects found, check the following points:

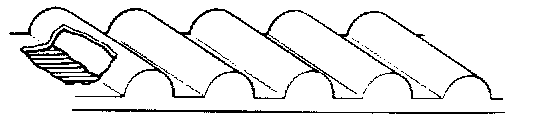

1. Premature parting
^ Check for proper installation.
^ Check the timing cover gasket for damage and proper installation.

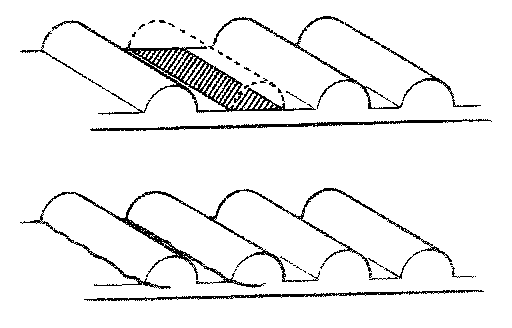

2. If the belt teeth are cracked or damaged, check to see if either the camshaft or water pump is locked.

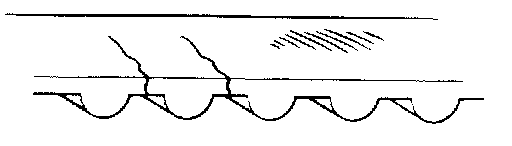

3. If there are cracks or noticeable wear on the belt face, check to see if there are the nicks on the side of the idler pulley lock.





4. If there is wear or damage on only one side of the belt, check the belt guide and the alignment of each pulley.





5. If there is noticeable wear on the belt teeth, check timing cover for damage and check for correct gasket installation. Check for foreign material on the pulley teeth. If necessary, replace the timing belt.

INSPECT IDLER PULLEY

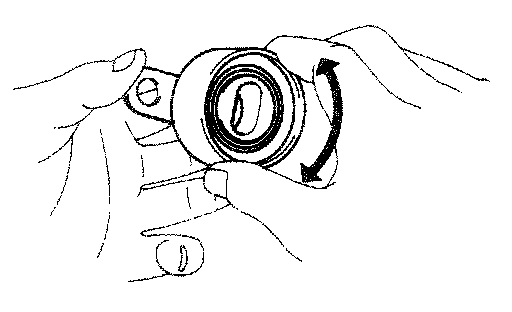

1. Check the turning smoothness of the idler pulley if necessary, replace the idler pulley.

INSPECT TENSION SPRING

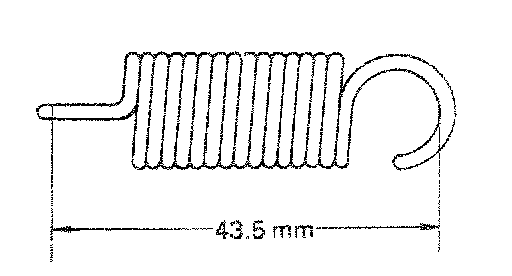

1. Measure the free length of the tension spring.

Free length: 43,5 mm (1.713 in.)

If the free length is not as specified, replace the tension spring.

2. Measure the tension of the tension spring at the specified installed length.

Installed tension: 9.97 kg (22.0 lb. 98 N.m) at 50.2 mm (1.976 in.)

If the installed tension is not as specified, replace the tension spring.
