Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Four-Wheel Drive System
Four-Wheel Drive System

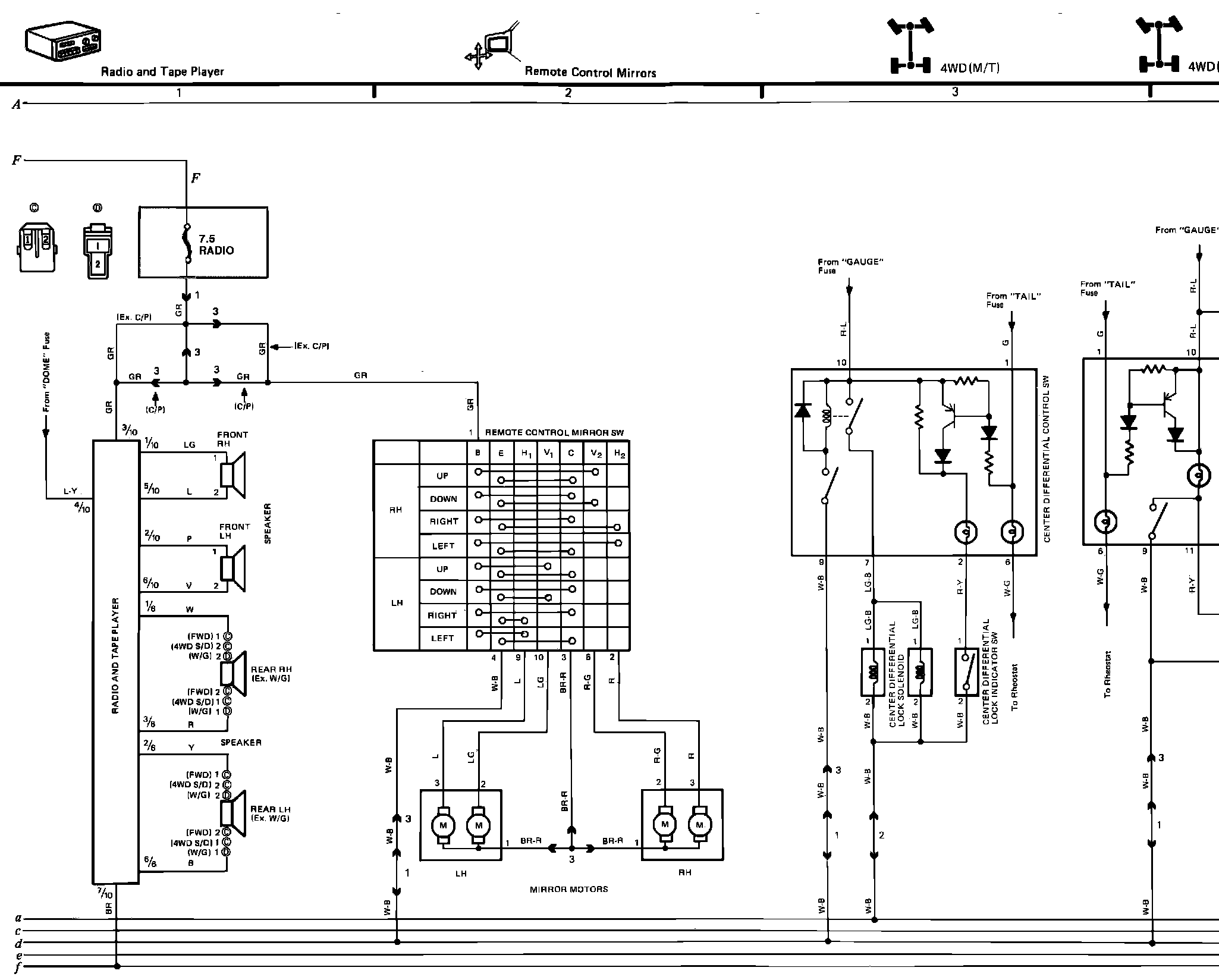

@��� �Radio/Tape Player, Remote Control Mirrors, 4 Wheel Drive, Computer Control, Ignition, Idle-Up And Horn Wiring Circuits:
Power Source:
